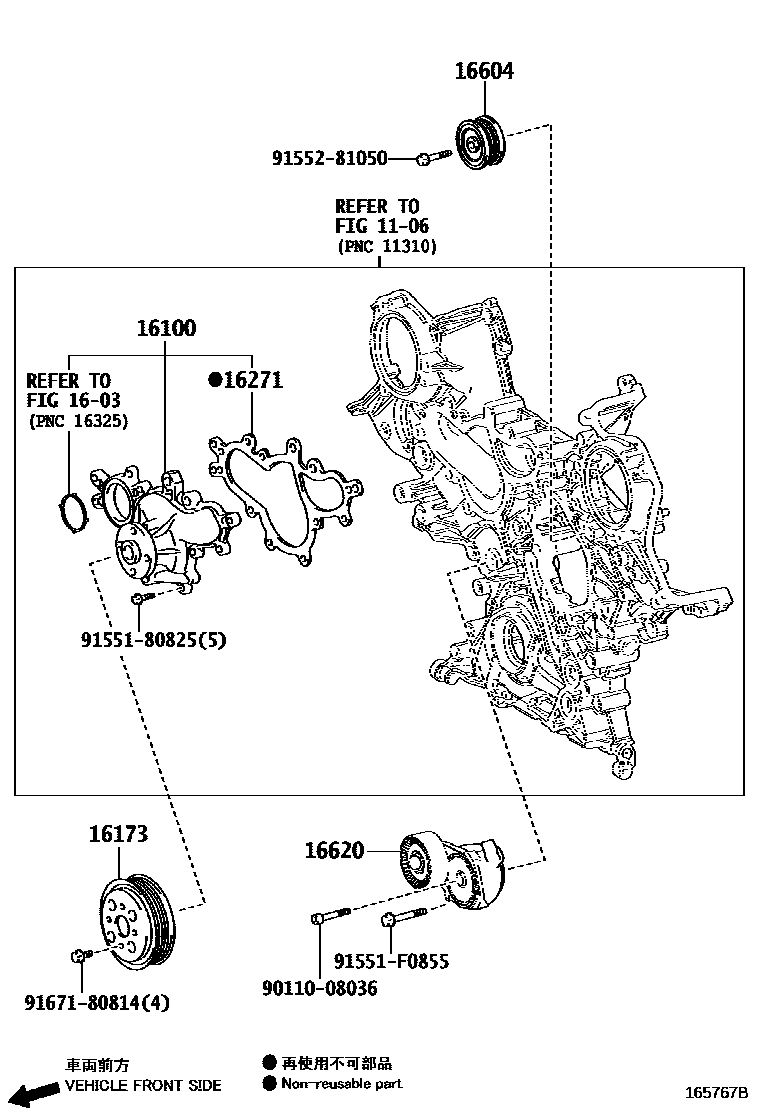

WATER PUMP

1106

1603

16100PUMP ASSY, ENGINE WATER

main16100-39506i2URGSE..USC10¥12,800201409-202501

16173PULLEY, WATER PUMP

main16173-38040i2URGSE..USC10¥4,220201409-202005

sub16173-38041¥3,190

main16173-38041i2URGSE..USC10¥3,190202006-202501

16271GASKET, WATER PUMP

main16271-38010i2URGSE..USC10¥1,740201409-202501

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-38020i2URGSE..USC10¥4,600201409-202501

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W131i2URGSE..USC10¥15,200201409-202501

9011008036

main90110-08036¥100

9155180825

main91551-80825¥80

91551F0855

main91551-F0855¥100

9155281050

main91552-81050¥120

9167180814

main91671-80814¥80

12 parts on this diagram · 1 diagram in section
