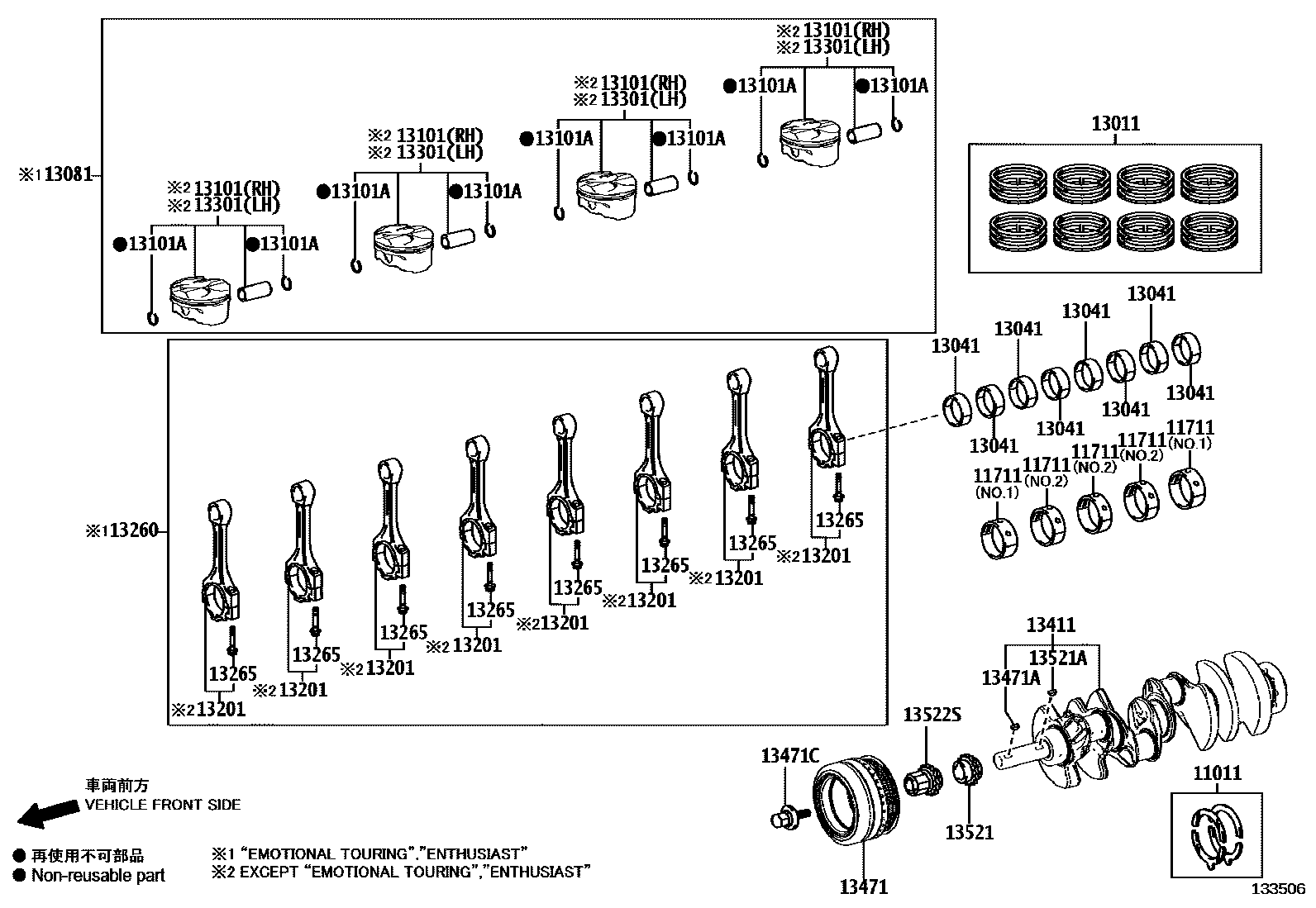

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
11711BEARING, CRANKSHAFT
MARK UPPER 3 LOWER 4,NO.2,REFER R/M
MARK UPPER 4 LOWER 4,NO.2,REFER R/M
MARK UPPER 4 LOWER 5,NO.2,REFER R/M
MARK UPPER 5 LOWER 5,NO.2,REFER R/M
MARK UPPER 5 LOWER 6,NO.2,REFER R/M
MARK UPPER 6 LOWER 6,NO.2,REFER R/M
MARK UPPER 6 LOWER 7,NO.2,REFER R/M
MARK UPPER 7 LOWER 7,NO.2,REFER R/M
MARK UPPER 7 LOWER 8,NO.2,REFER R/M
MARK UPPER 8 LOWER 8,NO.2,REFER R/M
MARK UPPER 4 LOWER 5,NO.1,REFER R/M
MARK UPPER 5 LOWER 5,NO.1,REFER R/M
MARK UPPER 5 LOWER 6,NO.1,REFER R/M
MARK UPPER 6 LOWER 6,NO.1,REFER R/M
MARK UPPER 6 LOWER 7,NO.1,REFER R/M
MARK UPPER 7 LOWER 7,NO.1,REFER R/M
MARK UPPER 7 LOWER 8,NO.1,REFER R/M
MARK UPPER 8 LOWER 8,NO.1,REFER R/M
MARK UPPER 8 LOWER 9,NO.1,REFER R/M
MARK UPPER 9 LOWER 9,NO.1,REFER R/M
"ENTHUSIAST" *(B),MARK UPPER 4 LOWER 4,NO.2,REFER R/M
"EMOTIONAL TOURING" *(D),MARK UPPER 4 LOWER 5,NO.2,REFER R/M
"ENTHUSIAST" *(B),MARK UPPER 5 LOWER 5,NO.2,REFER R/M
"ENTHUSIAST" *(B),MARK UPPER 5 LOWER 6,NO.2,REFER R/M
"ENTHUSIAST" *(B),MARK UPPER 6 LOWER 6,NO.2,REFER R/M
"EMOTIONAL TOURING" *(D),MARK UPPER 5 LOWER 6,NO.1,REFER R/M
"EMOTIONAL TOURING" *(D),MARK UPPER 6 LOWER 6,NO.1,REFER R/M
"EMOTIONAL TOURING" *(D),MARK UPPER 6 LOWER 7,NO.1,REFER R/M
"ENTHUSIAST" *(B),MARK UPPER 7 LOWER 7,NO.1,REFER R/M
"EMOTIONAL TOURING" *(D),MARK UPPER 7 LOWER 8,NO.1,REFER R/M
13011RING SET, PISTON
STD
STD
13041BEARING, CONNECTING ROD
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
13081PISTON SET
"ENTHUSIAST" *(B)
13101PISTON SUB-ASSY, W/PIN
STD
STD
"EMOTIONAL TOURING" *(D),NOT APPLICABLE
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
"ENTHUSIAST" *(B)
13260ROD ASSY, CONNECTING
"ENTHUSIAST" *(B)
13265BOLT, CONNECTING ROD
13301PISTON SUB-ASSY, W/PIN, LH
STD
STD
"ENTHUSIAST" *(B),NOT APPLICABLE
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13522SSPROCKET, CRANKSHAFT TIMING, LH
18 parts on this diagram · 1 diagram in section
