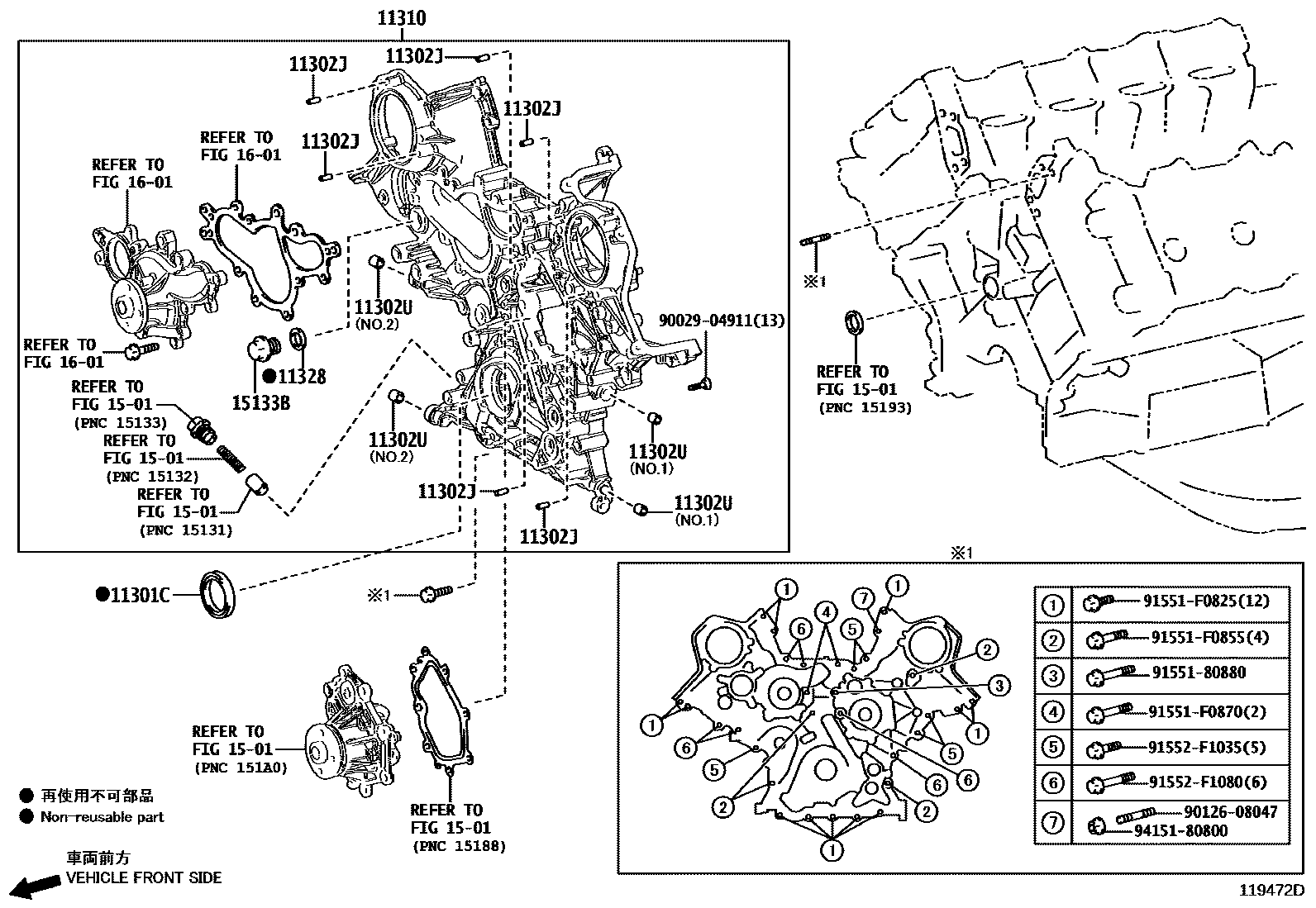

TIMING GEAR COVER & REAR END PLATE

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42036i2URGSE..USC10201409-202501

11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)

main90250-04097i2URGSE..USC10201409-202501

11302UPIN, RING

main90253-11021i2URGSE..USC10201409-202501

NO.1:REFER ILLUST.

main90253-13017i2URGSE..USC10201409-202501

NO.2:REFER ILLUST.

11310COVER ASSY, TIMING CHAIN

main11310-38100i2URGSE..USC10201409-202501

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-38030i2URGSE..USC10201409-202501

1501

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-38071i2URGSE..USC10201409-202501

1601

9002904911

main90029-04911

9012608047

main90126-08047

9155180880

main91551-80880

91551F0825

main91551-F0825

91551F0855

main91551-F0855

91551F0870

main91551-F0870

91552F1035

main91552-F1035

91552F1080

main91552-F1080

9415180800

main94151-80800

17 parts on this diagram · 1 diagram in section
