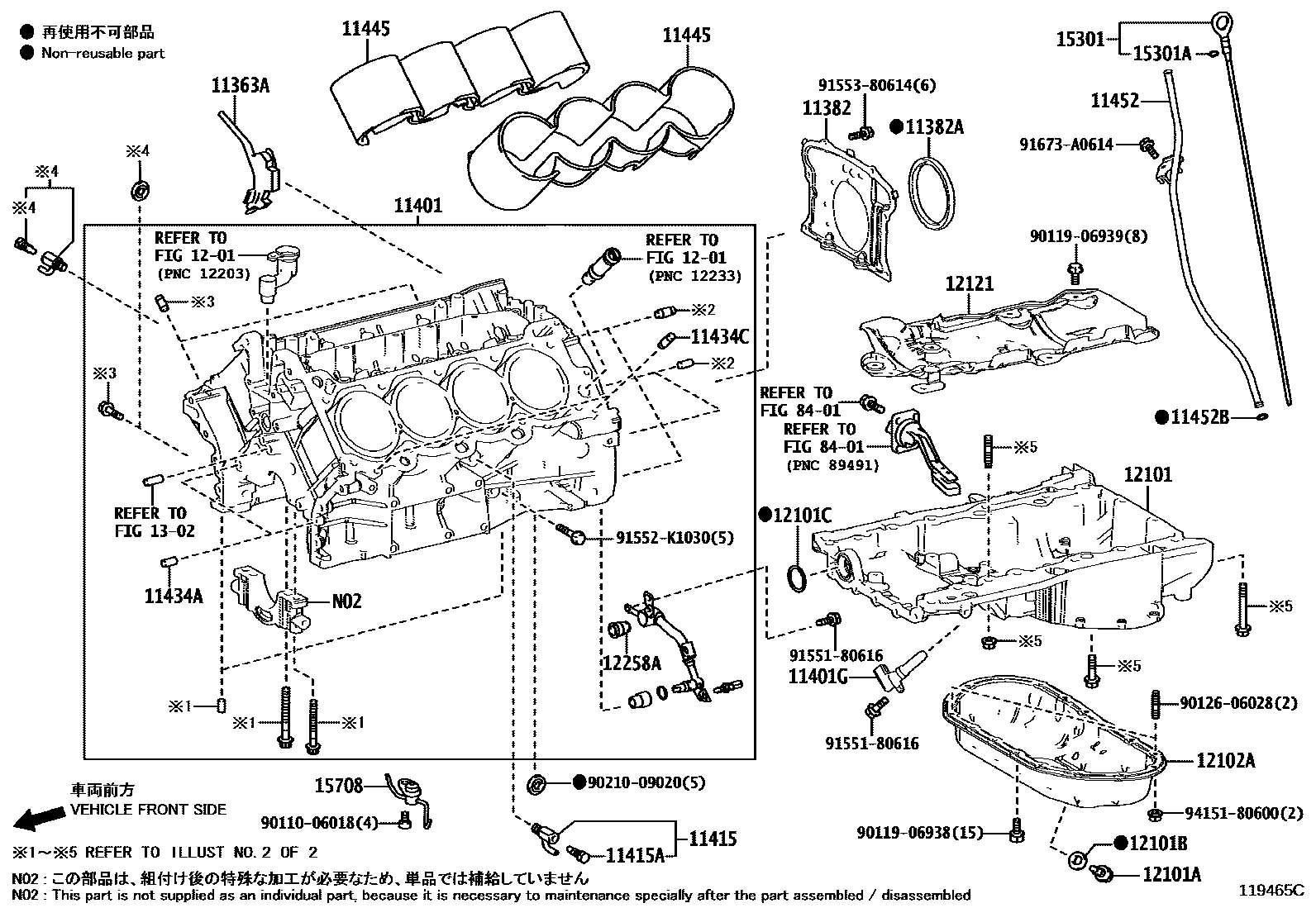

CYLINDER BLOCK
11363ACOVER, FLYWHEEL HOUSING SIDE
11382RETAINER, ENGINE OIL SEAL, REAR
11382ASEAL, OIL(FOR OIL SEAL RETAINER)
11401BLOCK SUB-ASSY, CYLINDER
"EMOTIONAL TOURING" *(D)
11401GSENSOR, CRANK POSITION
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=18,OD=8
11445SPACER, CYLINDER BLOCK WATER JACKET
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
1201
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12101CRING, O(FOR OIL PAN)
12102APAN SUB-ASSY, OIL, NO.2
12121PLATE, OIL PAN BAFFLE, NO.1
12258AGASKET, OIL RETURN PIPE
1302
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
15708NOZZLE SUB-ASSY, OIL, NO.1
8401
9011006018
main90110-06018
9011906938
main90119-06938
9011906939
main90119-06939
9012606028
main90126-06028
9021009020
main90210-09020
9155180616
main91551-80616
91552K1030
main91552-K1030
9155380614
main91553-80614
91673A0614
main91673-A0614
9415180600
main94151-80600
35 parts on this diagram · 2 diagrams in section
