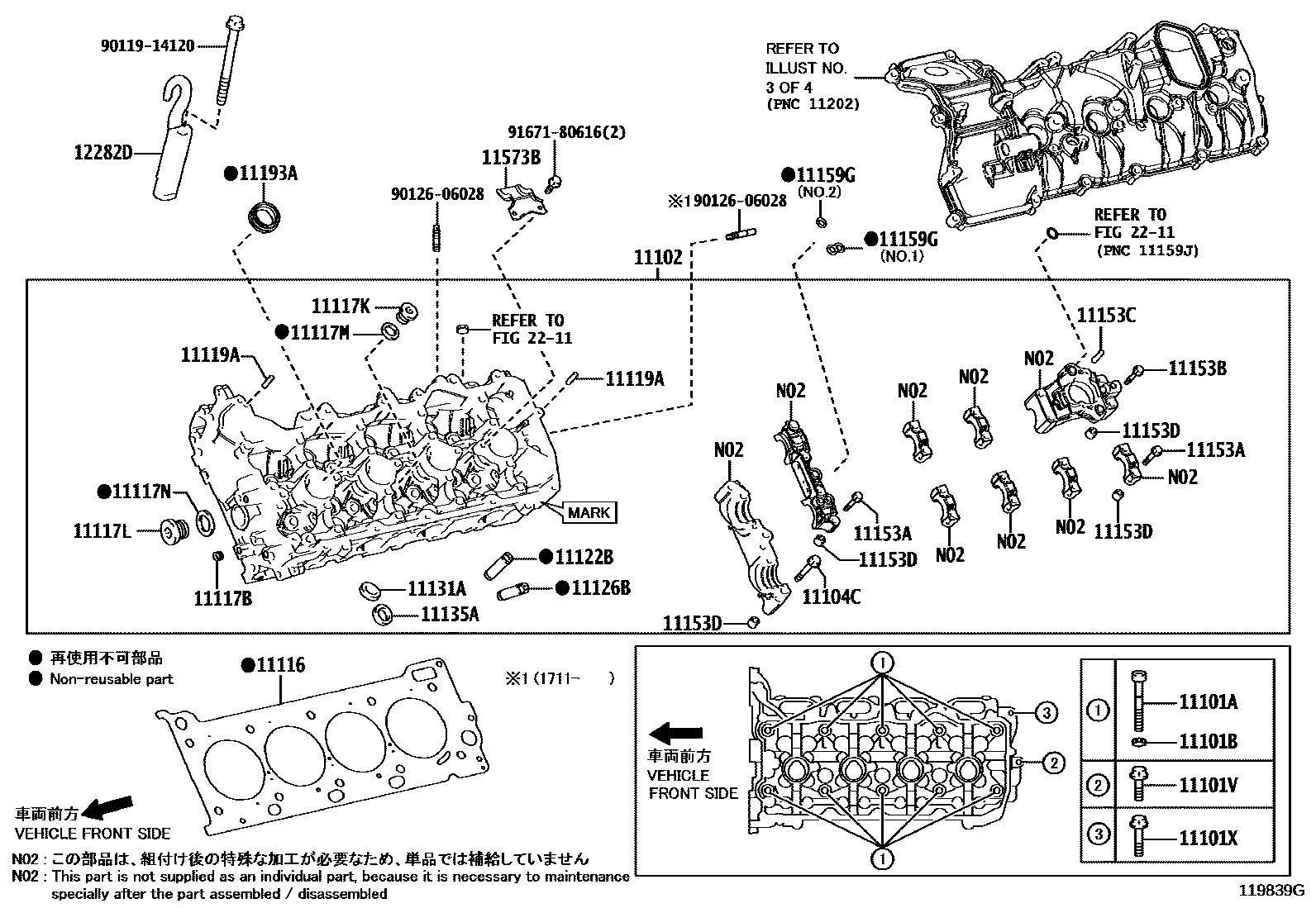

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
MARK=***-* OR ***G*
MARK=***Y*
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101VBOLT(FOR CYLINDER HEAD SET SUB)
11101XBOLT(FOR CYLINDER HEAD SET SUB)
11102HEAD, CYLINDER, LH
MARK=***-* OR ***G*
MARK=***Y*
11104CBOLT(FOR CAMSHAFT HOUSING SET LH)
11116GASKET, CYLINDER HEAD, NO.2
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117KPLUG, W/HEAD STRAIGHT SCREW, LH NO.1
11117LPLUG, W/HEAD STRAIGHT SCREW, LH NO.2
11117MGASKET(FOR WATER HOLE NO.2)
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
11119APIN, STRAIGHT, NO.1
L=13.8,OD=5.0
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
11122BBUSH, INTAKE VALVE GUIDE, NO.2
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11131ASEAT, INTAKE VALVE, NO.2
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
O/S 0.03
11135ASEAT, EXHAUST VALVE, NO.2
STD
O/S 0.03
11153ABOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
11153BBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2)
11153CPIN, STRAIGHT(FOR CAMSHAFT HOUSING LH)
11153DPIN, RING(FOR CAMSHAFT BEARING CAP SETTING LH)
11159GGASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
11193GASKET, SPARK PLUG TUBE
11193AGASKET, SPARK PLUG TUBE, LH
11573BPLATE, OIL REFLECTOR, LH
12282DHANGER, ENGINE, NO.2
2211
9011914120
9012606028
9167180616
35 parts on this diagram · 4 diagrams in section
