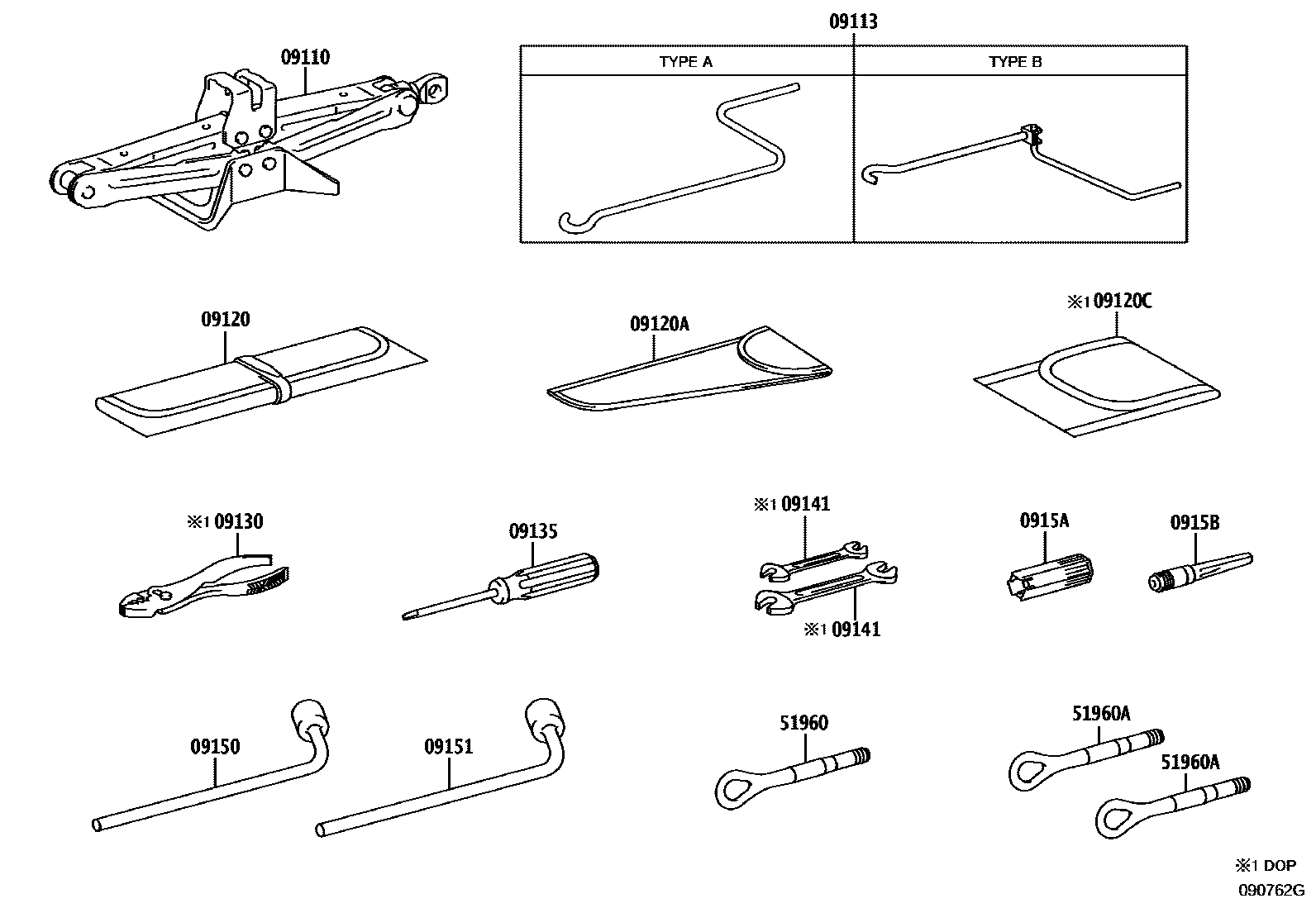

STANDARD TOOL

0001 1 0002 1

09110JACK ASSY

main09111-30160iUSC10201409-201601

main09111-30180iUSC10201602-201902

main09111-30181iUSC10202111-202403

09113HANDLE, JACK

main09113-13040iUSC10201903-202403

TYPE A:REFER ILLUST.

main09113-44010iUSC10..LHD201903-202310

BULGARIA SPEC,TYPE B:REFER ILLUST.

09120BAG, TOOL

main09120-12011iUSC10..LHD201409-201902

ISRAEL SPEC

main09120-35180iUSC10..LHD202301-202310

ISRAEL SPEC

09120ACASE, TOOL

main09120-28020iUSC10..LHD201903-202009

RUSSIA SPEC

09120CBAG,TOOL, NO.2

main09120-24020iUSC10201903-202403

TOOL(DOP)-SPANNER & PLIERS

09130PLIERS

main09130-50040iUSC10201409-201902

TOOL(DOP)-SPANNER & PLIERS

09135DRIVER, SCREW

main99915-10700iUSC10201903-202403

09141SPANNER

main09141-60010iUSC10201903-202403

8 X 10,TOOL(DOP)-SPANNER & PLIERS

main09141-60020iUSC10201903-202403

12 X 14,TOOL(DOP)-SPANNER & PLIERS

09150WRENCH, HUB NUT BOX

main09150-26010iUSC10201903-202301

09151WRENCH, HUB BOLT BOX

main09151-53010iUSC10202301-202403

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-53010iUSC10202301-202403

0915BPIN, WHEEL GUIDE

main0915B-53010iUSC10202301-202403

51960HOOK ASSY, FRONT

main51961-53010iUSC10201409-201902

51960AHOOK ASSY, REAR

main51961-53010×2iUSC10201409-201902

14 parts on this diagram · 2 diagrams in section
