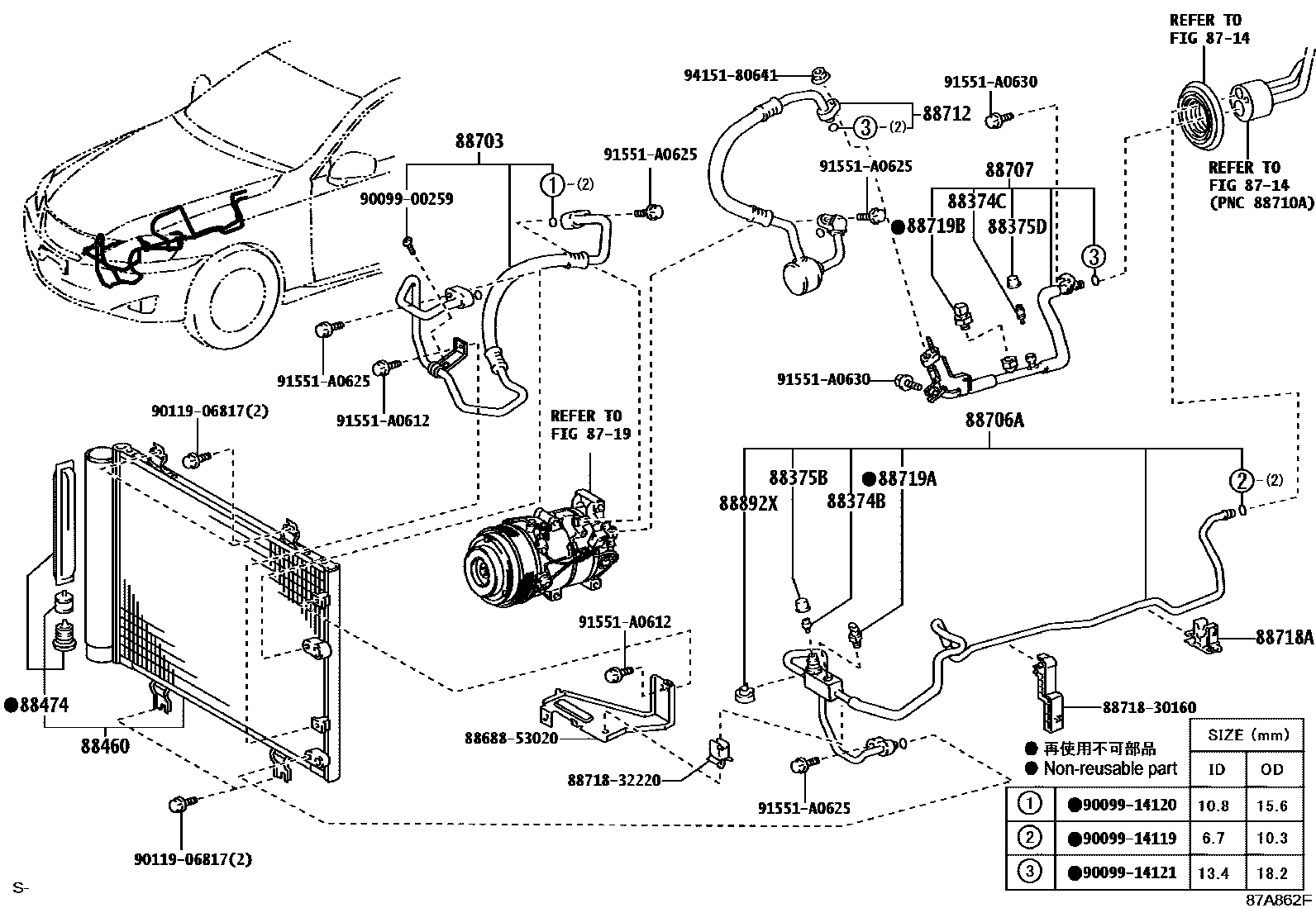

HEATING & AIR CONDITIONING - COOLER PIPING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iGSE20200904

88374CVALVE, SERVICE, NO.2

main88374-30010iGSE20200904

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iGSE20200904

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iGSE20200904

88460CONDENSER ASSY, COOLER

main88460-53030iGSE20200904

88474DRYER, COOLER

main88474-17010iGSE20200904

88703HOSE SUB-ASSY, DISCHARGE

main88703-53090iGSE20200904-201009

sub88703-53091

main88703-53091iGSE20201009-201012

main88703-53120iGSE20201101

88706ATUBE SUB-ASSY, LIQUID, A

main88706-53080iGSE20200904-201012

main88706-53130iGSE20201101

88707PIPE SUB-ASSY, SUCTION

main88707-53070iGSE20200904

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-53100iGSE20200904-201012

main88712-53180iGSE20201101

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-30150iGSE20200904

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iGSE20201005

main88719-40020iGSE20200904-201005

88719BSENSOR, AIR CONDITIONER PRESSURE, NO.2

main88719-26020iGSE20200904

88892XCOVER, COOLER, NO.2

main88892-50120iGSE20201005

8868853020BRACKET, COOLER DIAPHRAGM

main88688-53020

8871830160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30160

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009900259

main90099-00259

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906817

main90119-06817

91551A0612

main91551-A0612

91551A0625

main91551-A0625

91551A0630

main91551-A0630

9415180641

main94151-80641

28 parts on this diagram · 1 diagram in section
