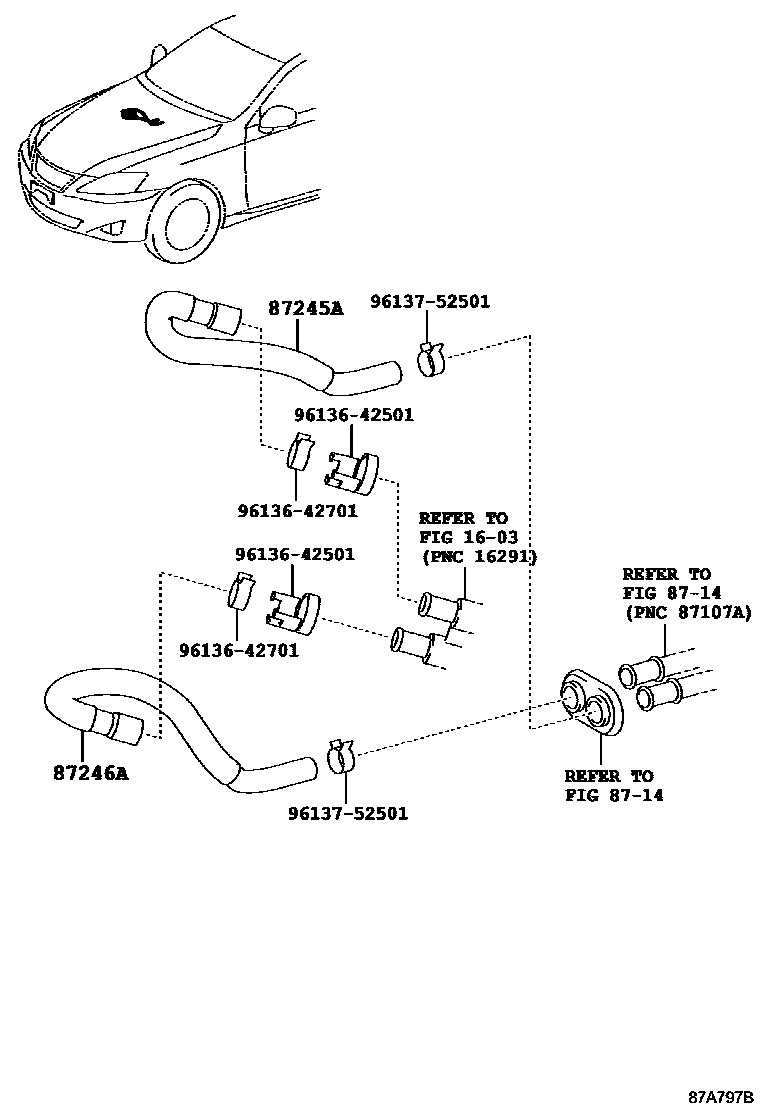

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603

8714

87245AHOSE, HEATER WATER, INLET A

main87245-53180iGSE20200904

87246AHOSE, HEATER WATER, OUTLET A

main87245-53130iGSE20..LHD200904

main87245-53150iGSE20..RHD200904-201411

9613642501

main96136-42501

9613642701

main96136-42701

9613752501

main96137-52501

7 parts on this diagram · 2 diagrams in section
