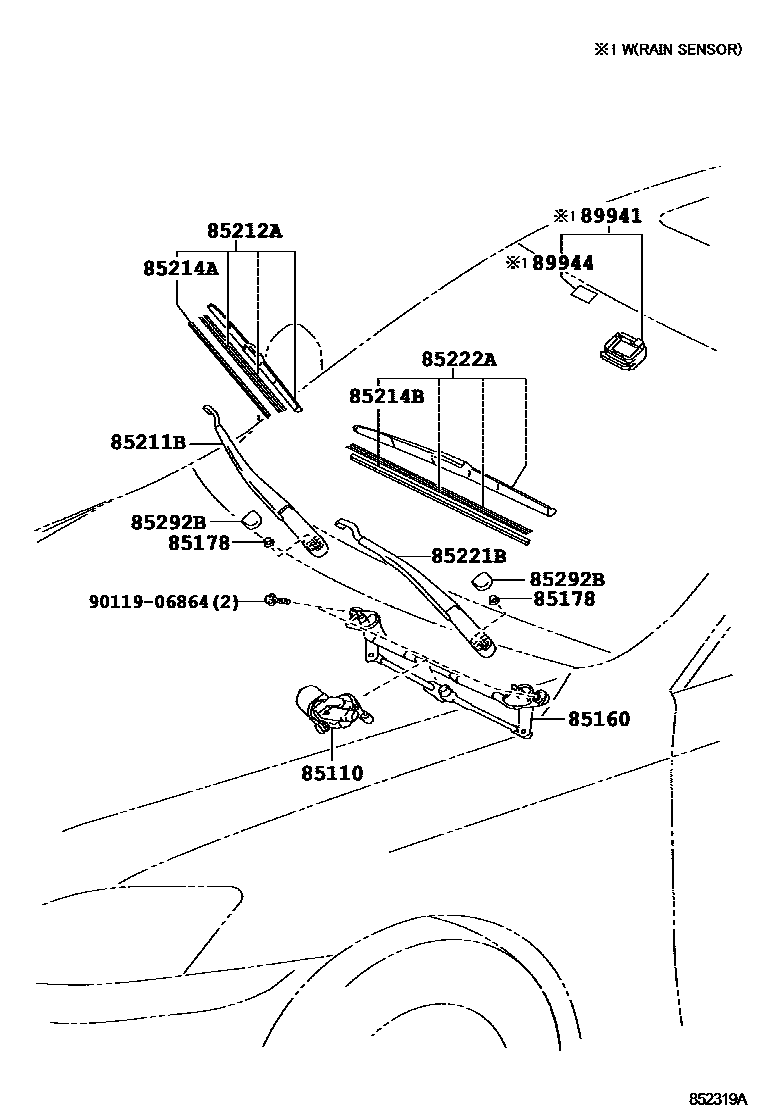

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-60380iGSE20..RHD200904-201408

main85110-60400iGSE20..LHD200904

main85110-60390iGSE20..LHD..6FC201007

TAIWAN SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85150-53060iGSE20..LHD200904

sub85150-53061

main85150-53070iGSE20..RHD200904-201408

sub85150-53071

main85150-53050iGSE20..LHD..6FC200904

TAIWAN SPEC

sub85150-53051

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223×2iGSE20200904-201106

main90182-10006×2iGSE20201107

85211BARM, FRONT WIPER, RH

main85211-53070iGSE20..LHD200904

main85211-53050supersedes 85211-53060iGSE20..RHD..6FC200904-201411

THAILAND SPEC

main85211-53080iGSE20..LHD..6FC200904

TAIWAN SPEC

85212ABLADE, FR WIPER, RH

main85212-53070iGSE20..RHD200904-201411

main85212-53081iGSE20..LHD200904-201507

85214ARUBBER, WIPER, RH

main85214-53080iGSE20..RHD200904-201411

main85214-53090iGSE20..LHD200904

85214BRUBBER, WIPER, LH

main85214-53080iGSE20..LHD200904

main85214-53090iGSE20..RHD200904-201411

85221BARM, FRONT WIPER, LH

main85221-53060iGSE20..RHD200904-201411

main85221-53070iGSE20..LHD200904

main85221-53080iGSE20..LHD..6FC200904

TAIWAN SPEC

85222ABLADE, FR WIPER, LH

main85222-53060iGSE20..RHD200904-201411

main85222-53071iGSE20..LHD200904-201507

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iGSE20200904

89941SENSOR, RAIN

main89941-53012iGSE20200904-200907

LUXURY PACKAGE

main89941-53020iGSE20200908

LUXURY PACKAGE

89944TAPE, RAIN SENSOR

main89944-30020iGSE20200904

LUXURY PACKAGE

9011906864

main90119-06864

13 parts on this diagram · 2 diagrams in section
