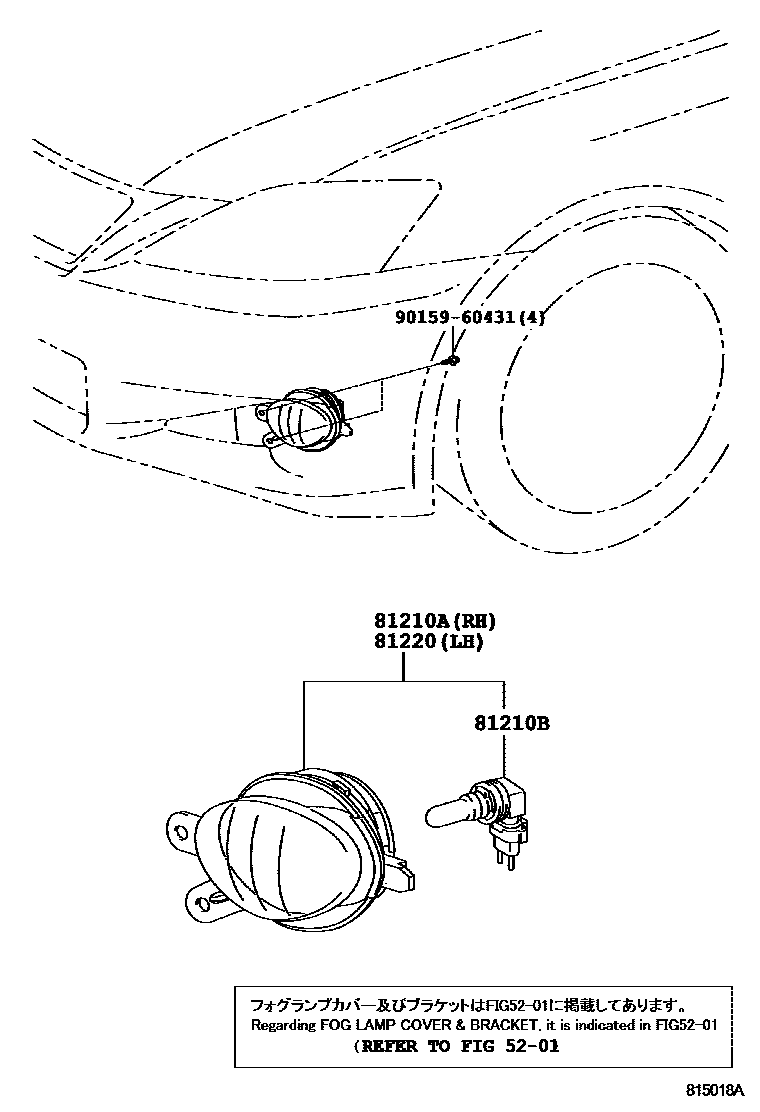

FOG LAMP

0001 1 0002 1F SPORT

5201

81210ALAMP ASSY, FOG, RH

main81210-0W030iGSE20200904-201011

sub81210-0W031

main81210-0W031iGSE20201012-201507

main81210-0W050iGSE20201208-201507

F SPORT

81210BBULB, FOG LAMP

main90981-13075iGSE20200904-201507

12V 55W,HALOGEN,PHILIPS

main90981-13081iGSE20200904-201507

12V 55W,HALOGEN,OSRAM

81220LAMP ASSY, FOG, LH

main81220-0W030iGSE20200904-201011

sub81220-0W031

main81220-0W031iGSE20201012-201507

main81220-0W040iGSE20201208-201507

F SPORT

9015960431

main90159-60431

5 parts on this diagram · 2 diagrams in section
