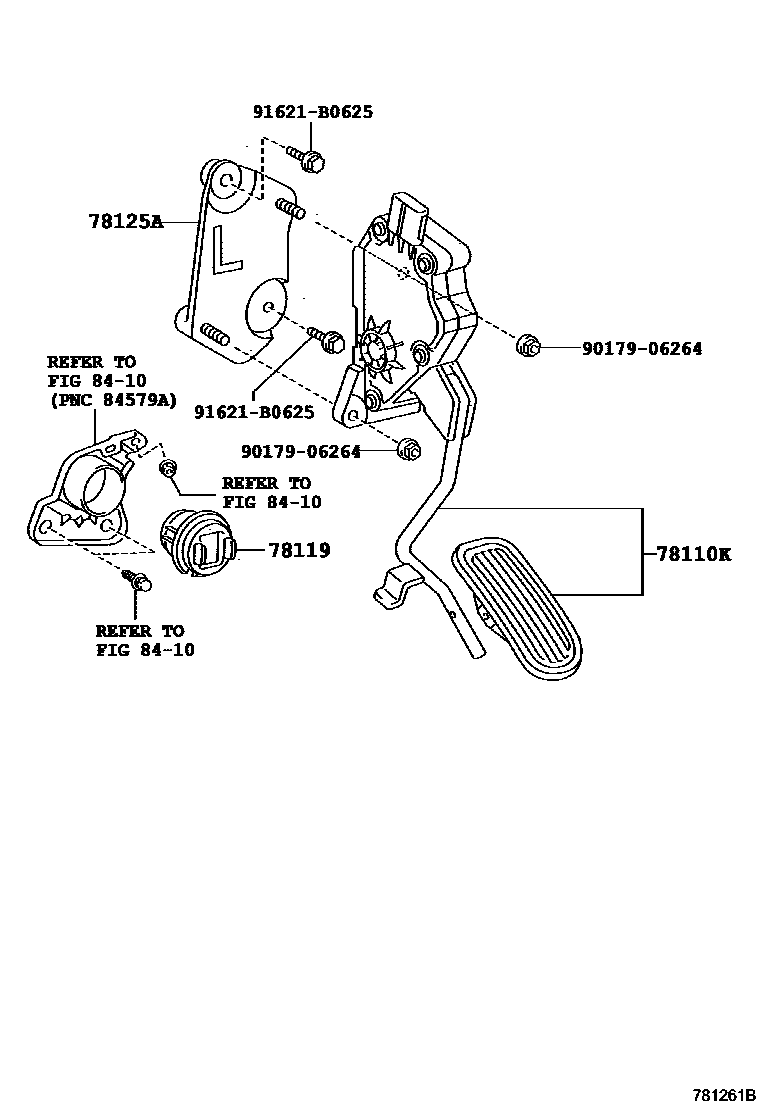

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-53140iGSE20..LHD201408-201507

sub78110-53180

main78110-53021supersedes 78110-53012iGSE20..RHD..6FC200904-201007

NEW ZEALAND SPEC&ACCELERATOR PEDAL-ALUMINUM TYPE

main78110-53022supersedes 78110-53012iGSE20..RHD201208-201411

HONGKONG SPEC&ACCELERATOR PEDAL-ALUMINUM TYPE

sub78110-53170

main78110-53041supersedes 78110-53031iGSE20..LHD..6FC200904-201007

ACCELERATOR PEDAL-ALUMINUM TYPE

main78110-53110supersedes 78110-53120iGSE20..LHD201008-201408

ACCELERATOR PEDAL-ALUMINUM TYPE

sub78110-53100

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-48010iGSE20..6F200904-201008

78125ABRACKET, ACCELERATOR PEDAL ROD, NO.2

main78125-53010iGSE20..LHD200904

8410

9017906264

main90179-06264

91621B0625

main91621-B0625

6 parts on this diagram · 4 diagrams in section
