SIDE MOULDING
57497ASHIELD, REAR FLOOR HOUSING
57498ASHIELD, REAR FLOOR HOUSING, NO.2
62053BRETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, NO.3
62054BRETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, NO.4
62361ARETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH
62362ARETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH
62363BRETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER RH
62364BRETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER LH
62371ARETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR RH
62372ARETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR LH
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
75545GCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75548EFASTENER, WINDSHIELD OUTSIDE MOULDING
75549BFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.2
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
75671MOULDING, QUARTER BELT, RH
75672MOULDING, QUARTER BELT, LH
75711BMOULDING, FRONT DOOR BELT, RH
75712BMOULDING, FRONT DOOR BELT, LH
75851MOULDING, ROCKER PANEL, RH
WHITE PEARL CS.,077
WHITE NOVA GF.,083
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
BLUE ME.,8U1
SILVERY BLUE ME.,8U9
LAPIS LAZULI MC.,8V3
CATTLEYA M.M.,9AL
75852MOULDING, ROCKER PANEL, LH
WHITE PEARL CS.,077
WHITE NOVA GF.,083
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
BLUE ME.,8U1
SILVERY BLUE ME.,8U9
LAPIS LAZULI MC.,8V3
CATTLEYA M.M.,9AL
75861GCOVER, ROCKER PANEL MOULDING END, FRONT RH
WHITE PEARL CS.,077
WHITE NOVA GF.,083
DK.GRAY MC.,1G0
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
DK.BLUE MC. CC.,8U0
BLUE ME.,8U1
SILVERY BLUE ME.,8U9
LAPIS LAZULI MC.,8V3
CATTLEYA M.M.,9AL
75862APROTECTOR, ROCKER PANEL MOULDING, NO.2
75862CPROTECTOR, ROCKER PANEL MOULDING, NO.2
75862ECOVER, ROCKER PANEL MOULDING END, FRONT LH
WHITE PEARL CS.,077
WHITE NOVA GF.,083
DK.GRAY MC.,1G0
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
DK.BLUE MC. CC.,8U0
BLUE ME.,8U1
SILVERY BLUE ME.,8U9
LAPIS LAZULI MC.,8V3
CATTLEYA M.M.,9AL
75863CPROTECTOR, ROCKER PANEL MOULDING, NO.3
75865CPROTECTOR, ROCKER PANEL MOULDING, NO.5
75866BPROTECTOR, ROCKER PANEL MOULDING, NO.6
75867CCLIP, ROCKER PANEL MOULDING
75868BCLIP, ROCKER PANEL MOULDING, NO.2
9014960085
main90149-60085
9015960498
main90159-60498
9015960507
main90159-60507
9016240034
main90162-40034
9016840012
main90168-40012
9017906274
main90179-06274
9018904022
main90189-04022
9018904059
main90189-04059
9018906172
main90189-06172
9046709232
main90467-09232
9054103112
main90541-03112

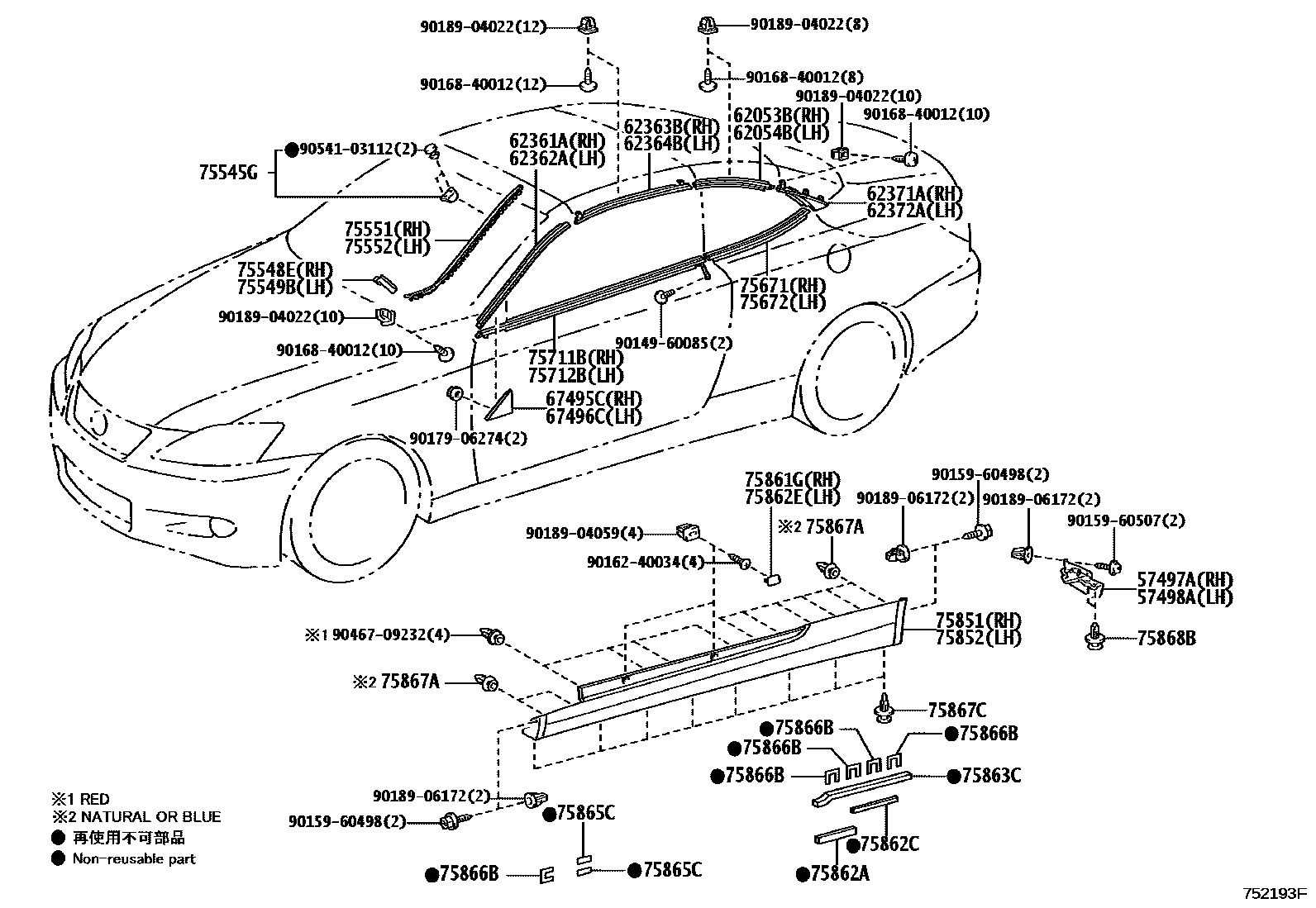

44 parts on this diagram · 1 diagram in section
