E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

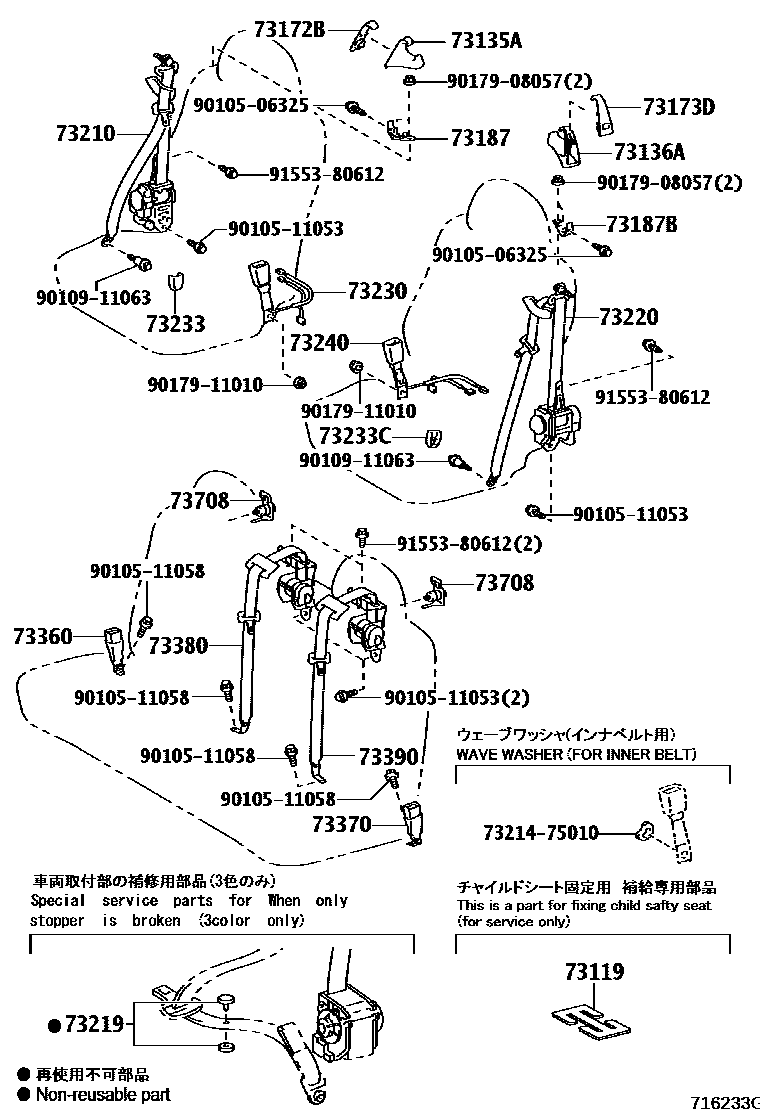

Parts diagram
73119PLATE, SEAT BELT WEBBING CLIP
main73119-22010i¥1,110201008
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73135-53040-A0i200904-201507
MELLOW WHITE,TRIM00,01,02,03,06,07
main73135-53040-C0i200904-201008
BLACK,TRIM04,05,08,2#
main73135-53040-C0i200904-201507
BLACK,TRIM04,05,08,1#,2#,3#,4#
73136ACOVER, SHOULDER BELT ANCHOR, LH
main73136-53030-A0i200904-201507
MELLOW WHITE,TRIM00,01,02,03,06,07
main73136-53030-C0i200904-201008
BLACK,TRIM04,05,08,2#
main73136-53030-C0i200904-201507
BLACK,TRIM04,05,08,1#,2#,3#,4#
73172BCAP, FRONT SHOULDER BELT HANGER, RH
main73172-53020i¥1,090200908-201507
main73172-53020-A0i200904-200908
MELLOW WHITE,TRIM00,01,02,03,06,07
sub73172-53020¥1,090
main73172-53020-C0i200904-200908
BLACK,TRIM04,05,08,2#
sub73172-53020¥1,090
73173DCAP, FRONT SHOULDER BELT HANGER, LH
main73173-53020i¥1,090200908-201507
main73173-53020-A0i200904-200908
MELLOW WHITE,TRIM00,01,02,03,06,07
sub73173-53020¥1,090
main73173-53020-C0i200904-200908
BLACK,TRIM04,05,08,2#
sub73173-53020¥1,090
73187GUIDE, FRONT SEAT SHOULDER BELT
main73187-53010i¥650200908-201507
main73187-53010-A0i200904-200908
MELLOW WHITE,TRIM00,01,02,03,06,07
sub73187-53010¥650
main73187-53010-C0i200904-200908
BLACK,TRIM04,05,08,2#
sub73187-53010¥650
73187BGUIDE, FRONT SEAT SHOULDER BELT
main73187-53020i¥650200908-201507
main73187-53020-A0i200904-200908
MELLOW WHITE,TRIM00,01,02,03,06,07
sub73187-53020¥650
main73187-53020-C0i200904-200908
BLACK,TRIM04,05,08,2#
sub73187-53020¥650
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-53260-A0i200904-201007
MELLOW WHITE,TRIM0#
sub73210-53263¥39,500
main73210-53260-C0i200904-201007
BLACK,TRIM2#
sub73210-53263¥39,500
main73210-53260-C0i200904-201007
BLACK,TRIM1#,2#,3#,4#
sub73210-53263¥39,500
main73210-53261-A0i201008-201302
MELLOW WHITE,TRIM0#
sub73210-53262¥39,500
main73210-53261-C0i201008-201302
BLACK,TRIM1#,2#,3#,4#
sub73210-53262¥39,500
main73210-53262-A0i201303-201307
MELLOW WHITE,TRIM0#
sub73210-53263¥39,500
main73210-53262-C0i201303-201307
BLACK,TRIM1#,2#,3#,4#
sub73210-53263¥39,500
main73210-53263-A0i201308-201507
MELLOW WHITE,TRIM0#
main73210-53263-C0i201308-201507
BLACK,TRIM1#,2#,3#,4#
73219STOPPER, TONGUE PLATE
main73219-33010i¥100200904
BLACK
main73219-33020i¥100200904
GRAY
main73219-33030i¥100200904
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-53190-A0i200904-201007
MELLOW WHITE,TRIM0#
sub73220-53193¥39,500
main73220-53190-C0i200904-201007
BLACK,TRIM1#,2#,3#,4#
sub73220-53193¥39,500
main73220-53190-C0i200904-201007
BLACK,TRIM2#
sub73220-53193¥39,500
main73220-53191-A0i201008-201302
MELLOW WHITE,TRIM0#
sub73220-53192¥39,500
main73220-53191-C0i201008-201302
BLACK,TRIM1#,2#,3#,4#
sub73220-53192¥39,500
main73220-53192-A0i201303-201307
MELLOW WHITE,TRIM0#
sub73220-53193¥39,500
main73220-53192-C0i201303-201307
BLACK,TRIM1#,2#,3#,4#
sub73220-53193¥39,500
main73220-53193-A0i201308-201507
MELLOW WHITE,TRIM0#
main73220-53193-C0i201308-201507
BLACK,TRIM1#,2#,3#,4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-53250-A2i200904-201507
MELLOW WHITE,TRIM0#
main73230-53250-C2i200904-201507
BLACK,TRIM2#
main73230-53400-A0i200904-201411
MELLOW WHITE,TRIM0#
main73230-53400-C0i200904-201411
BLACK,TRIM2#
73233COVER, LAP BELT OUTER ANCHOR
main73233-52010-A5i200904-201507
MELLOW WHITE,TRIM0#
sub73233-60020¥500
sub73233-0C010
main73233-52010-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
sub73233-60020¥500
sub73233-0C010
main73233-52010-C0i200904-201008
BLACK,TRIM2#
sub73233-60020¥500
sub73233-0C010
73233CCOVER, LAP BELT OUTER ANCHOR, LH
main73233-52010-A5i200904-201507
MELLOW WHITE,TRIM0#
sub73233-60020¥500
sub73233-0C010
main73233-52010-C0i200904-201008
BLACK,TRIM2#
sub73233-60020¥500
sub73233-0C010
main73233-52010-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
sub73233-60020¥500
sub73233-0C010
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-53250-A2i200904-201411
MELLOW WHITE,TRIM0#
main73230-53250-C2i200904-201411
BLACK,TRIM2#
main73230-53400-A0i200904-201507
MELLOW WHITE,TRIM0#
main73230-53400-C0i200904-201507
BLACK,TRIM2#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73380-53040-A0i200904-201507
MELLOW WHITE,TRIM0#
main73380-53040-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
main73380-53040-C0i200904-201008
BLACK,TRIM2#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73480-53030-A0i200904-201507
MELLOW WHITE,TRIM0#
main73480-53030-C0i200904-201008
BLACK,TRIM2#
main73480-53030-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73360-53110-A0i200904-201007
MELLOW WHITE,TRIM0#
sub73360-53111¥23,800
main73360-53110-C0i200904-201007
BLACK,TRIM2#
sub73360-53111¥23,800
main73360-53110-C0i200904-201007
BLACK,TRIM1#,2#,3#,4#
sub73360-53111¥23,800
main73360-53190-A0i201008-201307
MELLOW WHITE,TRIM0#
sub73360-53191¥23,800
main73360-53190-C0i201008-201307
BLACK,TRIM1#,2#,3#,4#
sub73360-53191¥23,800
main73360-53191-A0i201308-201507
MELLOW WHITE,TRIM0#
main73360-53191-C0i201308-201507
BLACK,TRIM1#,2#,3#,4#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73370-53030-A0i200904-201007
MELLOW WHITE,TRIM0#
sub73370-53031¥23,800
main73370-53030-C0i200904-201007
BLACK,TRIM1#,2#,3#,4#
sub73370-53031¥23,800
main73370-53030-C0i200904-201007
BLACK,TRIM2#
sub73370-53031¥23,800
main73370-53110-A0i201008-201307
MELLOW WHITE,TRIM0#
sub73370-53111¥23,800
main73370-53110-C0i201008-201307
BLACK,TRIM1#,2#,3#,4#
sub73370-53111¥23,800
main73370-53111-A0i201308-201507
MELLOW WHITE,TRIM0#
main73370-53111-C0i201308-201507
BLACK,TRIM1#,2#,3#,4#
73708BRACKET SET, TETHER ANCHOR
main73708-53030i¥740200904
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010¥170
9010506325
main90105-06325¥80
9010511053
main90105-11053¥100
9010511058
main90105-11058¥100
9010911063
main90109-11063¥320
9017908057
main90179-08057¥90
9017911010
main90179-11010¥110
9155380612
main91553-80612¥60

27 parts on this diagram · 1 diagram in section

SEAT BELT & CHILD RESTRAINT SEAT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
