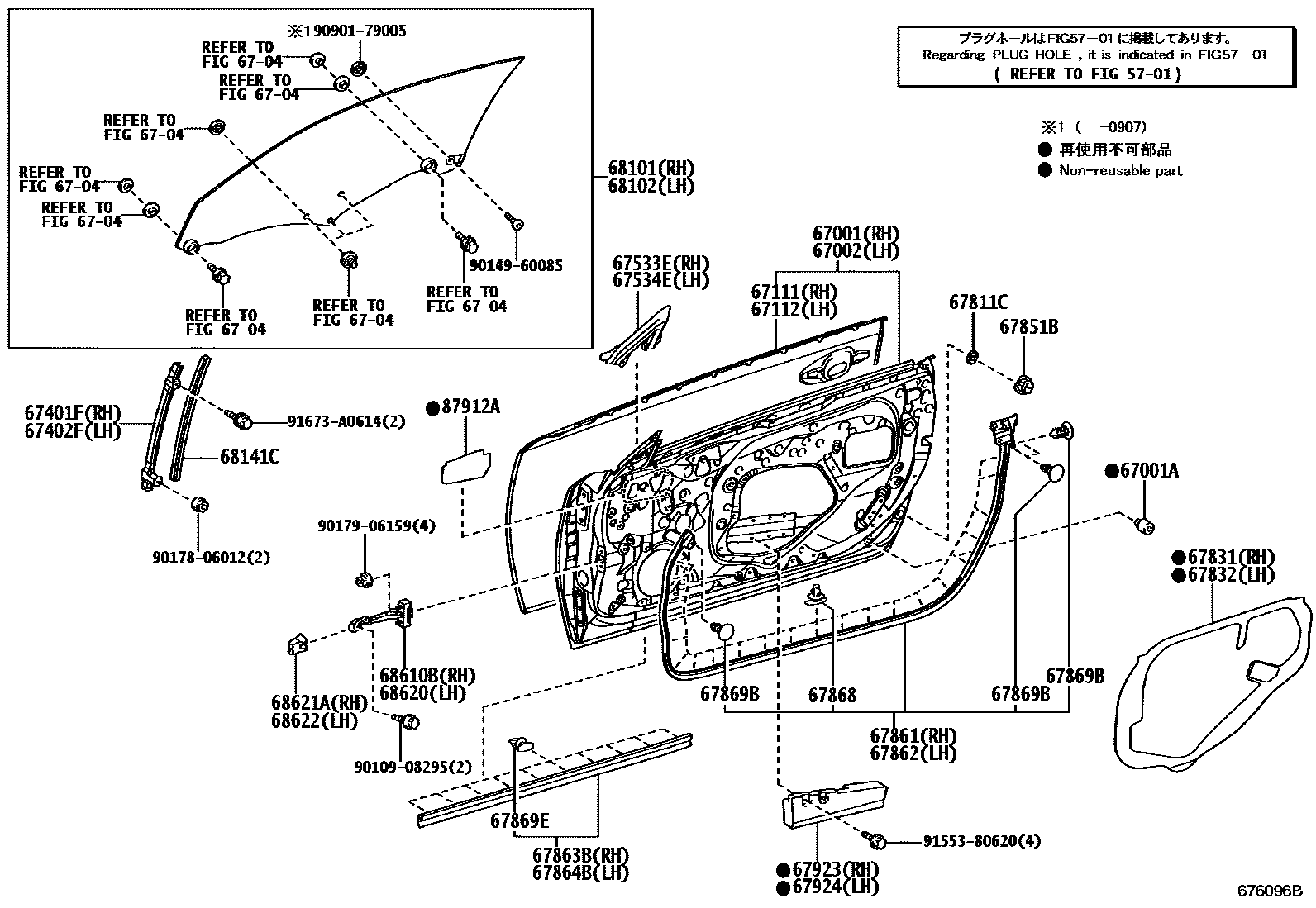

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-53060iGSE20200904-201507

67001ACUSHION, FRONT DOOR PANEL

main90541-09069×2iGSE20200904

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-53070iGSE20200904-201507

6704

67111PANEL, FRONT DOOR, OUTER RH

main67111-53030iGSE20200904-201507

67112PANEL, FRONT DOOR, OUTER LH

main67112-53030iGSE20200904-201507

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-53020iGSE20200904

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-53020iGSE20200904

67533ESEAL, FRONT DOOR DIVISION BAR, RH

main67533-53010iGSE20200904

67534ESEAL, FRONT DOOR DIVISION BAR, LH

main67534-53010iGSE20200904

67811CCOVER, FRONT DOOR HOLE

main67811-53020×2iGSE20200904

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-53050iGSE20200904

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-53050iGSE20200904

67851BCOVER, FRONT DOOR SERVICE HOLE, NO.5

main67844-53020×2iGSE20200904-201507

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-53040iGSE20200904

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-53040iGSE20200904

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-53020iGSE20200904

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67863-53020iGSE20200904

67868CLIP, FRONT DOOR GLASS WEATHERSTRIP

main67867-12150×44iGSE20200904

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-24010×8iGSE20200904

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67867-12150×20iGSE20200904

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-53040iGSE20200904

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-53030iGSE20200904

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-53060iGSE20200904-201208

*UVCT,T=5.0,GREEN

main68101-53120iGSE20201208

*UVCT,T=5.0,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-53060iGSE20200904-201208

*UVCT,T=5.0,GREEN

main68102-53120iGSE20201208

*UVCT,T=5.0,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-53030×2iGSE20200904

68610BCHECK ASSY, FRONT DOOR, RH

main68610-53040iGSE20200904-201108

main68610-53050iGSE20201109

68620CHECK ASSY, FRONT DOOR, LH

main68620-53030iGSE20200904-201108

main68620-53040iGSE20201109

68621ACOVER, FRONT DOOR CHECK, RH

main68621-53010iGSE20200904

68622COVER, FRONT DOOR CHECK, LH

main68622-53010iGSE20200904

87912APROTECTOR, OUTER MIRROR

main87912-53030iGSE20200904

RH

main87912-53040iGSE20200904

LH

9010908295

main90109-08295

9014960085

main90149-60085

9017806012

main90178-06012

9017906159

main90179-06159

9090179005

main90901-79005

9155380620

main91553-80620

91673A0614

main91673-A0614

39 parts on this diagram · 2 diagrams in section
