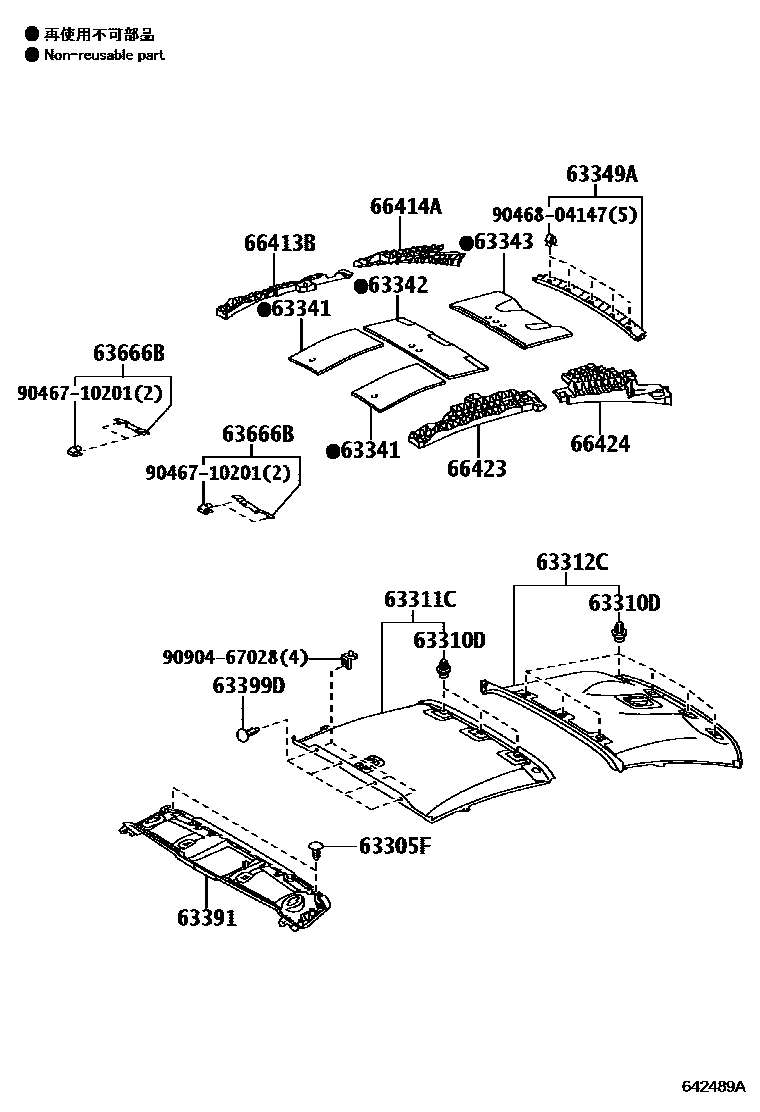

ROOF HEADLINING & SILENCER PAD
63305FCLIP(FOR ROOF HEADLINING TRIM)
63310DCLIP, ROOF HEADLINING
63311CHEADLINING, ROOF
MELLOW WHITE,TRIM0#
LT.GRAY,TRIM2#
LT.GRAY,TRIM1#,2#,3#,4#
BLACK,TRIM23,39
63312CHEADLINING, ROOF, REAR
MELLOW WHITE,TRIM0#
LT.GRAY,TRIM1#,2#,3#,4#
LT.GRAY,TRIM2#
BLACK,TRIM23,39
MELLOW WHITE,TRIM0#
LT.GRAY,TRIM1#,20,21,22,36,37,38,4#
BLACK,TRIM23,39
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
63343PAD, ROOF SILENCER, NO.3
63349AGARNISH, ROOF HEADLINING, REAR
MELLOW WHITE,TRIM0#
LT.GRAY,TRIM1#,20,21,22,36,37,38,4#
BLACK,TRIM23,39
63391TRIM, ROOF HEADLINING, FRONT
63399DCLIP, ROOF HEADLINING
MELLOW WHITE,TRIM0#
LT.GRAY,TRIM1#,2#,3#,4#
LT.GRAY,TRIM2#
BLACK,TRIM23,39
63666BPROTECTER, ROOF, FRONT
MELLOW WHITE,TRIM0#,RH
LT.GRAY,TRIM1#,2#,3#,4#,RH
LT.GRAY,TRIM2#,RH
BLACK,TRIM23,39,RH
MELLOW WHITE,TRIM0#,LH
LT.GRAY,TRIM1#,2#,3#,4#,LH
LT.GRAY,TRIM2#,LH
BLACK,TRIM23,39,LH
66413BSPACER, SIDE RAIL, FRONT RH
66414ASPACER, SIDE RAIL, REAR RH
66423SPACER, SIDE RAIL, FRONT LH
66424SPACER, SIDE RAIL, REAR LH
9046710201
9046804147
9090467028
18 parts on this diagram · 1 diagram in section
