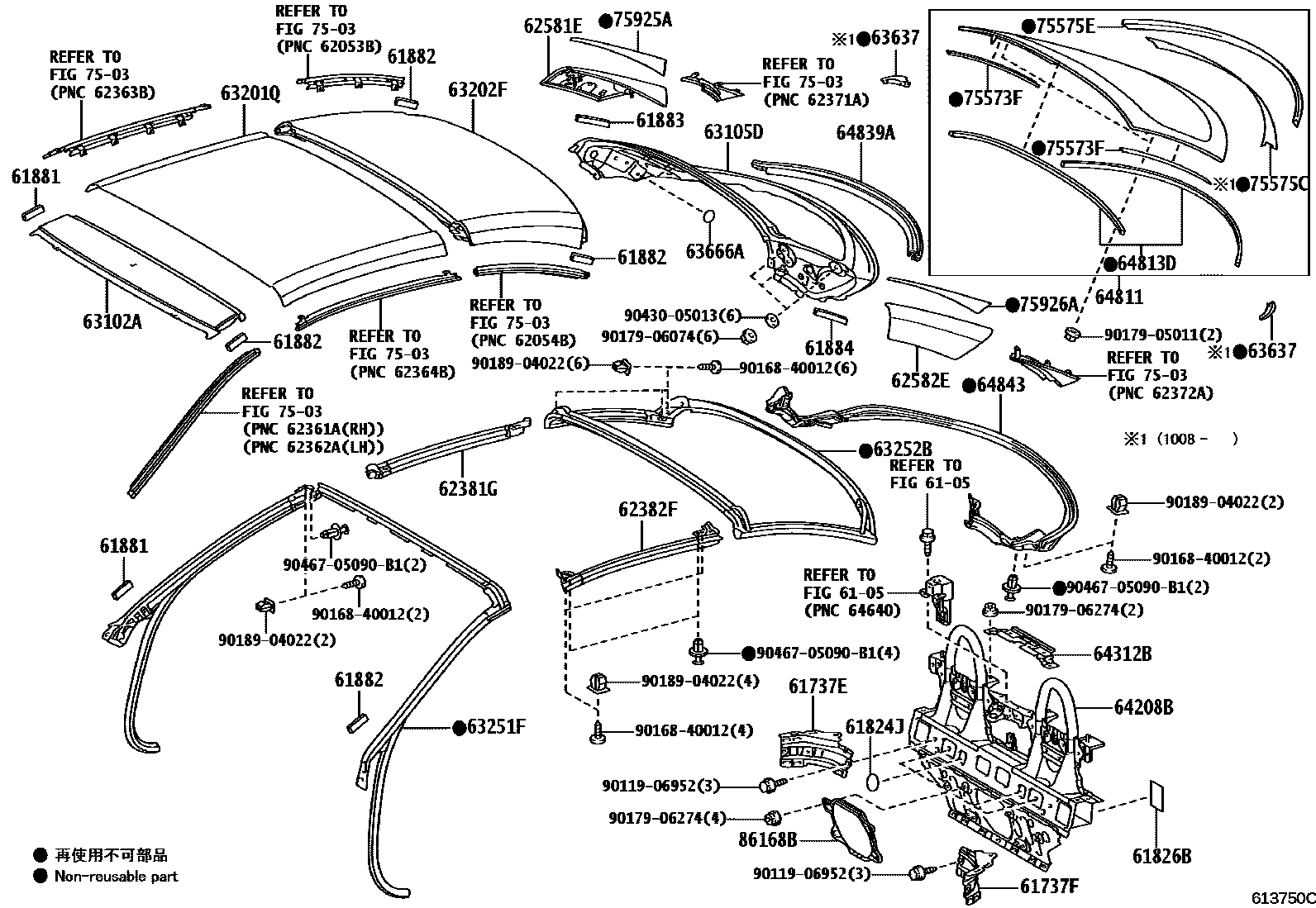

ROOF PANEL & BACK WINDOW GLASS

0001 1PANEL & GLASS 0002 1LINK & LOCK

6105

61737EREINFORCEMENT, QUARTER, INNER, RH

main61637-53020iGSE20200904-201507

61737FREINFORCEMENT, QUARTER, INNER, LH

main61638-53020iGSE20200904

61824JPAD, NOISE SHUTTER, NO.1

main61824-12050iGSE20200904-201311

main61824-12060iGSE20201312

61826BPLATE, NOISE CONTROL, NO.3

main61826-52020iGSE20200904

61881SEAL, ROOF SIDE RAIL, FRONT RH

main61881-53010iGSE20200904-200907

61882SEAL, ROOF SIDE RAIL, FRONT LH

main61881-53010iGSE20200904-200907

61883SEAL, ROOF SIDE RAIL, REAR RH

main61883-53010iGSE20200904

61884SEAL, ROOF SIDE RAIL, REAR LH

main61883-53010iGSE20200904

62381GWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-53010iGSE20200904

62382FWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-53010iGSE20200904

62581EGARNISH, QUARTER PILLAR, RH

main75055-53010iGSE20200904

62582EGARNISH, QUARTER PILLAR, LH

main75056-53010iGSE20200904

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-53070iGSE20200904-201302

sub63102-53071

main63102-53071iGSE20201303

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-53020iGSE20200904

63201QPANEL SUB-ASSY, SLIDE ROOF, FRONT

main63201-53040iGSE20200904-201404

sub63201-53041

main63201-53041iGSE20201405

63202FPANEL SUB-ASSY, SLIDE ROOF, REAR

main63202-53030iGSE20200904

63251FWEATHERSTRIP, REMOVABLE ROOF, FRONT

main63251-53040iGSE20200904

63252BWEATHERSTRIP, REMOVABLE ROOF, REAR

main63252-53010iGSE20200904

63637GARNISH, REMOVABLE ROOF

main64571-53030iGSE20201008-201011

RH

sub64571-53031

main64571-53031iGSE20201011

RH

main64572-53030iGSE20201008-201011

LH

sub64572-53031

main64572-53031iGSE20201011

LH

63666APROTECTOR, ROOF, REAR

main68678-53010iGSE20200904

64208BMEMBER SUB-ASSY, ROOM PARTITION CROSS

main64208-53010iGSE20200904

64312BBRACKET, PACKAGE TRAY, RH

main64321-53030iGSE20200904

64811GLASS, BACK WINDOW

main64801-53060iGSE20200904-201008

main64801-53061iGSE20201008

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-64010iGSE20200904

64839APACKING, BACK WINDOW

main64839-53010iGSE20200904

64843WEATHERSTRIP, BACK WINDOW CHANNEL

main64843-53010iGSE20200904

7503

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-53010iGSE20200904

75575CMOULDING, BACK WINDOW, LOWER

main75575-53010iGSE20201008

75575EMOULDING, BACK WINDOW, OUTSIDE LOWER

main75571-53030iGSE20200904-201008

main75571-53031iGSE20201008

75925ATAPE, BLACK OUT, NO.3 RH

main75925-53010iGSE20200904

75926ATAPE, BLACK OUT, NO.3 LH

main75926-53010iGSE20200904

86168BCOVER, SPEAKER MOUNTING

main86168-53010iGSE20200904

9011906952

main90119-06952

9016840012

main90168-40012

9017905011

main90179-05011

9017906074

main90179-06074

9017906274

main90179-06274

9018904022

main90189-04022

9043005013

main90430-05013

9046705090B1

main90467-05090B1

42 parts on this diagram · 2 diagrams in section
