ROOF SIDE VENTILATOR

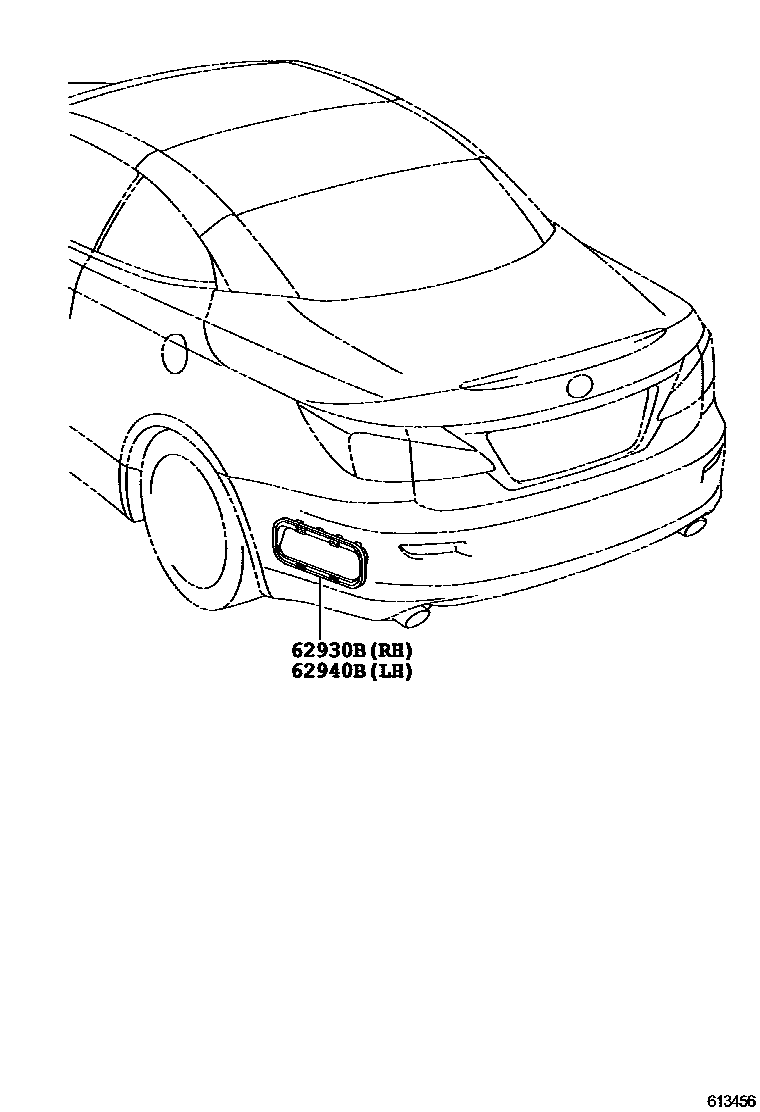

Parts diagram
62930BDUCT ASSY, QUARTER VENT, RH
main62930-12160i200904-201004
sub62930-12161
main62940-24041i201005
sub62940-24042
62940BDUCT ASSY, QUARTER VENT, LH
main62930-12160i200904-201004
sub62930-12161
main62940-24041i201005
sub62940-24042

2 parts on this diagram · 1 diagram in section
