MAT & CARPET

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-53070iGSE20..RHD..6FC200904-201408

main55214-53080iGSE20..RHD..6F200904-201008

main55214-53090iGSE20..LHD200904

main55214-53120iGSE20..RHD201408-201411

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-53060iGSE20..RHD200904-201411

main55215-53070iGSE20..LHD..6FC200904-201408

main55215-53080iGSE20..LHD..6F200904-201008

main55215-53130iGSE20..LHD201408

58191AFOOTREST, FRONT FLOOR, RH

main58191-53060supersedes 58191-53050iGSE20..RHD..6F200904-201008

ACCELERATOR PEDAL-ALUMINUM TYPE

main58191-53100supersedes 58191-53091iGSE20..RHD..6FC200904-201111

ACCELERATOR PEDAL-ALUMINUM TYPE

main58191-53101supersedes 58191-53091iGSE20..RHD201112-201411

ACCELERATOR PEDAL-ALUMINUM TYPE

58192AFOOTREST, FRONT FLOOR, LH

main58192-53051iGSE20..LHD201112

main58192-53060supersedes 58192-53050iGSE20..LHD200904-201111

ACCELERATOR PEDAL-ALUMINUM TYPE

main58192-53061iGSE20..LHD201112-201408

ACCELERATOR PEDAL-ALUMINUM TYPE

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-53500-A0iGSE20..RHD..6FC200904-201411

MELLOW WHITE,TRIM00,01,02,03,06,07

main58510-53500-C0iGSE20..RHD..6FC200904-201411

BLACK,TRIM04,05,08,1#,2#,3#,4#

main58510-53500-J0iGSE20..RHD..6FC200904-201008

BLUE,TRIM04,05,08

main58510-53510-A0iGSE20..RHD..6F200904-201008

MELLOW WHITE,TRIM00,01,02,03,06,07

main58510-53510-C0iGSE20..RHD..6F200904-201008

BLACK,TRIM2#

main58510-53510-J0iGSE20..RHD..6F200904-201008

BLUE,TRIM04,05,08

main58510-53520-A1iGSE20..LHD..6FC200904-201408

MELLOW WHITE,TRIM00,01,02,03,06,07

main58510-53520-C1iGSE20..LHD..6FC200904-201408

BLACK,TRIM04,05,08,1#,2#,3#,4#

main58510-53520-J1iGSE20..LHD..6FC200904-201008

BLUE,TRIM04,05,08

main58510-53530-A1iGSE20..LHD..6F200904-201008

MELLOW WHITE,TRIM00,01,02,03,06,07

main58510-53530-C1iGSE20..LHD..6F200904-201008

BLACK,TRIM04,05,08,2#

main58510-53530-J1iGSE20..LHD..6F200904-201008

BLUE,TRIM04,05,08

main58510-53610-A0iGSE20..RHD201408-201411

MELLOW WHITE,TRIM0#

main58510-53610-C0iGSE20..RHD201408-201411

BLACK,TRIM1#,2#,3#,4#

main58510-53620-A0iGSE20..LHD201408-201507

MELLOW WHITE,TRIM0#

main58510-53620-C0iGSE20..LHD201408-201507

BLACK,TRIM1#,2#,3#,4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main51454-48010×2iGSE20200904

58521BHOOK, FLOOR CARPET

main58521-53060×8iGSE20200904

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-05164-B8×2iGSE20200904-200912

LT.GRAY

main90467-05164-C0×2iGSE20200912-201507

BLACK

58571FPAD, FRONT FLOOR, FRONT

main58571-53010iGSE20..6FC200904

main58571-53020iGSE20..6F200904-201008

58575EPAD, FRONT FLOOR, REAR NO.1

main58575-53010iGSE20200904-201305

main58575-53011iGSE20201305

58576CPAD, FRONT FLOOR, REAR NO.2

main58576-53010iGSE20200904-201305

main58576-53011iGSE20201305

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-53040iGSE20200904-201305

main58621-53041iGSE20201305

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-53040iGSE20200904-201305

main58622-53041iGSE20201305

58694BPLATE, MAT SET, UPPER

main58694-78010×2iGSE20201408

58698CPLATE, MAT SET, LOWER

main58698-78010×2iGSE20201408

5819820210CLIP, FOOTREST

main58198-20210

6213553010FRAME, REAR SIDE WINDOW

main62135-53010

9016840086

main90168-40086

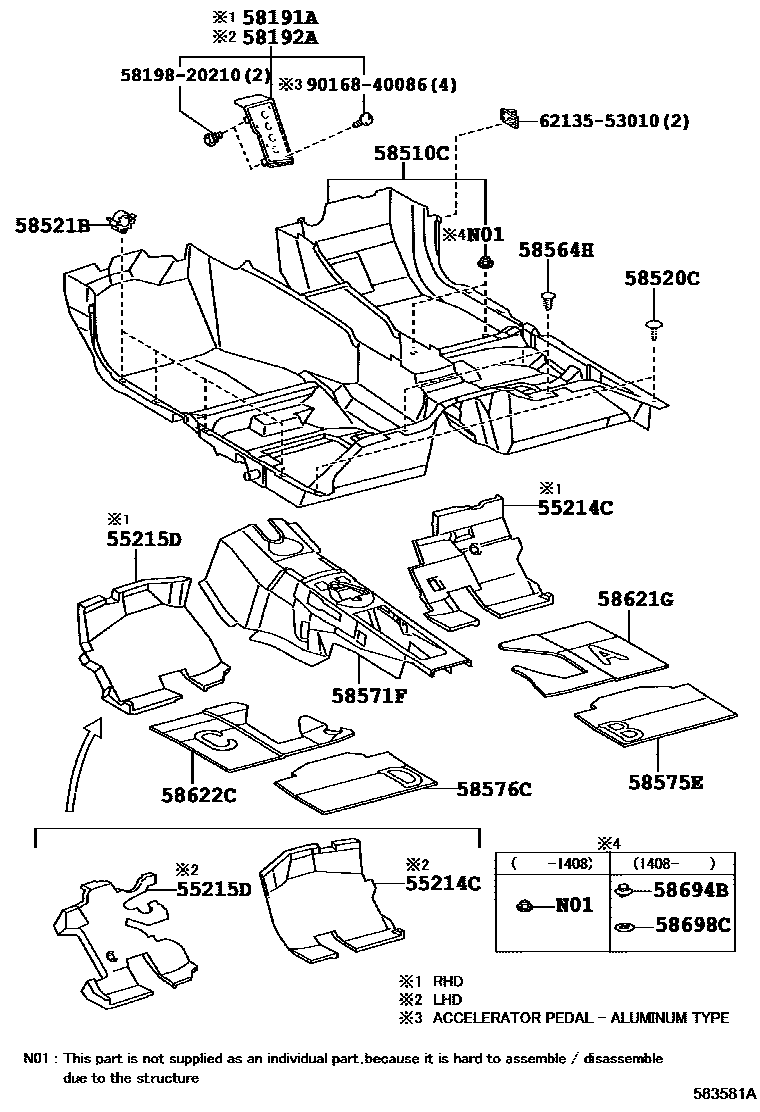

18 parts on this diagram · 1 diagram in section
