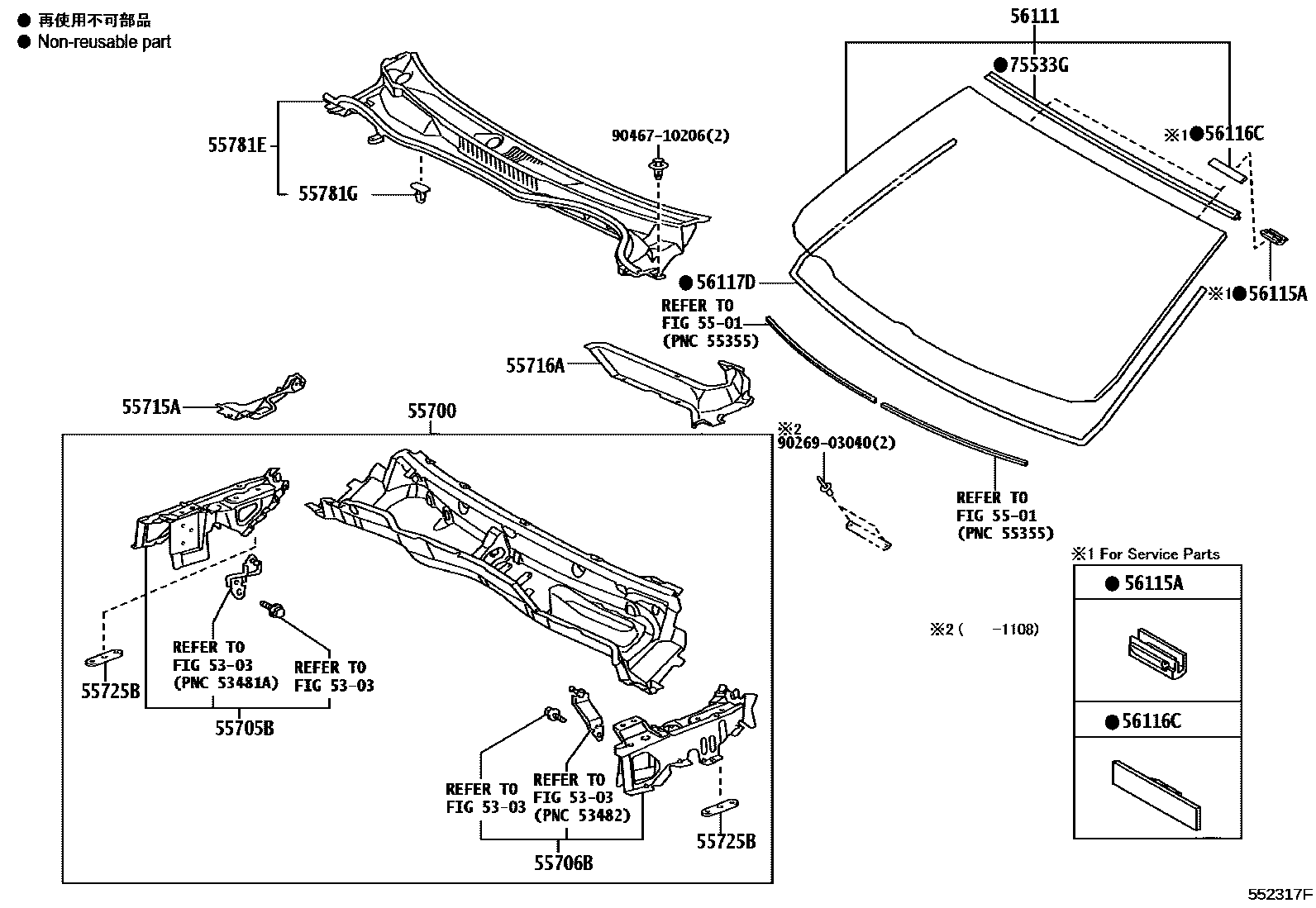

COWL PANEL & WINDSHIELD GLASS

5303

5501

55700PANEL ASSY, FRONT

main55700-53904i200904-201108

main55700-53905i200904-201108

main55700-53906i201108

main55700-53907i201108-201411

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-53010i200904-201507

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-53010i200904

55715ABRACE, COWL TOP TO APRON, RH

main55715-53030i200904-201411

main55715-53040i200904

55716ABRACE, COWL TOP TO APRON, LH

main55716-53030i200904-201411

main55716-53040i200904

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020×2i200904

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-53050i200904-200908

main55708-53051i200909-201411

main55708-53060i200904-200908

main55708-53061i200909

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108×7i200904

56111GLASS, WINDSHIELD

main56101-53240i200904-201008

*LAM,T=4.76,GREEN,TAIWAN SPEC

main56101-53250i201208

*LAM,T=4.76,GREEN,TAIWAN SPEC&F SPORT&WINDSHIELD DEICER-WITHOUT

main56101-53270supersedes 56101-53260i200904

*EHL,T=4.76,GREEN,LUXURY PACKAGE

main56101-53290supersedes 56101-53280i200904-201411

*EHL,T=4.76,GREEN,LUXURY PACKAGE

main56101-53300i201008-201411

*LAM,T=4.76,GREEN,WINDSHIELD DEICER-WITHOUT

main56101-53310i201008-201411

*LAM,T=4.76,GREEN,LUXURY PACKAGE&WINDSHIELD DEICER-WITHOUT

main56101-53A40i201308-201411

*LAM,T=4.76,GREEN,AUSTRALIA SPEC&LUXURY PACKAGE&WINDSHIELD DEICER-WITHOUT&EMV & NAVIGATION SYSTEM-HDD NAVIGATION

main56101-53A50i201308-201411

*LAM,T=4.76,GREEN,AUSTRALIA SPEC&WINDSHIELD DEICER-WITHOUT&EMV & NAVIGATION SYSTEM-HDD NAVIGATION

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30110×2i200904

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i200904

56117DDAM, WINDSHIELD GLASS ADHESIVE

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-53040i200904

9026903040

main90269-03040

9046710206

main90467-10206

17 parts on this diagram · 2 diagrams in section
