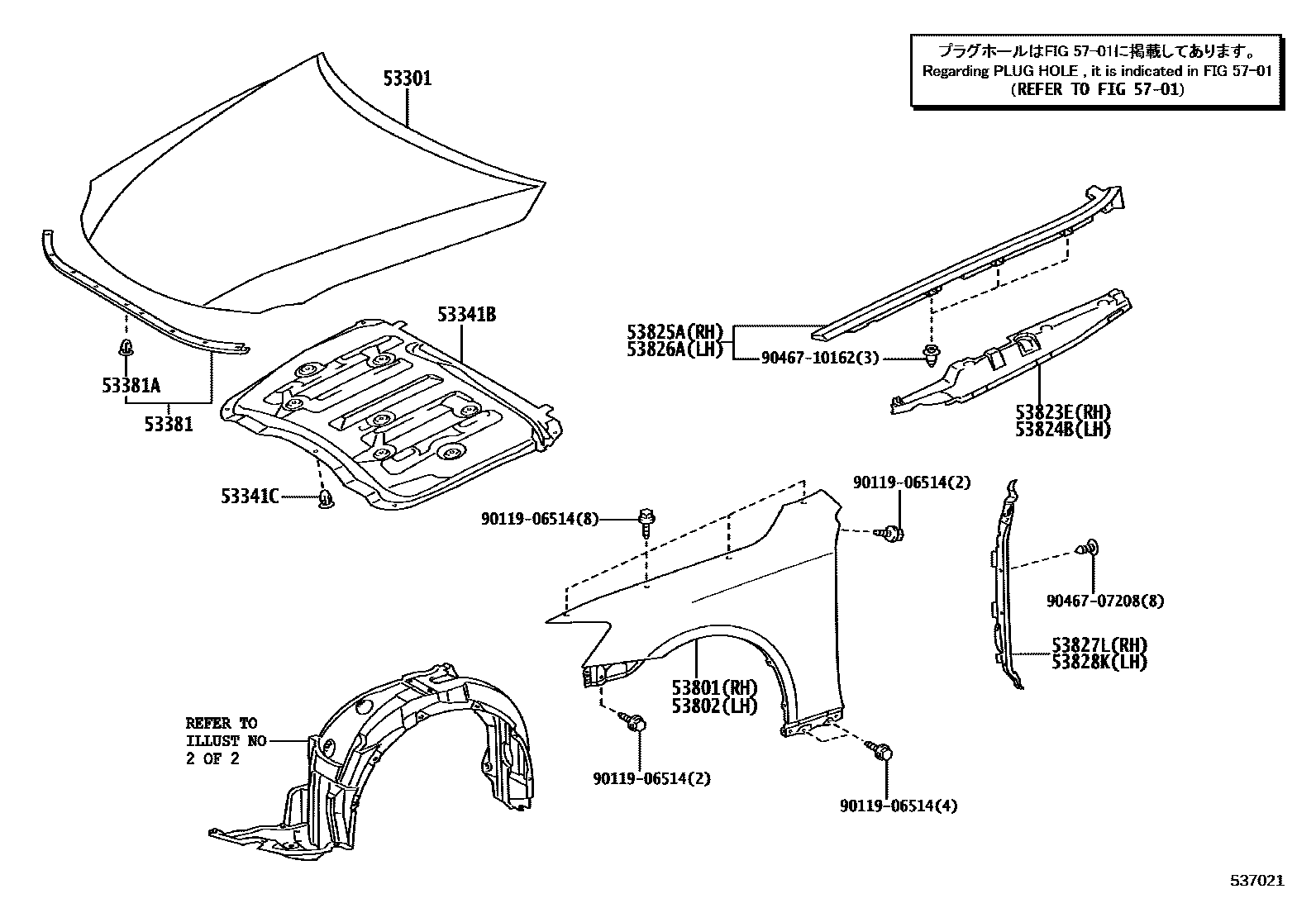

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-53030iGSE20¥104,000200904-201507

53341BINSULATOR, HOOD

main53341-53030iGSE20¥9,100200904

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iGSE20¥120200904

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-53020iGSE20¥1,650200904

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iGSE20¥100200904

53801FENDER SUB-ASSY, FRONT RH

main53801-53120iGSE20¥63,200200904-201507

53802FENDER SUB-ASSY, FRONT LH

main53802-53120iGSE20¥63,200200904-201507

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-53010iGSE20¥2,240200904

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-53010iGSE20¥2,190200904

53825APROTECTOR, FRONT FENDER, UPPER RH

main53807-53011iGSE20¥3,150200904

53826APROTECTOR, FRONT FENDER, UPPER LH

main53808-53011iGSE20¥2,910200904

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-53030iGSE20¥3,220200904

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-53030iGSE20¥3,220200904

5701

9011906514

main90119-06514¥100

9046707208

main90467-07208¥110

9046710162

main90467-10162¥90

17 parts on this diagram · 2 diagrams in section
