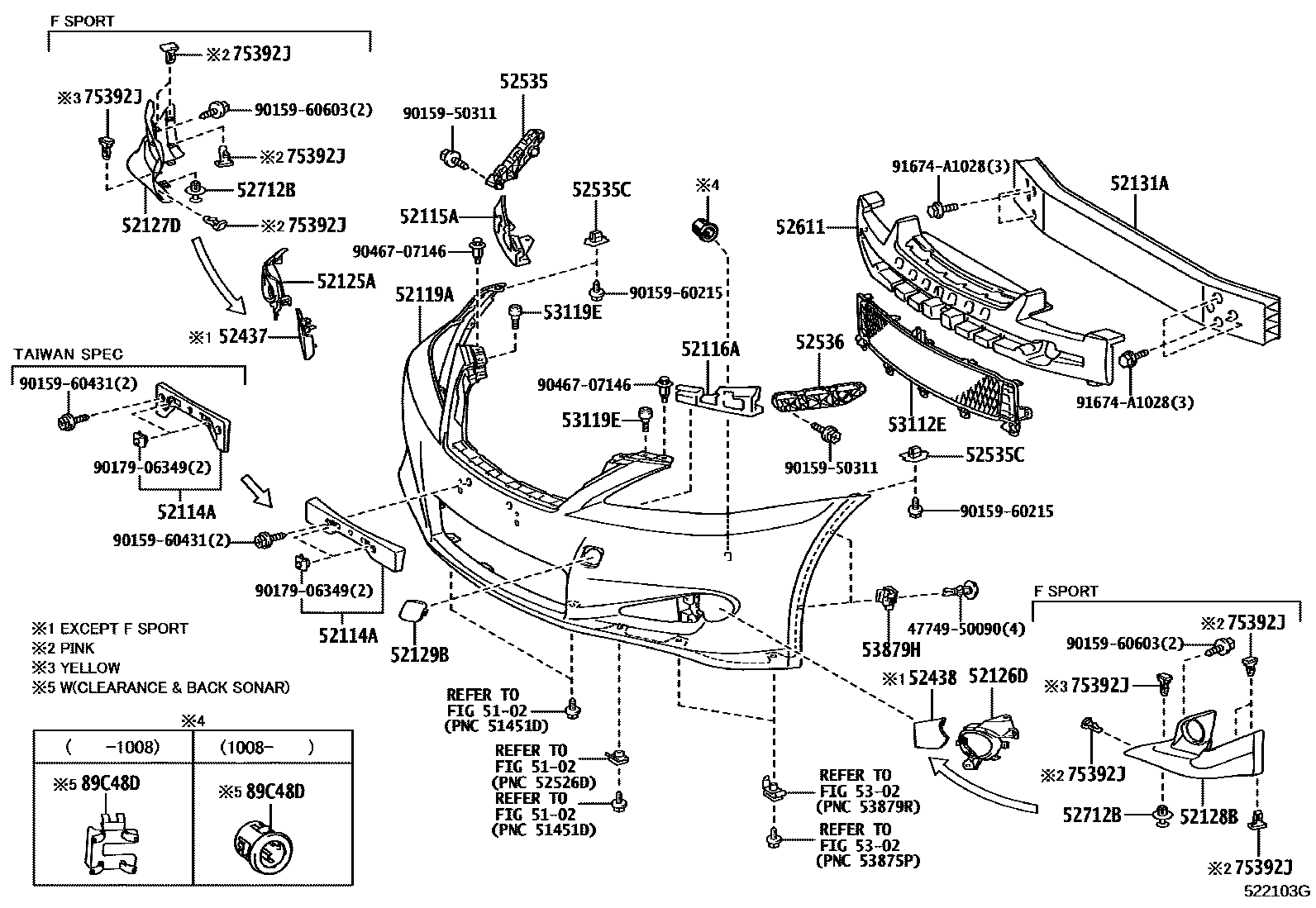

FRONT BUMPER & BUMPER STAY
5102
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
TAIWAN SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)
TAIWAN SPEC&F SPORT&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)
F SPORT&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&HEADLAMP-DISCHAGE & WITH(AUTOLEVELING)
52115ASUPPORT, FRONT BUMPER SIDE, RH
F SPORT&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)
CHILE SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)
52116ASUPPORT, FRONT BUMPER SIDE, LH
F SPORT&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)
CHILE SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)
52119ACOVER, FRONT BUMPER
PAINT REQ.,PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
PAINT REQ.
PAINT REQ.,TAIWAN SPEC
PAINT REQ.,TAIWAN SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
PAINT REQ.,F SPORT&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&HEADLAMP-DISCHAGE& WITH(AUTO LEVELING)
PAINT REQ.,TAIWAN SPEC&F SPORT&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)
PAINT REQ.,AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)
PAINT REQ.,TAIWAN SPEC
PAINT REQ.,TAIWAN SPEC&LUXURY PACKAGE&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)
52125ABRACKET, FOG LAMP MOUNTING, RH
CROATIA SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
RUSSIA SPEC
F SPORT&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&HEADLAMP-DISCHAGE & WITH(AUTOLEVELING)
52126DBRACKET, FOG LAMP MOUNTING, LH
CROATIA SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
RUSSIA SPEC
F SPORT&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&HEADLAMP-DISCHAGE & WITH(AUTOLEVELING)
52127DCOVER, FRONT BUMPER HOLE, RH
F SPORT,WHITE NOVA GF.,083
F SPORT,MERCURY GRAY MC.,1H9
F SPORT,PLATINUM SILVER ME.,1J4
F SPORT,BLACK,212
F SPORT,STARLIGHT BLACK GF.,217
F SPORT,RED MC.CS.,3R1
F SPORT,BLUE ME.,8U1
52128BCOVER, FRONT BUMPER HOLE, LH
F SPORT,WHITE NOVA GF.,083
F SPORT,MERCURY GRAY MC.,1H9
F SPORT,PLATINUM SILVER ME.,1J4
F SPORT,BLACK,212
F SPORT,STARLIGHT BLACK GF.,217
F SPORT,RED MC.CS.,3R1
F SPORT,BLUE ME.,8U1
52129BCOVER, FRONT BUMPER, LOWER
TAIWAN SPEC&F SPORT&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING),BLACK(LESS COLOR)
52131AREINFORCEMENT, FRONT BUMPER
52437COVER, FRONT BUMPER GUARD, RH
52438COVER, FRONT BUMPER GUARD, LH
52535RETAINER, FRONT BUMPER SIDE, RH
52535CRETAINER, FRONT BUMPER SIDE
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
F SPORT&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&HEADLAMP-DISCHAGE & WITH(AUTOLEVELING)
52712BCLIP, FRONT BUMPER MOULDING
F SPORT
5302
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.,F SPORT&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)
53119EPROTECTOR, RADIATOR GRILLE
53879HRETAINER, FRONT FENDER LINER
75392JRETAINER, OUTSIDE MOULDING
F SPORT,PINK
F SPORT,YELLOW
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
WHITE PEARL CS.,077
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SILVER M.M.,1G1
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
LAPIS LAZULI MC.,8V3
SILVERY BLUE ME.,8U9
BLUE ME.,8U1
CATTLEYA M.M.,9AL
WHITE PEARL CS.,077
SILVER M.M.,1G1
DK.GRAY MC.,1G0
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
BLUE ME.,8U1
SILVERY BLUE ME.,8U9
LAPIS LAZULI MC.,8V3
CATTLEYA M.M.,9AL
4774950090CLIP, PIN HOLD
main47749-50090
9015950311
main90159-50311
9015960215
main90159-60215
9015960431
main90159-60431
9015960603
main90159-60603
9017906349
main90179-06349
9046707146
main90467-07146
91674A1028
main91674-A1028
32 parts on this diagram · 1 diagram in section
