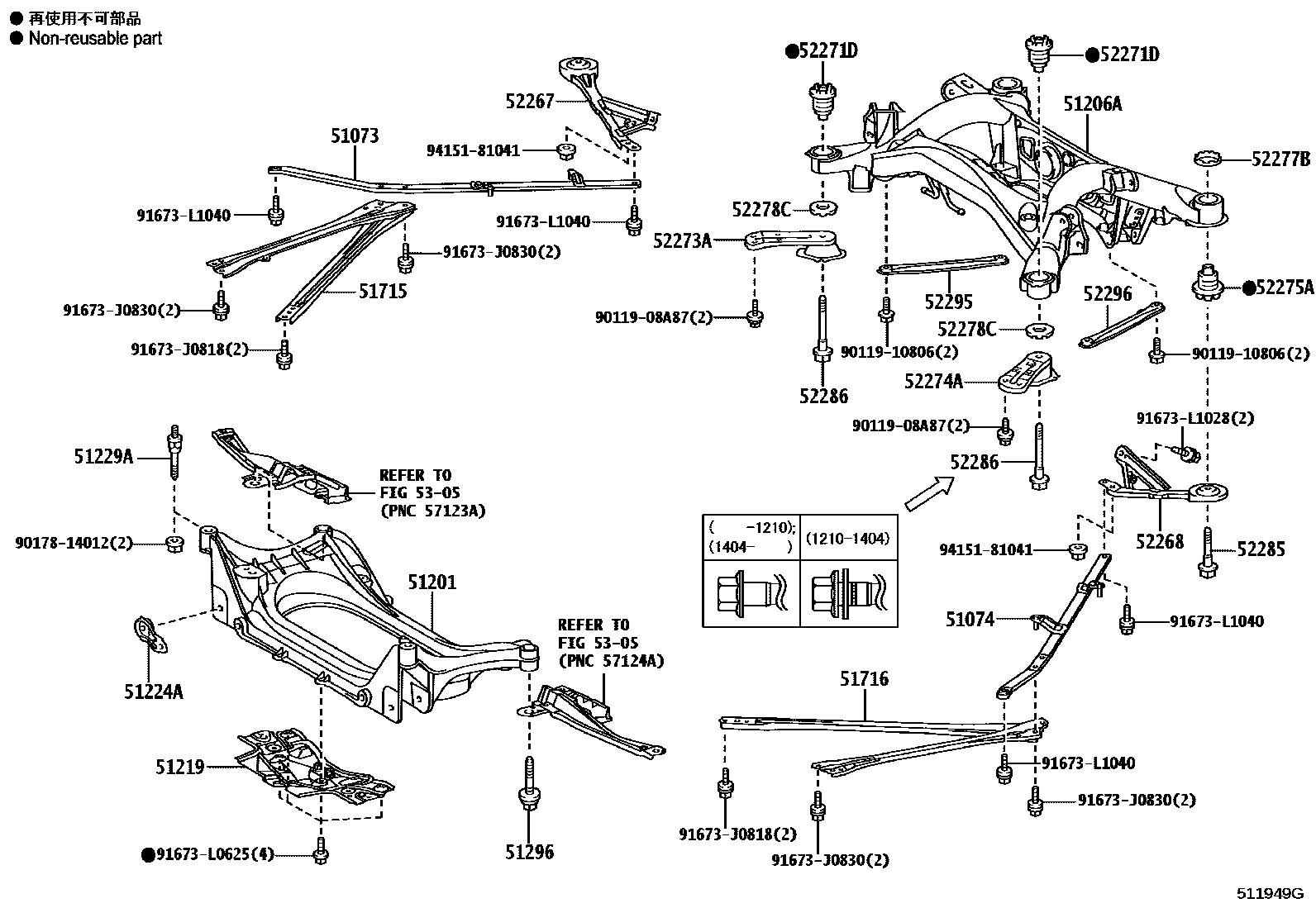

SUSPENSION CROSSMEMBER & UNDER COVER
51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH
51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH
51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR
51224APLATE, FRONT SUSPENSION MENBER BRACE
51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING
51296BOLT, FRONT SUSPENSION MEMBER MOUNTING
51715BRACKET, BODY SUPPORT, REAR RH
51716BRACKET, BODY SUPPORT, REAR LH
52267REINFORCE, REAR SUSPENSION MEMBER LOWER STOPPER, RH
52268REINFORCE, REAR SUSPENSION MEMBER LOWER STOPPER, LH
52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH
52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH
52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2
REFER ILLUST.
REFER ILLUST.
52295BRACE, REAR SUSPENSION MEMBER, RH
52296BRACE, REAR SUSPENSION MEMBER, LH
5305
9011908A87
main90119-08A87
9011910806
main90119-10806
9017814012
main90178-14012
91673J0818
main91673-J0818
91673J0830
main91673-J0830
91673L0625
main91673-L0625
91673L1028
main91673-L1028
91673L1040
main91673-L1040
9415181041
main94151-81041
32 parts on this diagram · 2 diagrams in section
