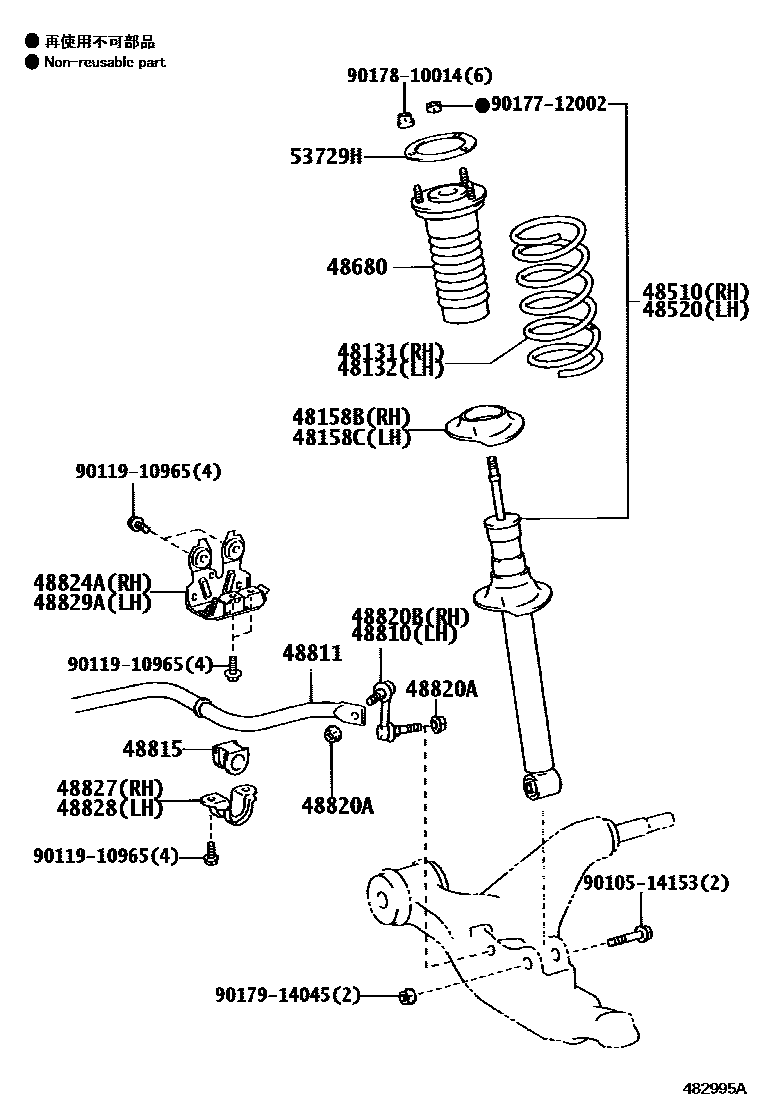

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-53310iGSE20200904

48132SPRING, FRONT COIL, LH

main48131-53310iGSE20200904

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-30020iGSE20200904

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-30020iGSE20200904

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80492iGSE20200904-201507

MARK 48510-53210

main48510-80597iGSE20201208-201507

MARK 48510-53200,F SPORT

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-59585iGSE20200904-201507

MARK 48520-53120

main48520-59695iGSE20201208-201507

MARK 48520-53190,F SPORT

48680SUPPORT ASSY, FRONT SUSPENSION

main48680-53030×2iGSE20200904-201212

main48680-53031×2iGSE20201301

48810LINK ASSY, FRONT STABILIZER, LH

main48810-30070iGSE20200904

48811BAR, STABILIZER, FRONT

main48811-30661iGSE20200904

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-30570×2iGSE20200904-201010

main48815-30571×2iGSE20201011

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241×4iGSE20200904

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-30090iGSE20200904

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-30090iGSE20200904-201106

main48809-30130iGSE20201107

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48824-30130iGSE20200904

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48824-30130iGSE20200904

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48809-30090iGSE20200904-201106

main48809-30130iGSE20201107

53729HREINFORCEMENT, FRONT SPRING SUPPORT, NO.3

main53729-53020×2iGSE20200904

9010514153

main90105-14153

9011910965

main90119-10965

9017712002

main90177-12002

9017810014

main90178-10014

9017914045

main90179-14045

22 parts on this diagram · 1 diagram in section
