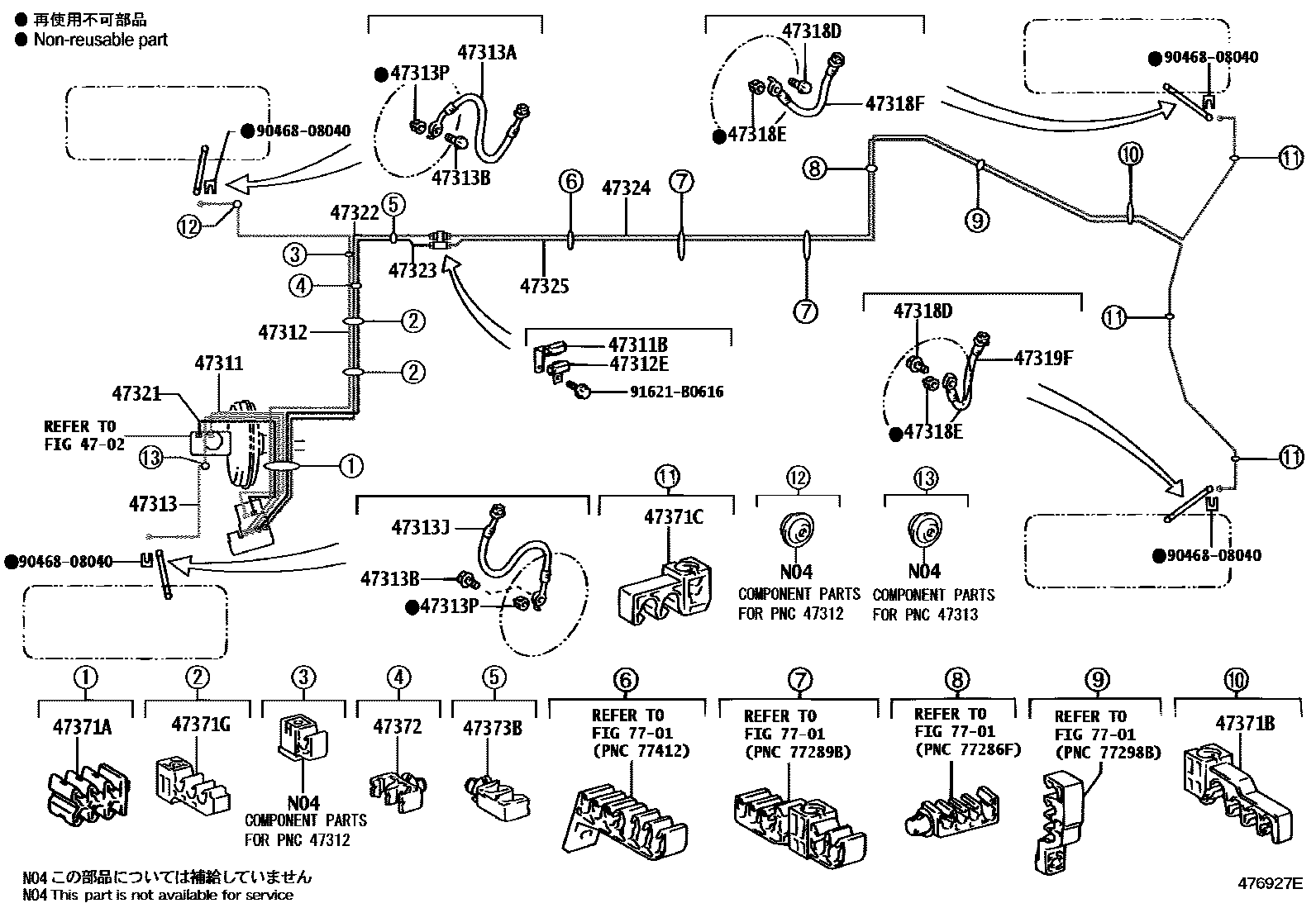

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-53170iGSE20..RHD200904-201411

main47311-53180iGSE20..LHD200904

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10250iGSE20200904

47312TUBE, FRONT BRAKE, NO.2

main47312-53190iGSE20..RHD200904-201411

main47312-53210iGSE20..LHD200904

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10278iGSE20200904

47313TUBE, FRONT BRAKE, NO.3

main47313-53190iGSE20..RHD200904-201411

main47313-53220iGSE20..LHD200904

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02F72iGSE20200904-200911

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iGSE20200904

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02F72iGSE20200904-200911

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iGSE20200904

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iGSE20200904

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iGSE20200904

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02F71iGSE20200904-200911

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02F71iGSE20200904-200911

47321TUBE, REAR BRAKE, NO.1

main47321-53140iGSE20..RHD200904-201411

main47321-53150iGSE20..LHD200904

47322TUBE, REAR BRAKE, NO.2

main47322-53180iGSE20..RHD200904-201411

main47322-53200iGSE20..LHD200904

47323TUBE, REAR BRAKE, NO.3

main47323-53160iGSE20..RHD200904-201411

main47323-53180iGSE20..LHD200904

47324TUBE, REAR BRAKE, NO.4

main47324-53070iGSE20200904

47325TUBE, REAR BRAKE, NO.5

main47325-53060iGSE20200904

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01C51iGSE20200904

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D09iGSE20200904

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01D11iGSE20200904

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D08iGSE20..LHD200904

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D12iGSE20200904

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D13iGSE20200904

7701

9046808040

main90468-08040

91621B0616

main91621-B0616

28 parts on this diagram · 4 diagrams in section
