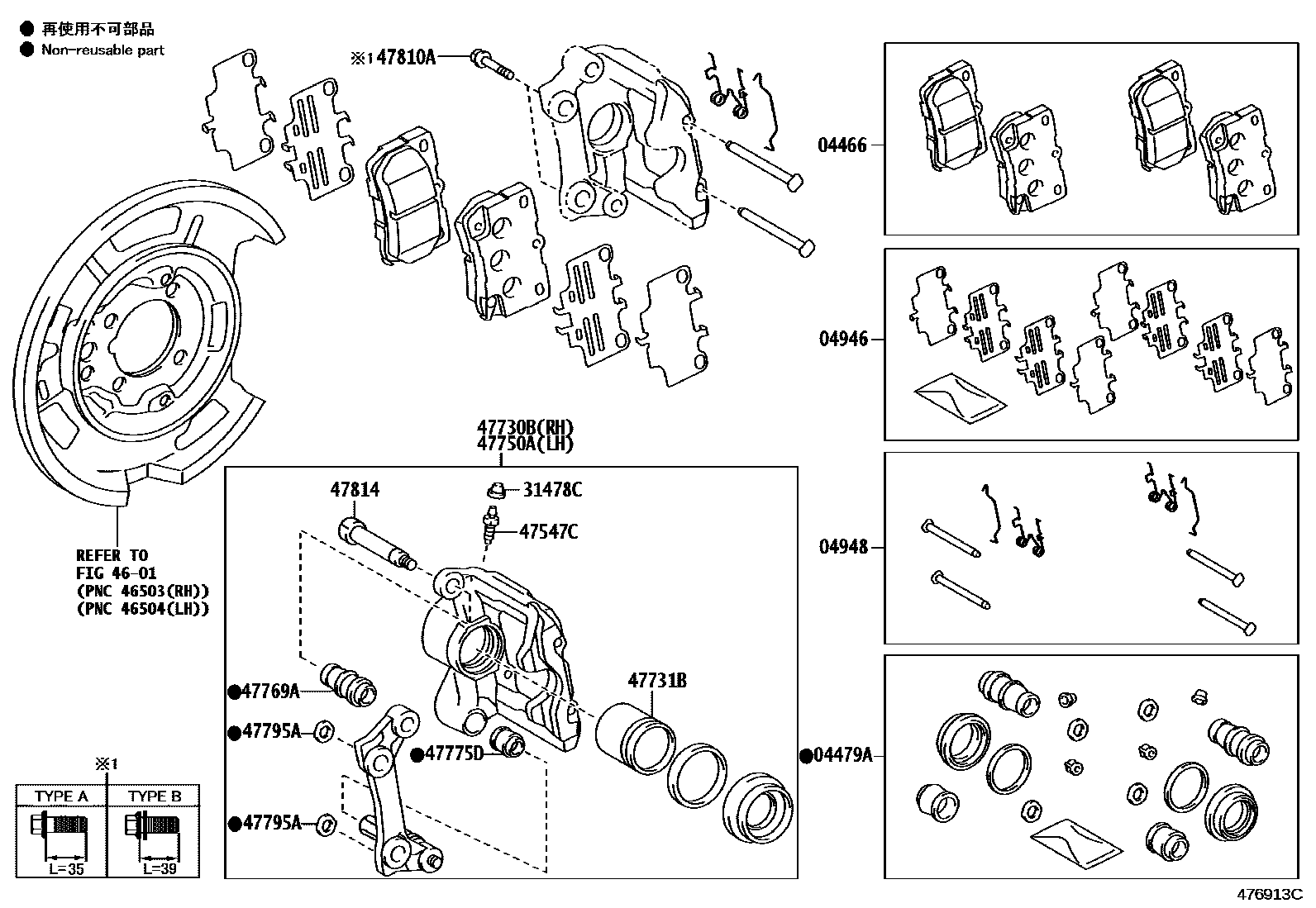

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-22190iGSE20200904-201308

MARK NBK PN529H

main04466-30300iGSE20201308-201507

MARK NBK PN529H

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30510iGSE20200904-201104

sub04479-53070

main04479-53070iGSE20201104-201308

main04479-53090iGSE20201308

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30110iGSE20200904-201308

main04946-47080iGSE20201308

04948FITTING KIT, DISC BRAKE, REAR

main04948-30210iGSE20200904-201308

main04948-30240iGSE20201308

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGSE20200904

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iGSE20201308

main47547-27030iGSE20200904-201308

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-53070iGSE20200904-201212

PNC 47810A=TYPE A

main47830-53071iGSE20201212-201308

PNC 47810A=TYPE B

main47830-53100iGSE20201308

47731BPISTON, REAR DISC BRAKE

main47831-30300iGSE20200904

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-53070iGSE20200904-201212

PNC 47810A=TYPE A

main47850-53071iGSE20201212-201308

PNC 47810A=TYPE B

main47850-53100iGSE20201308

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-30300iGSE20200904-201308

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-30340iGSE20200904-201104

sub47875-30341

main47875-30341iGSE20201104-201308

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30300iGSE20200904

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525iGSE20200904-201212

TYPE A:REFER ILLUST.

main90119-12416iGSE20201212-201507

TYPE B:REFER ILLUST.

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300iGSE20200904-201308

main47814-33240iGSE20201308

15 parts on this diagram · 2 diagrams in section
