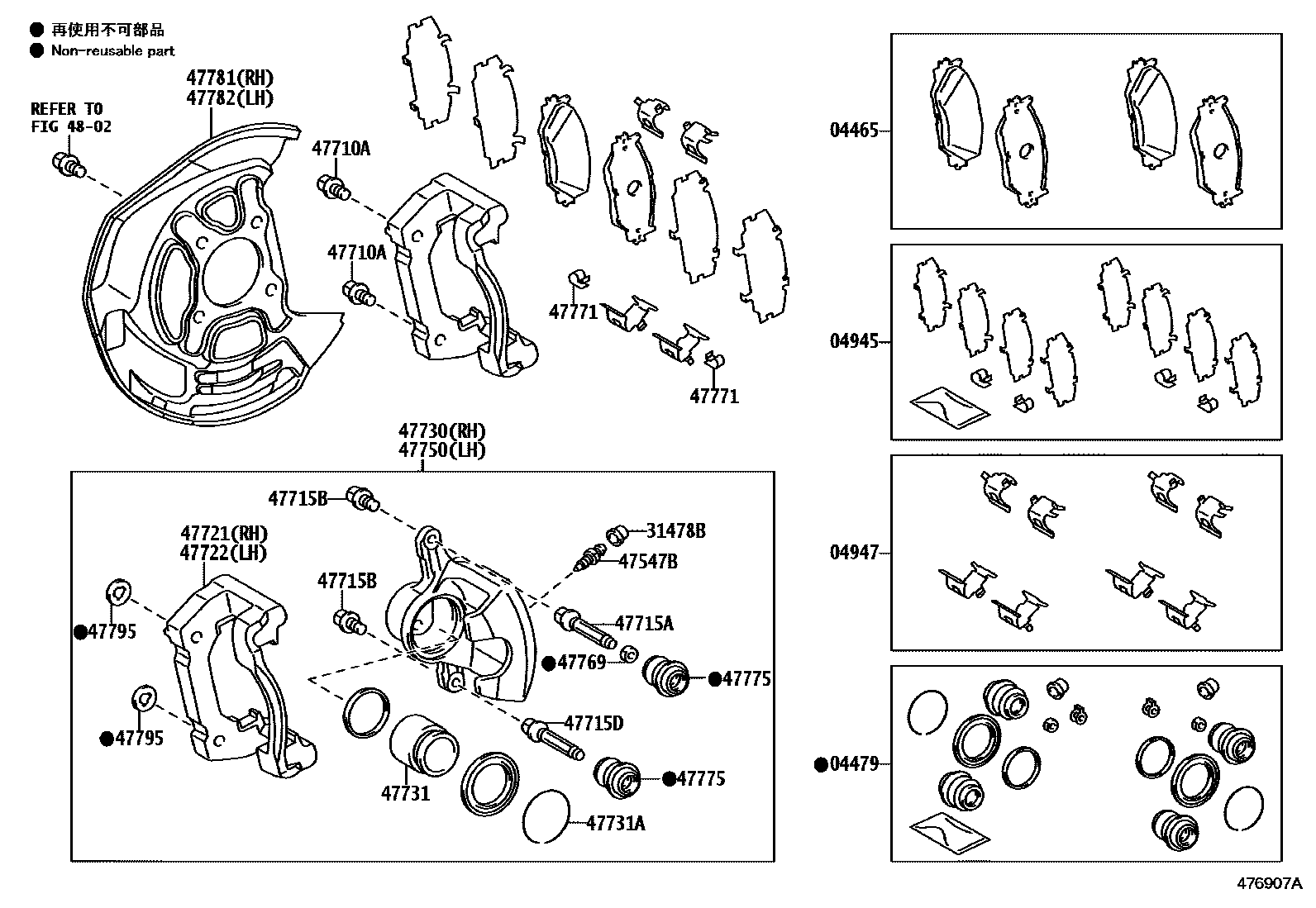

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-53040iGSE20¥11,600200904-201507

MARK TEXTAR T4146

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-30250iGSE20¥3,420200904

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-53050iGSE20¥2,950200904

04947FITTING KIT, DISC BRAKE, FRONT

main04947-53020iGSE20¥2,760200904

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGSE20¥160200904

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iGSE20¥180200904

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12415iGSE20¥190201111-201507

*12-1.25PX45-30

main91552-K1240iGSE20¥190200904-201111

*12-1.25PX40-30

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iGSE20¥620200904

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iGSE20¥90200904

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-52190iGSE20¥360200904

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-53060iGSE20¥7,000200904

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-53060iGSE20¥7,000200904

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-53060iGSE20¥39,400200904

47731PISTON, FRONT DISC BRAKE

main47731-53060iGSE20¥2,370200904

sub47731-12A10¥1,250

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005iGSE20¥190200904

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-53060iGSE20¥39,400200904

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iGSE20¥50200904

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33340iGSE20¥120200904

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-50010iGSE20¥580200904

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-30220iGSE20¥1,820200904-201507

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-30220iGSE20¥1,820200904-201507

47795PLATE, FRONT DISC BRAKE CALIPER, NO.1

main47795-30520iGSE20¥240200904

4802

23 parts on this diagram · 1 diagram in section
