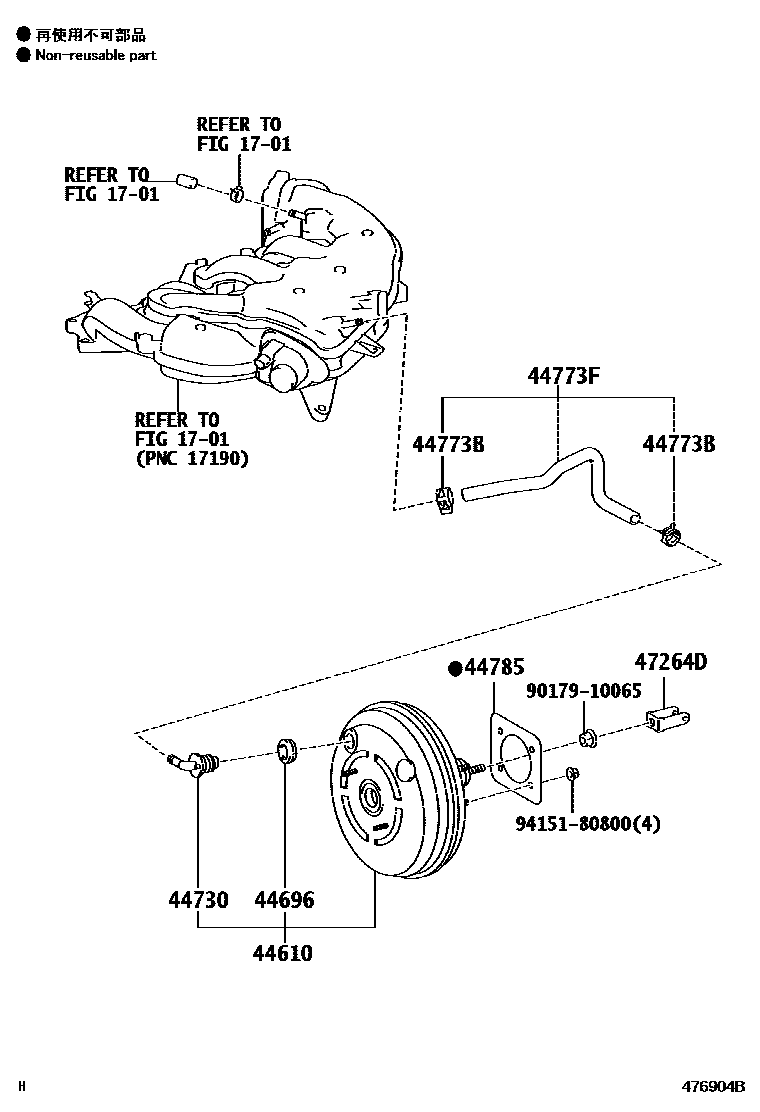

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

44610BOOSTER ASSY, BRAKE

main44610-53251iGSE20..RHD¥50,400200904-201411

main44610-53281iGSE20..LHD¥50,200200904-201507

44696GROMMET, CHECK VALVE

main90480-24439iGSE20¥390200904

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iGSE20..LHD¥1,720200904-201507

main44730-20080iGSE20..RHD¥1,360200904-201411

44773HOSE, VACUUM, NO.2

main44773-53050iGSE20..RHD¥650200904-201411

44773BCLIP, NO.2(FOR VACUUM HOSE, NO.2)

main90467-16014iGSE20..RHD¥230200904-201411

44773FHOSE, UNION TO CHECK VALVE

main44750-53120iGSE20..LHD¥1,350200904

main44773-53040iGSE20..RHD¥1,140200904-201411

44785GASKET, BRAKE BOOSTER

main44785-47010iGSE20¥250200904

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iGSE20¥320200904

9017910065

main90179-10065¥90

9415180800

main94151-80800¥80

11 parts on this diagram · 2 diagrams in section
