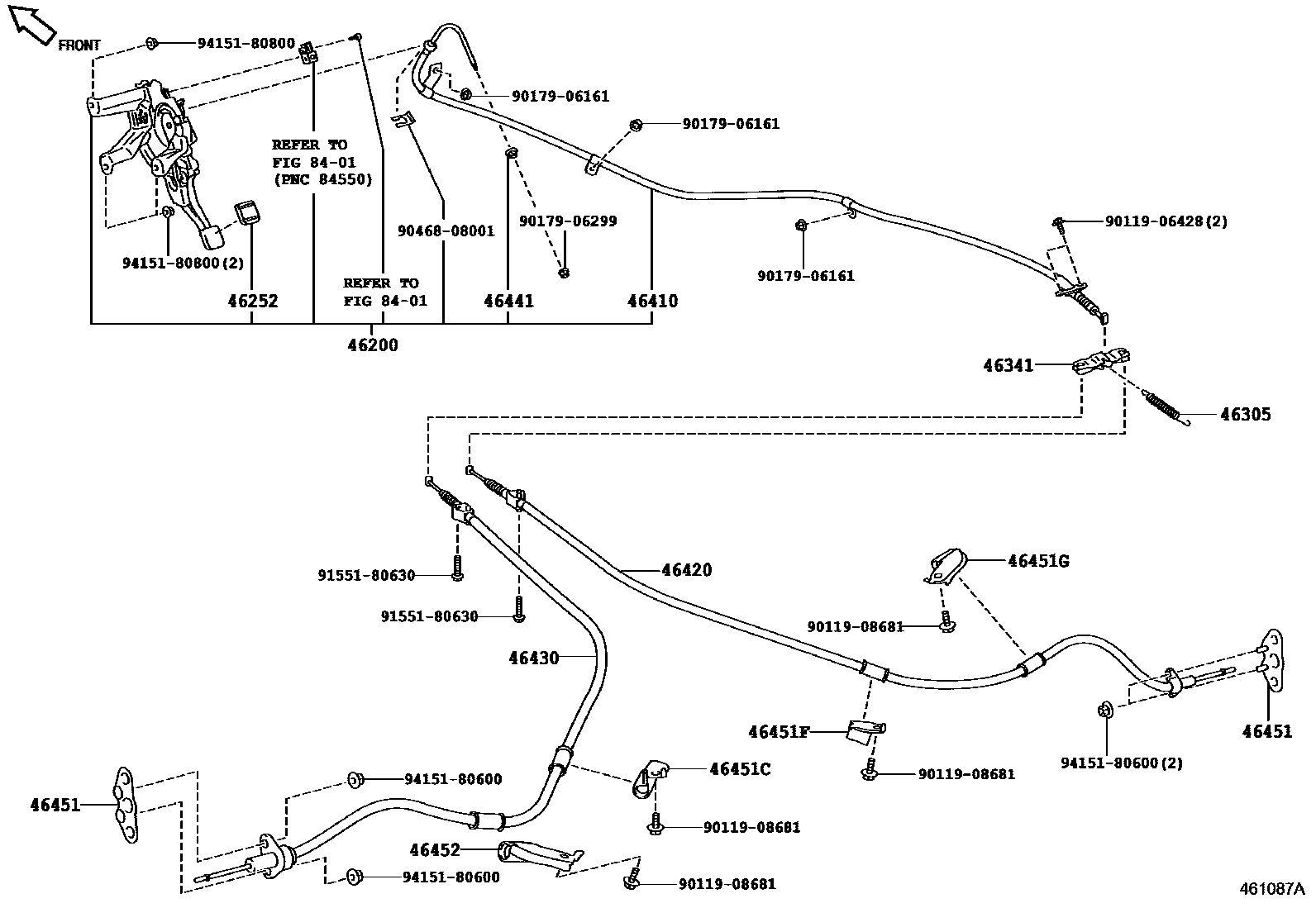

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1 0005 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-53010iGSE20..RHD..6FC200904-201411

main46200-53020iGSE20..LHD..6FC200904-201507

46252PAD, PARKING PEDAL

main46252-22010iGSE20..6FC200904-201404

main46252-47010iGSE20201405

46305SPRING, PARKING BRAKE RETURN W/DAMPER

main46305-53010iGSE20200904

46341EQUALIZER, PARKING BRAKE

main46341-22060iGSE20200904

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-53030iGSE20..RHD..6FC200904-201411

main46410-53040iGSE20..LHD..6FC200904

main46410-53060iGSE20..6F200904-201008

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-53020iGSE20200904-201007

sub46420-53021

sub46601-30231

sub46602-30231

main46420-53021iGSE20201007

46430CABLE ASSY, PARKING BRAKE, NO.3

main46420-53020iGSE20200904-201007

sub46420-53021

sub46601-30231

sub46602-30231

main46420-53021iGSE20201007

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iGSE20200904

46451BRACKET, CABLE SUPPORT

main46451-50050iGSE20200904-201507

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-30180iGSE20200904

46451FBRACKET, CABLE SUPPORT

main46451-22100iGSE20200904

46451GBRACKET, CABLE SUPPORT

main46451-30190iGSE20200904

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-30200iGSE20200904

8401

9011906428

main90119-06428

9011908681

main90119-08681

9017906161

main90179-06161

9017906299

main90179-06299

9046808001

main90468-08001

9155180630

main91551-80630

9415180600

main94151-80600

9415180800

main94151-80800

22 parts on this diagram · 5 diagrams in section
