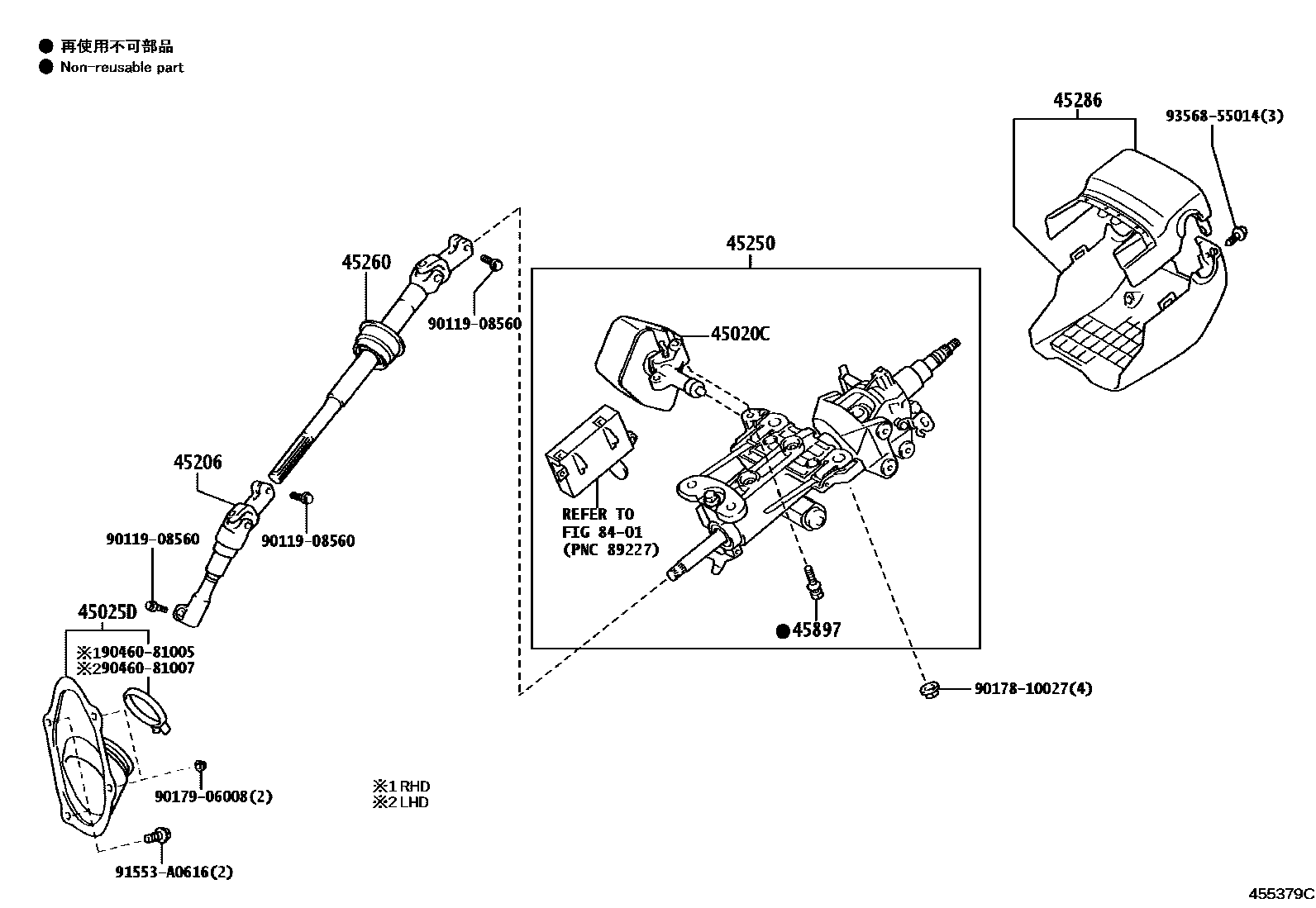

STEERING COLUMN & SHAFT

0001 1 0002 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30A60iGSE20200904-201507

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30350iGSE20..RHD200904-201411

main45025-30390iGSE20..LHD200904

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-30111iGSE20..LHD200904-201112

main45206-30112iGSE20..LHD201112

main45206-30140iGSE20..RHD200904-201112

main45206-30141iGSE20..RHD201112-201411

45250COLUMN ASSY, STEERING

main45250-53051iGSE20..RHD200904-201011

sub45810-53020

sub45020-30A60

sub45892-30010

sub45897-12020

sub89227-30020

sub93219-15010

sub93381-15010

main45250-53061iGSE20..LHD200904-201011

sub45810-53020

sub45020-30A60

sub45892-30020

sub45897-12020

sub89227-30020

sub93219-15010

sub93381-15010

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-30200iGSE20200904-201212

sub45260-30201

main45260-30201iGSE20201301

45286COVER, STEERING COLUMN

main45286-53912-C0iGSE20..6F200904-201008

BLACK,TRIM0#,2#

main45286-53912-C0iGSE20..6FC200904-201507

BLACK,TRIM0#,1#,2#,3#,4#

45897BOLT, STEERING LOCK SET

main45897-12020iGSE20200904

8401

9011908560

main90119-08560

9017810027

main90178-10027

9017906008

main90179-06008

9046081005

main90460-81005

9046081007

main90460-81007

91553A0616

main91553-A0616

9356855014

main93568-55014

15 parts on this diagram · 2 diagrams in section
