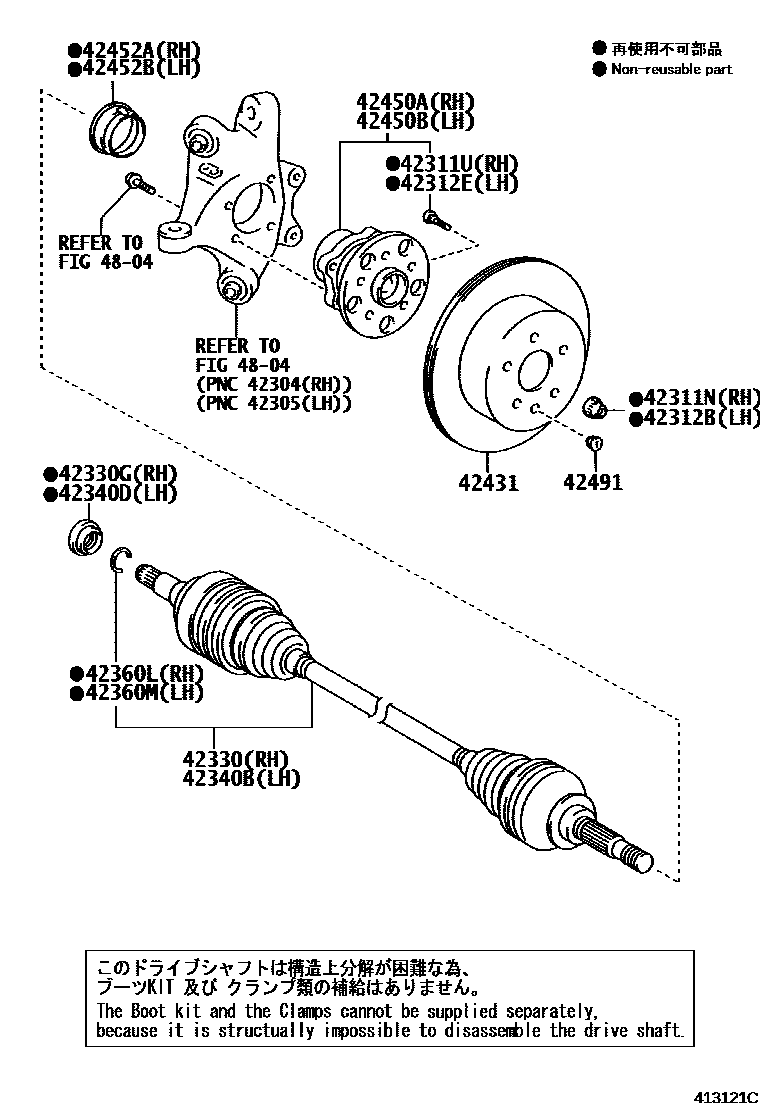

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iGSE20¥260200904

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iGSE20¥240201505-201507

main90942-02070iGSE20¥390200904-201504

sub90942-02049¥240

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iGSE20¥260200904

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iGSE20¥240201505-201507

main90942-02070iGSE20¥390200904-201504

sub90942-02049¥240

42330SHAFT ASSY, REAR DRIVE, RH

main42330-22090iGSE20¥63,300200904-201008

sub42330-22091¥52,700

main42330-22091iGSE20¥52,700201009

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-43009iGSE20¥540200904-201507

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-22180iGSE20¥61,800200904-201008

sub42340-22181¥51,400

main42340-22181iGSE20¥51,400201009

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-43009iGSE20¥540200904-201507

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-34003iGSE20¥110200904

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90521-34003iGSE20¥110200904

42431DISC, REAR

main42431-30290iGSE20¥14,000200904-201308

main42431-30330iGSE20¥11,400201308-201507

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-30020iGSE20¥19,000200904-201504

sub42410-30021¥13,100

main42410-30021iGSE20¥13,100201505-201507

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-30020iGSE20¥19,000200904-201504

sub42410-30021¥13,100

main42410-30021iGSE20¥13,100201505-201507

42452ADEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH

main42451-30020iGSE20¥1,060200904

42452BDEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH

main42451-30020iGSE20¥1,060200904

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010iGSE20¥60200904-201507

4804

17 parts on this diagram · 1 diagram in section
