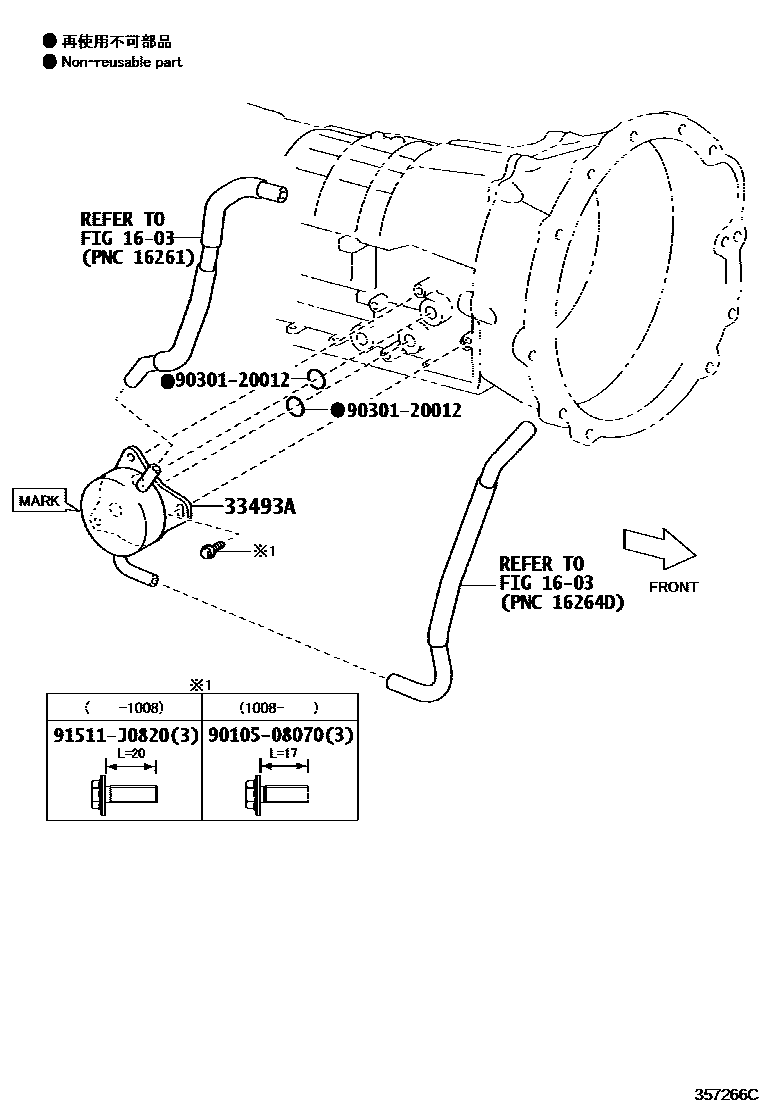

OIL COOLER & TUBE (ATM)

1603

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-22030iGSE20..6FC¥13,200200904-201008

MARK DENSO

main33493-30020iGSE20¥10,600201008-201507

MARK TOYOTA

9010508070

main90105-08070¥100

9030120012

main90301-20012¥170

91511J0820

main91511-J0820¥130

5 parts on this diagram · 1 diagram in section
