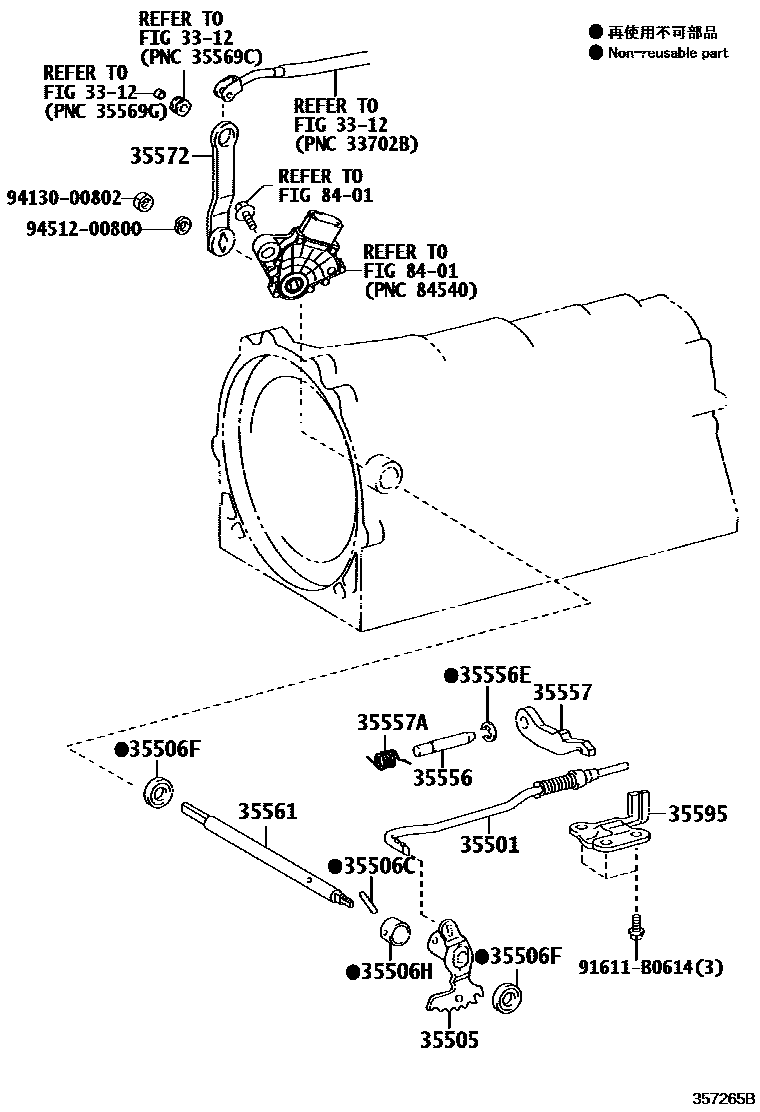

THROTTLE LINK & VALVE LEVER (ATM)

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-22030iGSE20..6FC200904-201407

main35501-30060iGSE20201407

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-53040iGSE20..6FC200904

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGSE20..6FC200904

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iGSE20..6FC200904

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGSE20..6FC200904

35556SHAFT, PARKING LOCK PAWL

main35556-60020iGSE20..6FC200904

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGSE20..6FC200904

35557PAWL, PARKING LOCK

main35557-22020iGSE20..6FC200904-201008

main35557-22030iGSE20201008-201407

main35557-30050iGSE20201407

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03137iGSE20..6FC200904

35561SHAFT, MANUAL VALVE LEVER

main35561-50020iGSE20..6FC200904-201507

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-30070iGSE20..6FC200904-201507

35595BRACKET, PARKING LOCK PAWL

main35595-50010iGSE20..6FC200904

8401

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

17 parts on this diagram · 1 diagram in section
