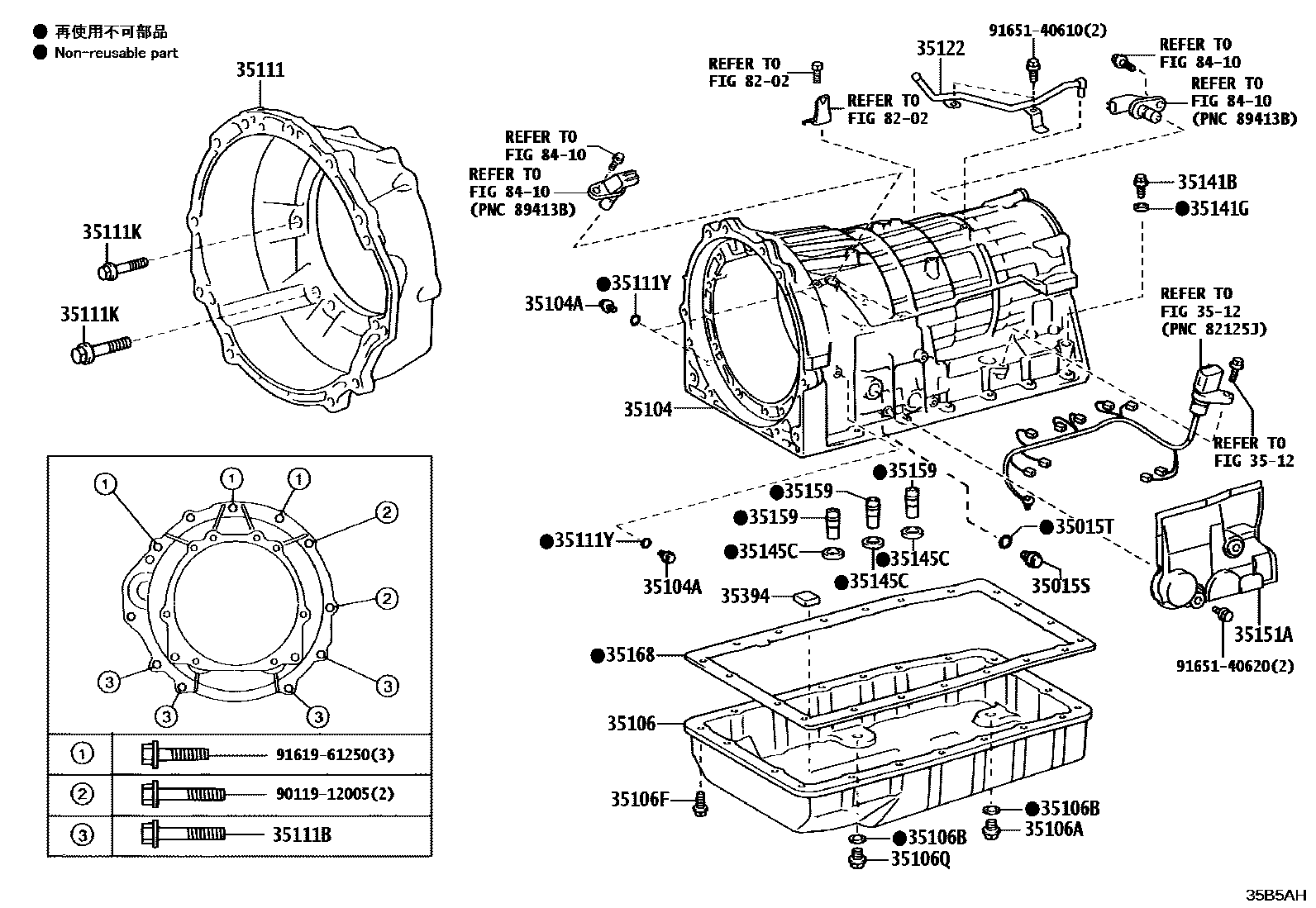

TRANSMISSION CASE & OIL PAN (ATM)

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iGSE20..6FC200904

35015TRING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iGSE20..6FC200904

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22080iGSE20..6FC200904

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iGSE20..6FC200904

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30270iGSE20..6FC200904

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGSE20..6FC200904

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGSE20..6FC200904

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06173iGSE20..6FC200904-201507

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iGSE20..6FC200904

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22110iGSE20..6FC200904

35111BBOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING)

main90119-10260iGSE20..6FC200904-201507

*10-1.25PX43-30

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232iGSE20..6FC200904-201507

*10-1.5PX35-30

main90119-10947iGSE20..6FC200904-201507

*10-1.50PX35-29.3

main90119-12378iGSE20..6FC200904-201507

*12-1.75PX38-30

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iGSE20..6FC200904

3512

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main90930-03182iGSE20..6FC200904

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iGSE20..6FC200904

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iGSE20..6FC200904

35145CGASKET, TRANSAXLE CASE

main35145-60020iGSE20..6FC200904

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-22020iGSE20..6FC200904-201008

35159GASKET, BRAKE DRUM

main35159-60010iGSE20..6FC200904

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22020iGSE20..6FC200904

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iGSE20..6FC200904

8202

8410

9011912005

main90119-12005

9161961250

main91619-61250

9165140610

main91651-40610

9165140620

main91651-40620

28 parts on this diagram · 1 diagram in section
