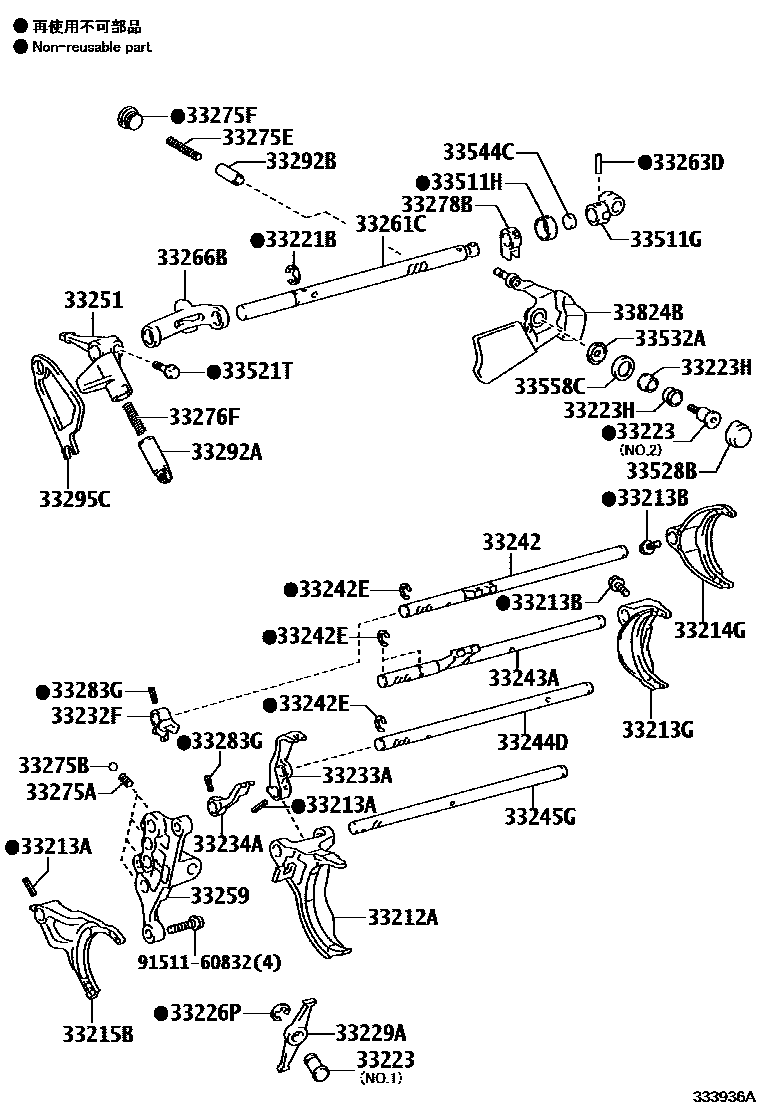

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33212AFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33215BFORK, GEAR SHIFT, NO.4
sub33240-35012
33221BRING, E(FOR REVERSE SHIFT ARM)
33223PIVOT, SHIFT ARM
NO.1
NO.2
33223HCOLLAR(FOR PIVOT, SHIFT ARM)
33226PRING, E(FOR 1ST & 2ND SHIFT RETURN PLUNGER)
33229AARM, RELEASE, NO.1
33232FHEAD, GEAR SHIFT, NO.1
33233AHEAD, GEAR SHIFT, NO.2
33234AHEAD, GEAR SHIFT, NO.3
33242SHAFT, GEAR SHIFT FORK, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244DSHAFT, GEAR SHIFT FORK, NO.3
33245GSHAFT, GEAR SHIFT FORK, NO.4
sub33245-53021
33251LEVER, SHIFT & SELECT
33259BRACKET, SHIFT INTERLOCK
33261CSHAFT, SHIFT & SELECT LEVER
33263DPIN (FOR SHIFT LEVER SHAFT)
33266BPIN, SHIFT INTERLOCK, NO.3
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=15.35
33275BBALL, SHAFT DETENT
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
33275FPLUG (FOR SHIFT DETENT BALL)
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33278BSUPPORT, SHIFT & SELECT LEVER SHAFT
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33292APIN, LOCK BALL
33292BPIN, LOCK BALL NO.2
33295CCAM, SHIFT & SELECT
33511GSHAFT, CONTROL
33511HCOLLAR (FOR CONTROL SHAFT)
33521TBOLT (FOR SHIFT LEVER HOUSING)
33528BCOVER, CONTROL SHAFT
33532APLATE, DUST BOOT
33544CDAMPER, SHIFT LEVER
33558CSEAL, SHIFT LEVER BOOT DUST
33824BWEIGHT, TRANSMISSION CONTROL CABLE
9151160832
main91511-60832
43 parts on this diagram · 1 diagram in section
