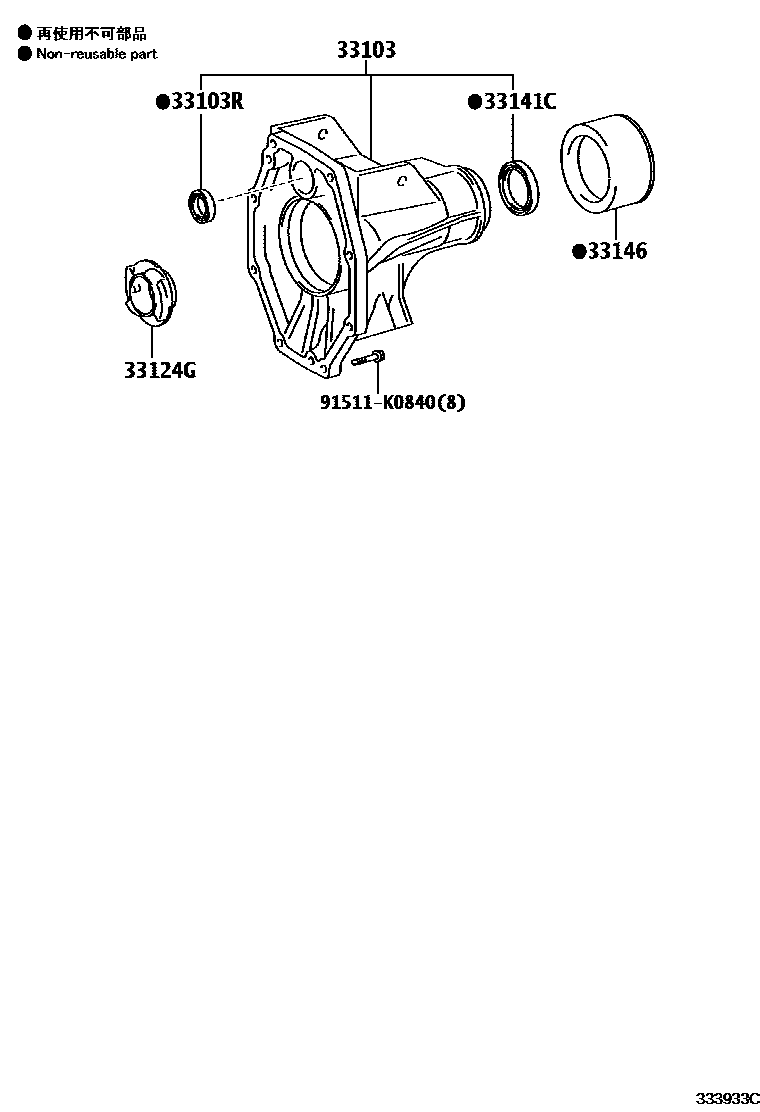

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-53050iGSE20..6F200904-201008

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-18016iGSE20..6F200904-201008

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-53030iGSE20..6F200904-201008

33141CSEAL, OIL(FOR EXTENSION HOUSING REAR)

main90311-40001iGSE20..6F200904-201008

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30020iGSE20..6F200904-201008

91511K0840

main91511-K0840

6 parts on this diagram · 1 diagram in section
