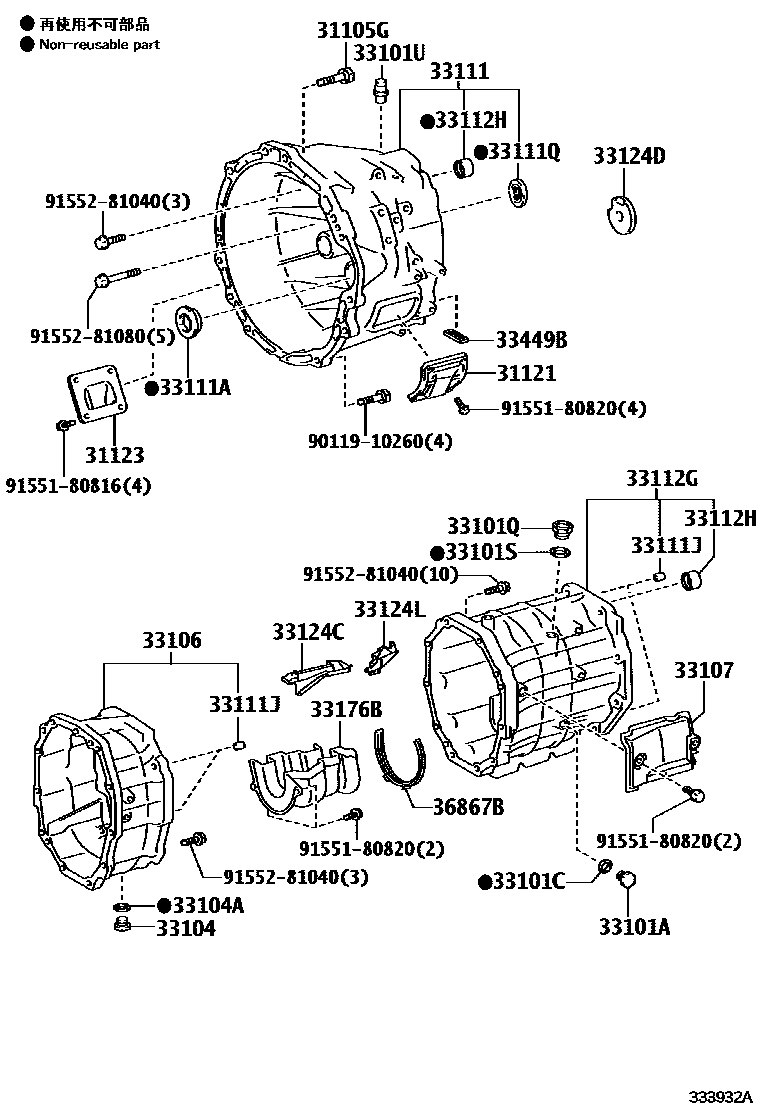

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*12-1.25PX70-30
31121COVER, CLUTCH HOUSING, NO.1
31123COVER, CLUTCH HOUSING, NO.2
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33101QPLUG, NO.1(FOR TRANSMISSION CASE)
33101SGASKET(FOR TRANSMISSION CASE PLUG NO.1)
33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33106CASE SUB-ASSY, TRANSMISSION CENTER
33107COVER SUB-ASSY, TRANSMISSION, UPPER
33111CASE, MANUAL TRANSMISSION
33111APLUG, MANUAL TRANSMISSION CASE
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=15,OD=8
33111QSEAL, OIL(FOR TRANSMISSION CASE)
33112GCASE, TRANSMISSION, REAR
33112HBEARING, TRANSMISSION CASE NEEDLE
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33124DPIPE, OIL RECEIVER, NO.2(MTM)
33124LPIPE, OIL RECEIVER, N0.3(MTM)
33176BSEPARATOR, TRANSMISSION OIL(MTM)
33449BMAGNET, TRANSMISSION
36867BSEAL, PACKING (FOR OIL SEPARATOR)
9011910260
main90119-10260
9155180816
main91551-80816
9155180820
main91551-80820
9155281040
main91552-81040
9155281080
main91552-81080
29 parts on this diagram · 1 diagram in section
