TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

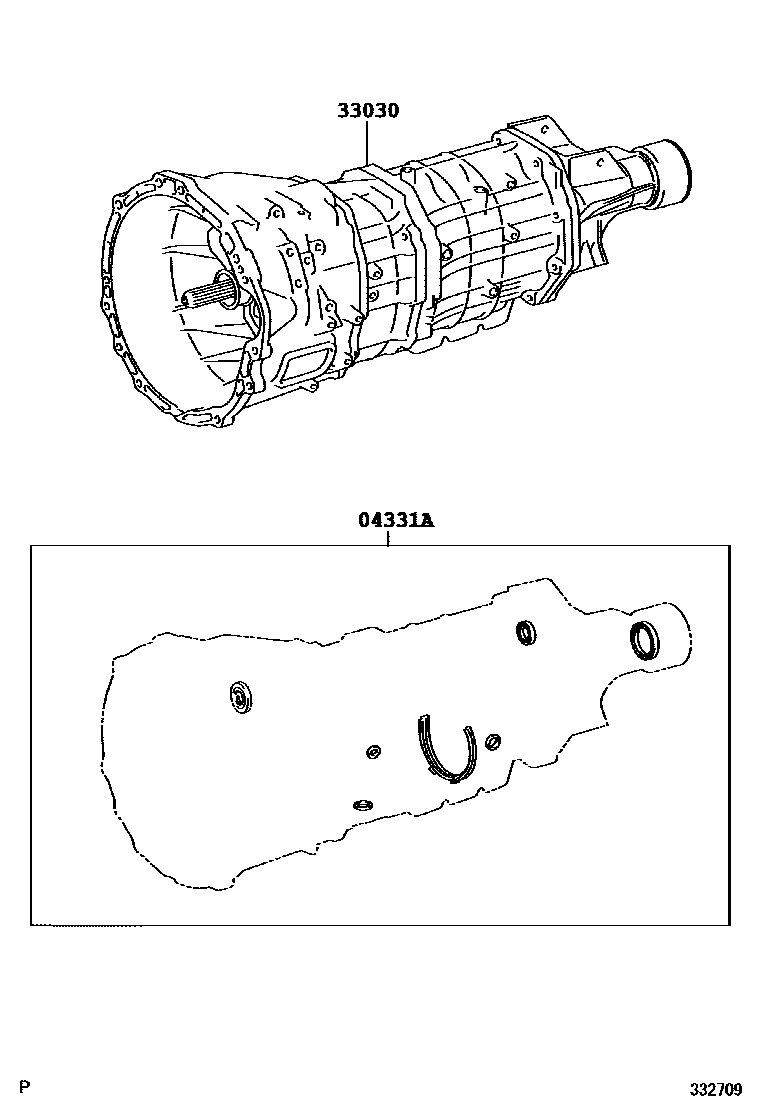

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-53020i200904-201008

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-53270i200904-201008

RA62

main33030-53280i200904-201008

RA62

2 parts on this diagram · 1 diagram in section
