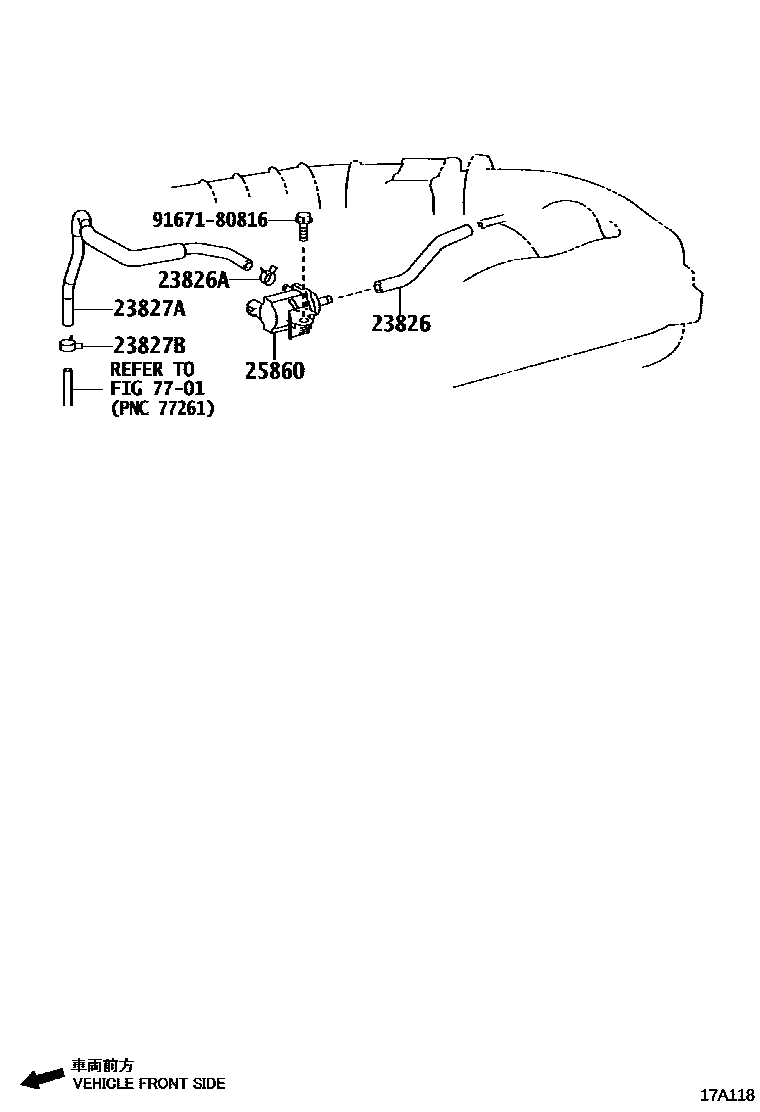

VACUUM PIPING

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31030i4GRFSE..GSE20200904

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51300i4GRFSE..GSE20..RHD200904-201507

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-31100i4GRFSE..GSE20200904-201507

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i4GRFSE..GSE20..RHD200904-201507

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31060i4GRFSE..GSE20200904

7701

9167180816

main91671-80816

7 parts on this diagram · 1 diagram in section
