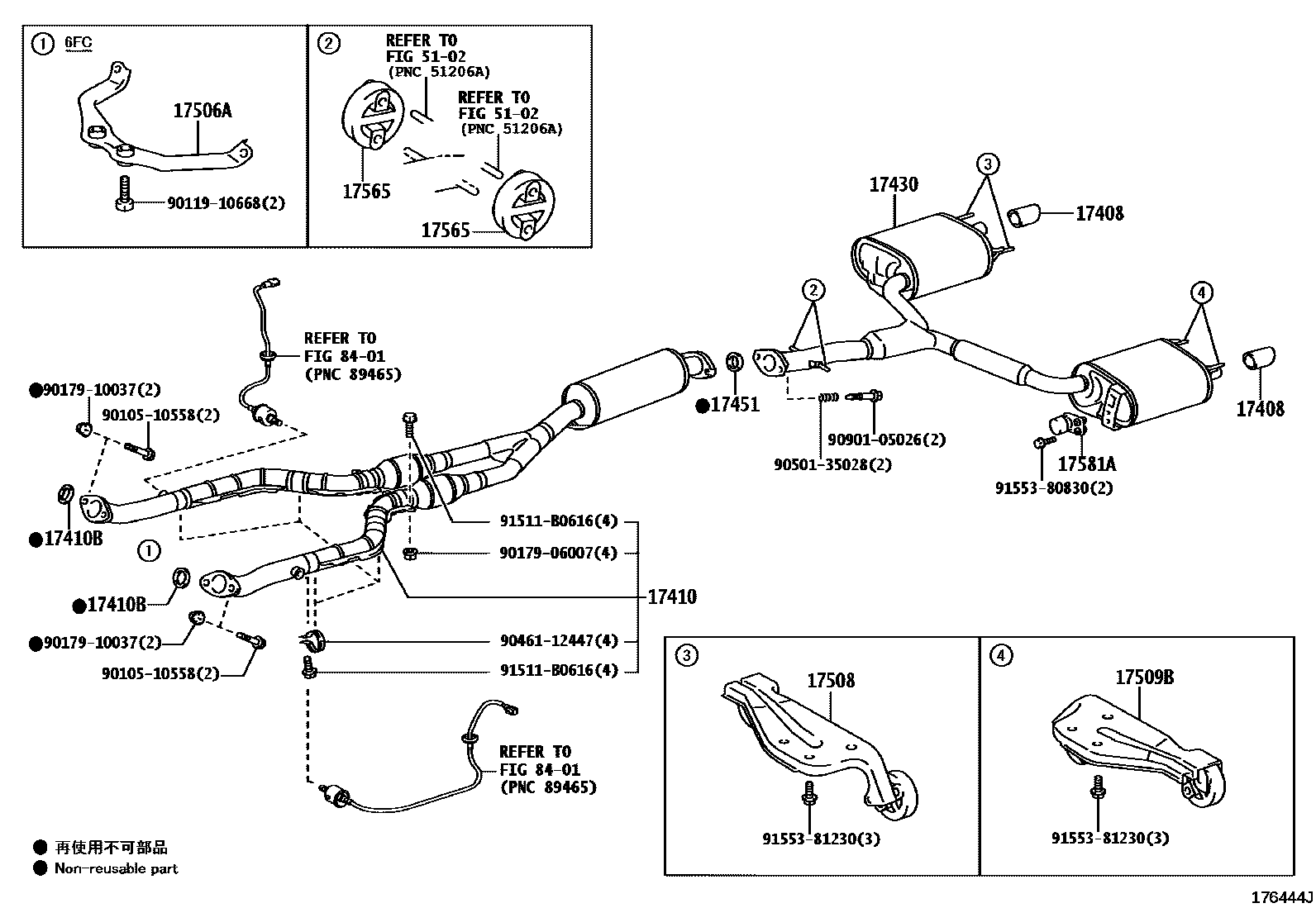

EXHAUST PIPE

0001 1TYPE A 0002 1TYPE B

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-31030i4GRFSE..GSE20200904

17410PIPE ASSY, EXHAUST, FRONT

main17410-31A30i4GRFSE..GSE20200904-201101

*114=TOYOTA/GQ2/Y

sub17410-31A31

main17410-31A31i4GRFSE..GSE20201102-201205

*114=TOYOTA/GQ2/Y,TYPE A:REFER ILLUST.

sub17410-31G60

main17410-31G50i4GRFSE..GSE20201308-201507

*114=TOYOTA/RC4/Y

main17410-31G60i4GRFSE..GSE20201206-201308

*114=TOYOTA/RC4/Y,TYPE B:REFER ILLUST.

sub17410-31G50

17410BGASKET, EXHAUST PIPE

main90917-06078i4GRFSE..GSE20200904

17430PIPE ASSY, EXHAUST, TAIL

main17430-31840i4GRFSE..GSE20200904-201201

sub17430-31841

main17430-31841i4GRFSE..GSE20201202-201308

sub17430-31861

main17430-31861i4GRFSE..GSE20201308

17451GASKET, EXHAUST PIPE

main17451-31011i4GRFSE..GSE20200904-201102

sub17451-31012

main17451-31012i4GRFSE..GSE20201103

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-31030i4GRFSE..GSE20..6FC200904

17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3

main17508-31060i4GRFSE..GSE20200904-201101

sub17508-31061

main17508-31061i4GRFSE..GSE20201102

17509BSUPPORT, EXHAUST PIPE NO.4

main17509-31030i4GRFSE..GSE20200904-201101

sub17509-31031

main17509-31031i4GRFSE..GSE20201102

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-28010i4GRFSE..GSE20200904

17581ADAMPER, EXHAUST PIPE

main17581-46120i4GRFSE..GSE20200904

5102

8401

9010510558

main90105-10558

9011910668

main90119-10668

9017906007

main90179-06007

9017910037

main90179-10037

9046112447

main90461-12447

9050135028

main90501-35028

9090105026

main90901-05026

91511B0616

main91511-B0616

9155380830

main91553-80830

9155381230

main91553-81230

22 parts on this diagram · 2 diagrams in section
