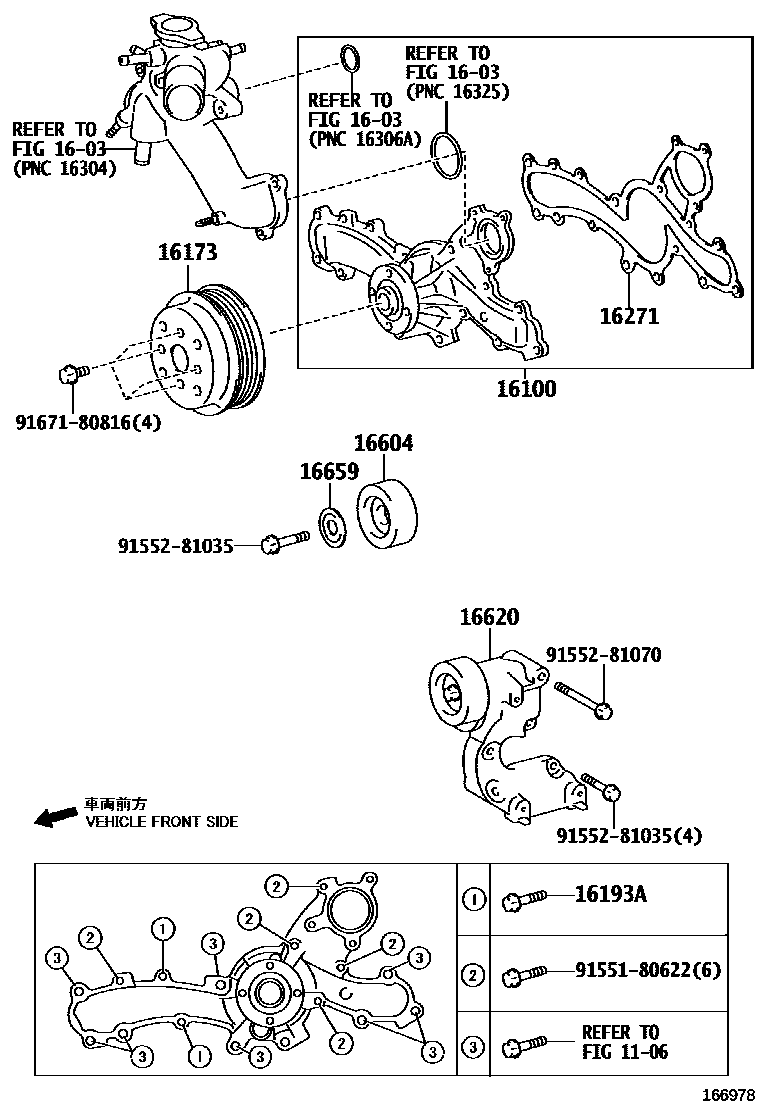

WATER PUMP

1603

16100PUMP ASSY, ENGINE WATER

main16100-39436i4GRFSE..GSE20¥13,400200904

16173PULLEY, WATER PUMP

main16173-31010i4GRFSE..GSE20¥3,300200904

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i4GRFSE..GSE20¥210200904-201507

16271GASKET, WATER PUMP

main16271-31020i4GRFSE..GSE20¥2,320200904-201507

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31010i4GRFSE..GSE20¥5,600200904

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31021i4GRFSE..GSE20..6FC¥20,100200904-201507

main16620-31040i4GRFSE..GSE20..6F¥16,700200904-201008

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011i4GRFSE..GSE20¥220200904

9155180622

main91551-80622¥60

9155281035

main91552-81035¥120

9155281070

main91552-81070¥160

9167180816

main91671-80816¥80

12 parts on this diagram · 1 diagram in section
