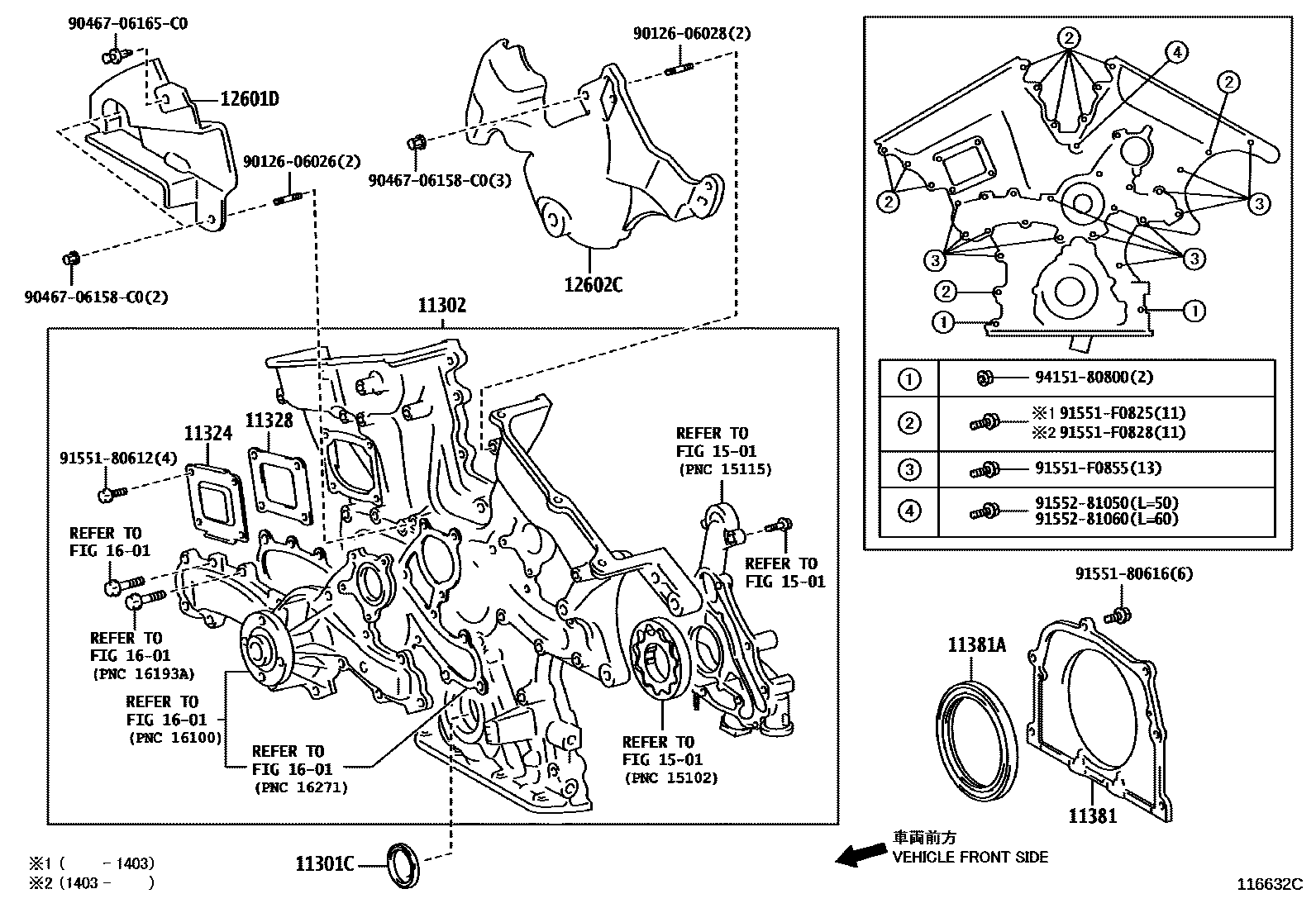

TIMING GEAR COVER & REAR END PLATE

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42037i4GRFSE..GSE20¥520200904-200905

sub90311-42045¥520

main90311-42045i4GRFSE..GSE20¥520200905

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-31042i4GRFSE..GSE20¥50,600200904-201504

sub11310-31044¥42,200

sub91552-81060¥160

main11310-31044i4GRFSE..GSE20¥42,200201504-201507

11324PLATE, TIMING CHAIN COVER

main11324-31020i4GRFSE..GSE20¥660200904-201507

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31030i4GRFSE..GSE20¥400200904-201507

11381RETAINER, ENGINE REAR OIL SEAL

main11381-31021i4GRFSE..GSE20¥3,920200904

11381ASEAL, ENGINE REAR OIL

main90311-92009i4GRFSE..GSE20¥1,510200904-201009

sub90311-92010¥1,510

main90311-92010i4GRFSE..GSE20..LHD¥1,510201009-201502

12601DCOVER, ENGINE, NO.1

main12601-31010i4GRFSE..GSE20¥2,060200904

12602CCOVER, ENGINE, NO.2

main12602-31012i4GRFSE..GSE20¥5,200200904-201201

sub12602-31013¥4,340

main12602-31013i4GRFSE..GSE20¥4,340201201

1501

1601

9012606026

main90126-06026¥60

9012606028

main90126-06028¥60

9046706158C0

main90467-06158C0

9046706165C0

main90467-06165C0

9155180612

main91551-80612¥60

9155180616

main91551-80616¥60

91551F0825

main91551-F0825¥80

91551F0828

main91551-F0828¥80

91551F0855

main91551-F0855¥100

9155281050

main91552-81050¥120

9155281060

main91552-81060¥160

9415180800

main94151-80800¥80

22 parts on this diagram · 1 diagram in section
