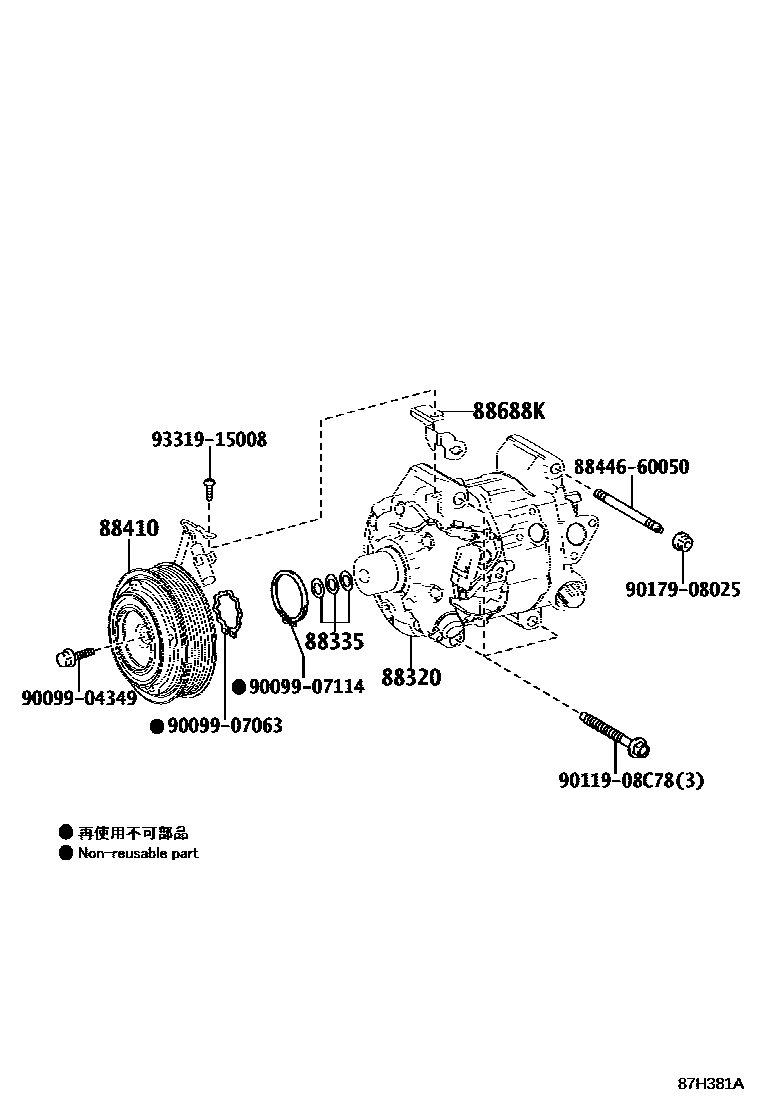

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88320COMPRESSOR ASSY, COOLER

main88320-3A440iGSC10201409-201512

sub88320-3A510

main88320-3A510iGSC10201512-201711

main88320-48320iASC10201805-202008

main88320-48330iASC10..RHD201510-201805

88335GASKET KIT, OVERHAUL

main88335-14020iGSC10201409-202008

88410CLUTCH ASSY, MAGNET

main88410-0N010iASC10..RHD201510-202008

main88410-33190iGSC10201409-201711

88688KBRACKET, COOLER COMPRESSOR

main88688-33570iASC10201409-202008

8844660050BOLT, IDLE PULLEY

main88446-60050

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

9011908C78

main90119-08C78

9017908025

main90179-08025

9331915008

main93319-15008

11 parts on this diagram · 3 diagrams in section
