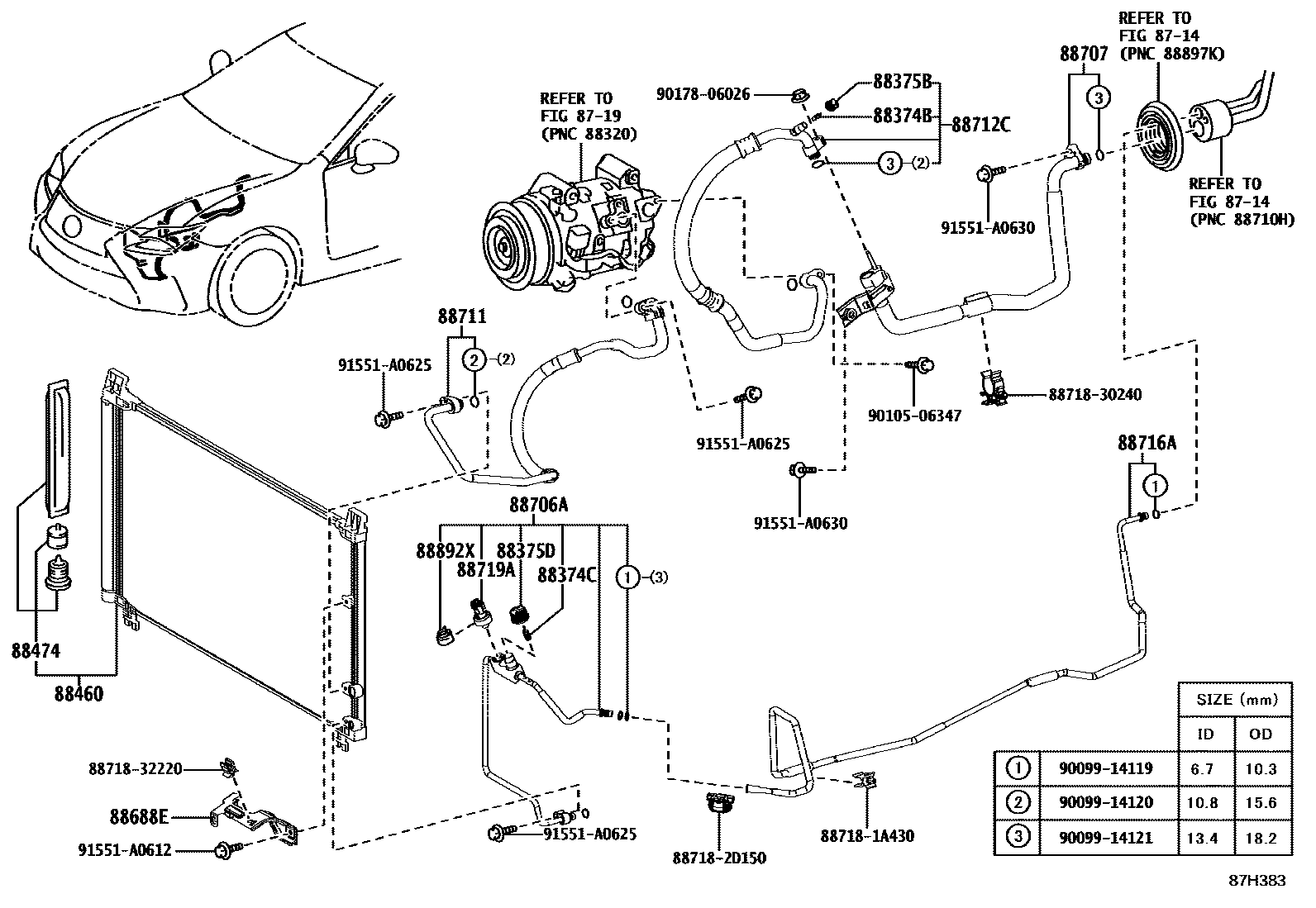

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iGSC10201409-202008

88374CVALVE, SERVICE, NO.2

main88374-30010iASC10,AVC10201409-202008

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iGSC10201409-202008

main88375-30310iAVC10201510-202008

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iGSC10201409-202008

main88375-30320iAVC10201510-202008

88460CONDENSER ASSY, COOLER

main88460-24100iGSC10¥48,600201409-201510

main88460-24140iAVC10¥38,200201510-202008

main88460-30B20iGSC10¥33,700201510-201711

main88460-30B80iASC10¥33,700201510-202008

88474DRYER, COOLER

main88474-12010iGSC10¥0201409-202008

main88474-47020iAVC10¥0201510-202008

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-3F020iGSC10201409-202008

88706ATUBE SUB-ASSY, LIQUID, A

main88706-24180iGSC10¥19,000201409-201510

main88706-30A20iGSC10¥11,900201510-201711

main88706-30A30iASC10¥12,600201805-202008

main88706-30A40iASC10..LHD201510-201805

main88706-3A620iAVC10201510-202008

88707PIPE SUB-ASSY, SUCTION

main88707-30A31iAVC10¥10,200201510-202008

main88707-30A41iGSC10¥9,400201409-201711

main88707-53140iASC10¥9,100201805-202008

main88707-53150iASC10..RHD201510-201805

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-24180iGSC10¥13,000201409-201510

main88711-30A10iAVC10¥11,100201510-202008

sub88711-30A11¥10,000

main88711-30A30iGSC10¥9,300201510-201711

sub88711-30A31¥8,400

main88711-30A40iASC10..LHD¥9,300201510-202008

sub88711-30A41¥8,400

88712CHOSE, SUCTION

main88712-30360iGSC10¥14,000201409-201711

main88712-53220iAVC10¥10,600201510-202008

sub88712-53221¥9,600

main88712-53230iASC10¥10,700201510-202008

sub88712-53231

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-30061iAVC10¥5,900201510-202008

main88716-30071iGSC10¥8,200201409-201711

main88716-30B20iASC10¥5,200201510-202008

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iGSC10¥0201409-202008

88892XCOVER, COOLER, NO.2

main88892-50120iGSC10201409-202008

887181A430PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A430

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871830240PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30240

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009914119

main90099-14119

9009914120

main90099-14120¥0

9009914121

main90099-14121

9010506347

main90105-06347¥60

9017806026

main90178-06026¥80

91551A0612

main91551-A0612¥60

91551A0625

main91551-A0625¥60

91551A0630

main91551-A0630¥60

28 parts on this diagram · 3 diagrams in section
