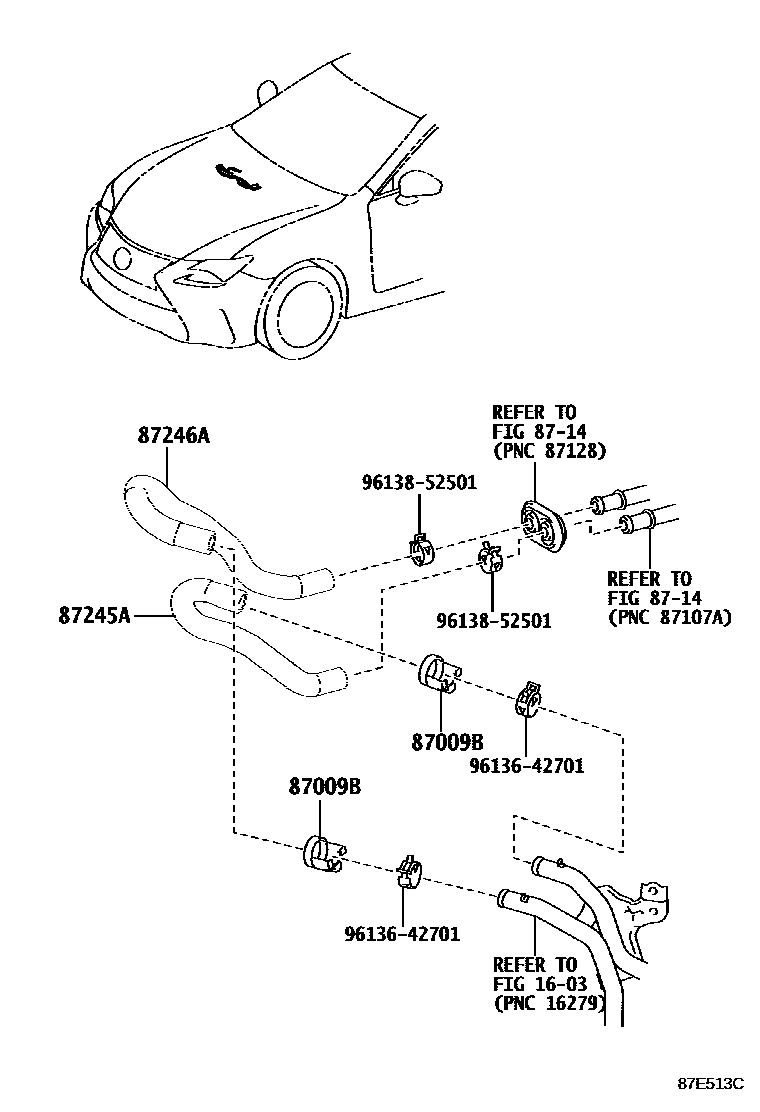

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1603

87009BHOSE SET, WATER

main87009-11010iASC10..RHD¥220201709-202008

main87009-30040iAVC10¥230201409-202008

main87009-50020iASC10¥290201510-201709

8714

87245AHOSE, HEATER WATER, INLET A

main87245-30C30iAVC10¥2,030201510-202008

main87245-53180iGSC10¥1,660201409-201711

main87245-53200iASC10..RHD¥1,030201510-202008

87246AHOSE, HEATER WATER, OUTLET A

main87245-30C40iAVC10¥810201510-202008

main87245-53130iGSC10¥1,950201409-201711

main87245-53210iASC10¥920201510-202008

9613642701

main96136-42701¥200

9613852501

main96138-52501¥180

7 parts on this diagram · 3 diagrams in section
