NAVIGATION & FRONT MONITOR DISPLAY
84780DCONTROLLER ASSY, REMOTE OPERATION(FOR DISPLAY AUDIO)
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(NAVIGATION LESS)
AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(NAVIGATION LESS)
AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(TURKEY SPEC)
84780ECONTROLLER ASSY, REMOTE OPERATION(FOR ELECTRO MULTI VISION)
ELECTRO MULTI VISION-WITH(TURKEY SPEC)
ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
CYPRUS SPEC&ELECTRO MULTI VISION-WITH(LESS NAVIGATION)
8601
86110BMULTI-DISPLAY ASSY
PANASONIC
PANASONIC
DENSO
DENSO,AUDIO-EMV & DVD & 17SPEAKER
DENSO,AUDIO-EMV & DVD & 10SPEAKER
DENSO
86117KBRACKET, MULTI-DISPLAY, NO.1
86134APARTS, MULTI-DISPLAY
ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
STEERING COLUMN-POWER
STEERING COLUMN-POWER(AVS)
86255ACASE, MICROPHONE, NO.1
BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM2#,3#,4#,5#
86271DISC, DISC PLAYER
KAZAKHSTAN SPEC&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A96
KAZAKHSTAN SPEC&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A96
RUSSIA SPEC&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A97
RUSSIA SPEC&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A97
UKRAINE SPEC&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A97
UKRAINE SPEC&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A97
ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A97
ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A97
KAZAKHSTAN SPEC&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A97
KAZAKHSTAN SPEC&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A97
ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A98
RUSSIA SPEC&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A98
RUSSIA SPEC&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A98
UKRAINE SPEC&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A98
UKRAINE SPEC&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A98
ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A98
KAZAKHSTAN SPEC&ANTENNA-GLASS & DAB&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A98
KAZAKHSTAN SPEC&ANTENNA-GLASS & DAB & SHARK ANTENNA(LESS CABLE)&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
sub86271-30A98
86730AMICROPHONE ASSY, TELEPHONE
NO.2:REFER ILLUST.
NO.2
NO.2:REFER ILLUST.
86841COMPUTER, NAVIGATION
UKRAINE SPEC&AUDIO-DISPLAY AUDIO & CD & 6SPEAKER&ELECTRO MULTI VISION-WITH(DISPLAYAUDIO & GPS)
AZERBAIJAN,ARMENIA,GEORGIA SPEC&AUDIO-DISPLAY AUDIO & CD & 6SPEAKER&ELECTRO MULTIVISION-WITH(DISPLAY AUDIO & GPS)
SERBIA SPEC&AUDIO-DISPLAY AUDIO & CD & 6SPEAKER&ELECTRO MULTI VISION-WITH(DISPLAYAUDIO & GPS)
BOSNIA HERCEGOVINA SPEC&AUDIO-DISPLAY AUDIO & CD & 6SPEAKER&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
FINLAND, NORWAY, SWEDEN SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER
FINLAND, NORWAY, SWEDEN SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
ESTONIA, LATVIA, LITHUANIA SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER
ESTONIA, LATVIA, LITHUANIA SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
"F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
"VERSION L"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
STEERING COLUMN-POWER&AUDIO-EMV & DVD & 10SPEAKER
STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER
STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER
"VERSION L"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER
sub86840-0W231
"F SPORT"&STEERING COLUMN-POWER&AUDIO-EMV & DVD & 17SPEAKER
sub86840-0W231
"F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
sub86840-0W231
"VERSION L"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
sub86840-0W231
STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER
sub86840-0W231
FINLAND, NORWAY, SWEDEN SPEC&"F SPORT"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD& 17SPEAKER
sub86840-0W231
FINLAND, NORWAY, SWEDEN SPEC&"VERSION L"&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 17SPEAKER
sub86840-0W231
FINLAND, NORWAY, SWEDEN SPEC&STEERING COLUMN-POWER(AVS)&AUDIO-EMV & DVD & 10SPEAKER
sub86840-0W231
86842WIRE, NAVIGATION, NO.1
ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
STEERING COLUMN-POWER
STEERING COLUMN-POWER(AVS)
86860ANTENNA ASSY, NAVIGATION
9015350010
9015950327
9155380614
9356855014

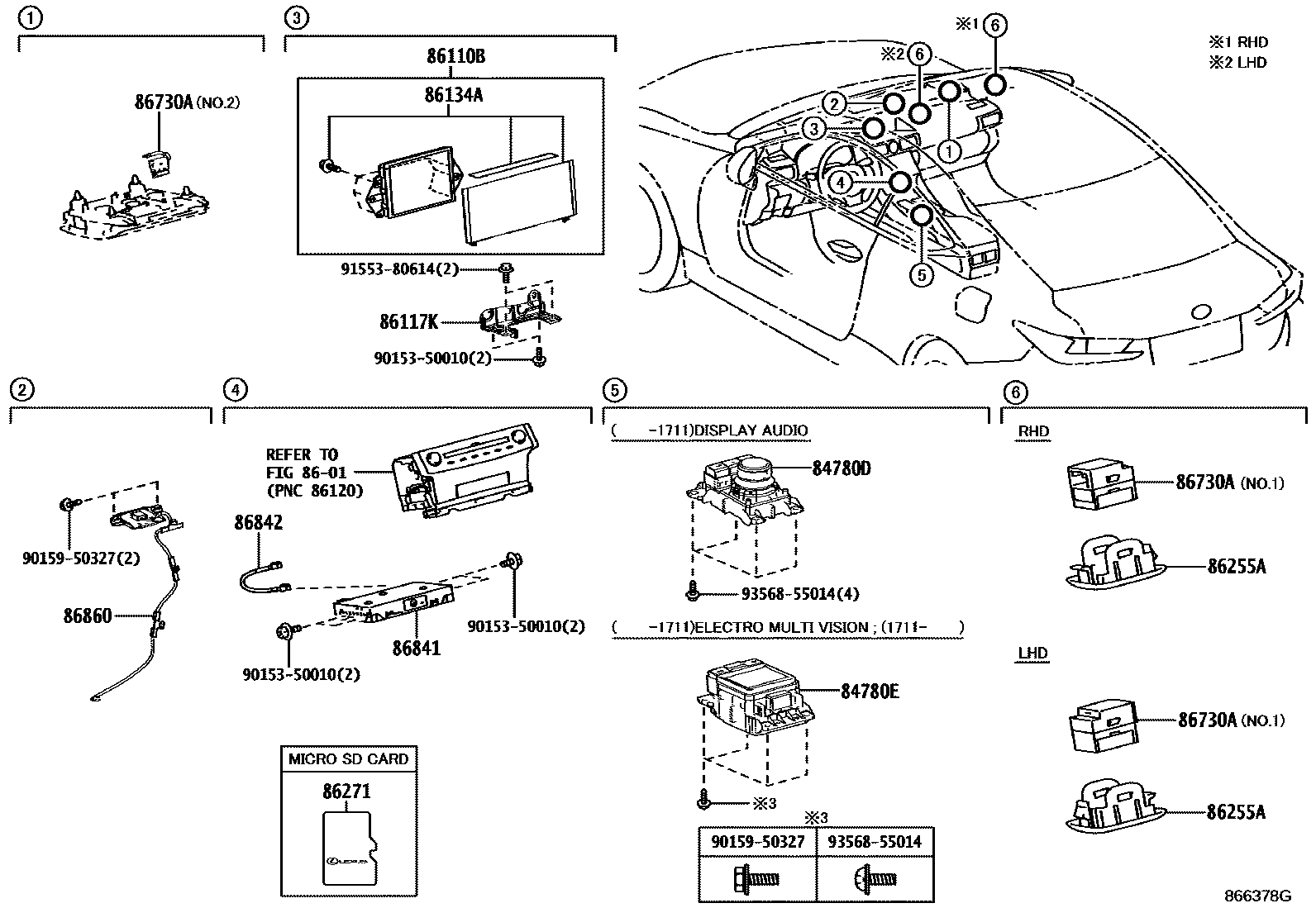

16 parts on this diagram · 1 diagram in section
