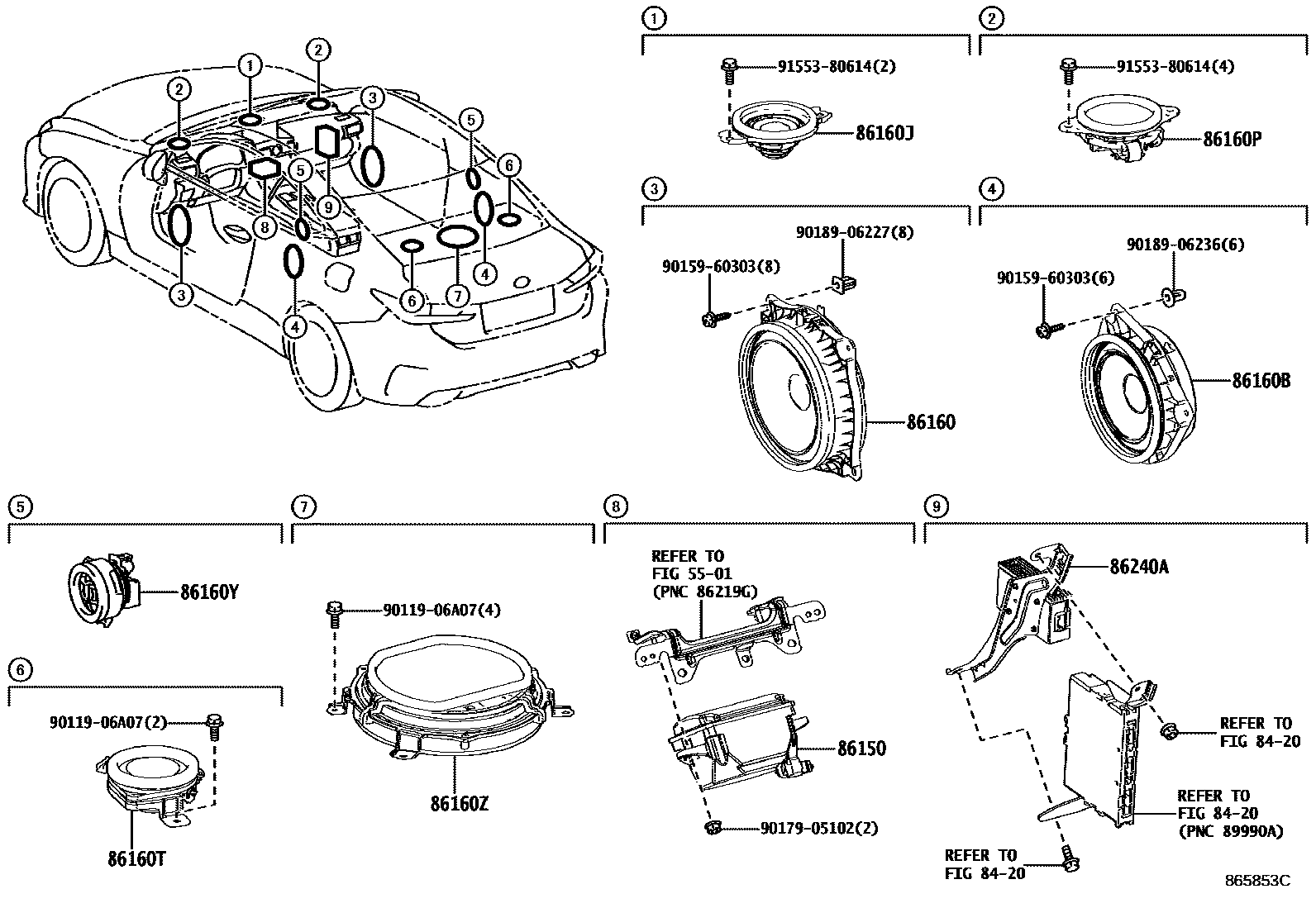

SPEAKER

0001 1 0002 1

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

86150SPEAKER ASSY, W/BOX, NO.1

main86150-53020

86160SPEAKER ASSY, FRONT NO.1

main86160-53370iGSC10201409-202008

86160BSPEAKER ASSY, REAR

main86160-33820iGSC10201409-202008

86160JSPEAKER ASSY, FRONT NO.3

main86160-33790iGSC10201609-201810

main86160-33790iASC10201810-202008

AUDIO-EMV & DVD & 10SPEAKER

86160PSPEAKER ASSY, FRONT NO.2

main86160-33800iGSC10201409-202008

main86160-48380iGSC10201609-201810

main86160-48380iAVC10..RHD201810-202008

AUDIO-EMV & DVD & 10SPEAKER

86160TSPEAKER ASSY, REAR HEADER

86160YSPEAKER ASSY, REAR NO.2

86160ZSPEAKER ASSY, REAR NO.3

main86160-30E50iASC10..RHD201409-202008

86240AEQUALIZER ASSY,STEREO COMPONENT

9011906A07

main90119-06A07

9015960303

main90159-60303

9017905102

main90179-05102

9018906227

main90189-06227

9018906236

main90189-06236

9155380614

main91553-80614

17 parts on this diagram · 2 diagrams in section
