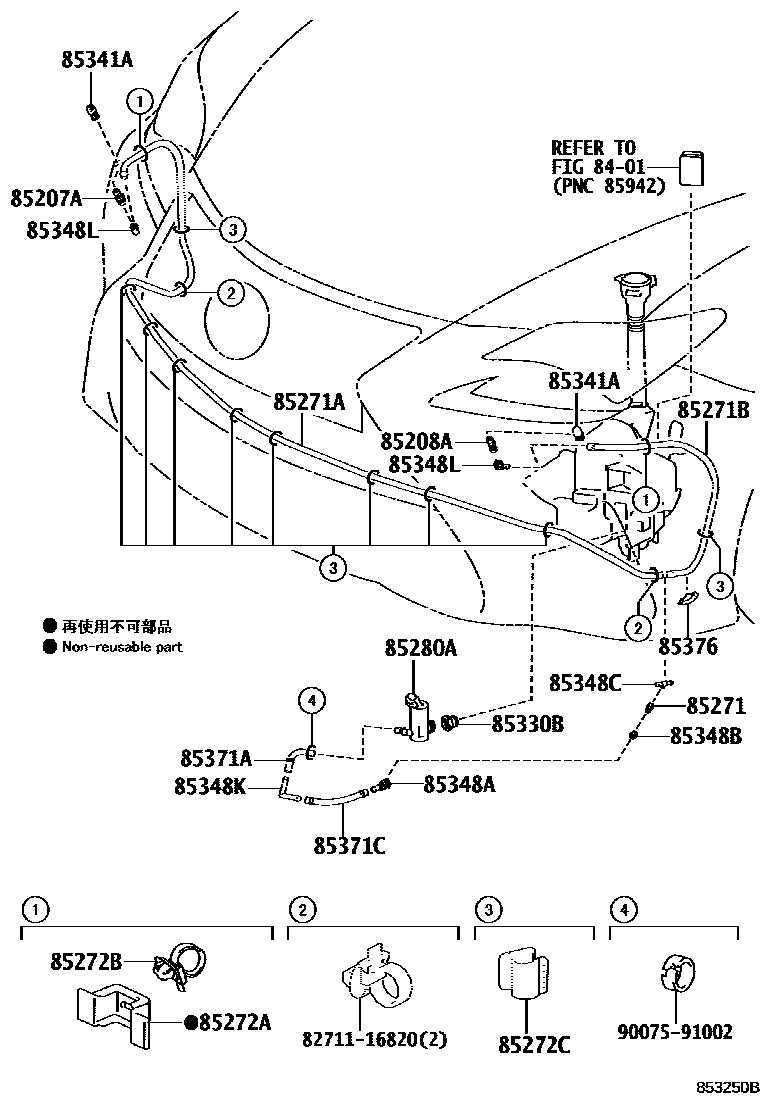

HEADLAMP CLEANER
8401
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
L=35
L=100
85271AHOSE, HEADLAMP CLEANER, NO.2
L=2500
85271BHOSE, HEADLAMP CLEANER, NO.3
L=2800
85272ACLAMP, HEADLAMP CLEANER, NO.1
85272BCLAMP, HEADLAMP CLEANER, NO.2
85272CCLAMP, HEADLAMP CLEANER, NO.3
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85341ACOVER,HEADLAMP CLEANER WASHER NOZZLE
WHITE PEARL CS.,077,RH
WHITE NOVA GF.,083,RH
SONIC QUARTZ,085,RH
MERCURY GRAY MC.,1H9,RH
PLATINUM SILVER ME.,1J4,RH
SONIC TITANIUM,1J7,RH
BLACK,212,RH
STARLIGHT BLACK GF.,217,RH
GRAPHITE BLACK GF.,223,RH
RED,3T5,RH
ORANGE,4W7,RH
NAPLES YELLOW,5C1,RH
BLUE,8X1,RH
WHITE NOVA GF.,083,RH
SONIC QUARTZ,085,RH
MERCURY GRAY MC.,1H9,RH
SONIC TITANIUM,1J7,RH
BLACK,212,RH
GRAPHITE BLACK GF.,223,RH
RADIANT RED CONTRAST LAYE,3T5,RH
LAVA ORANGE CS.,4W7,RH
NAPLES YELLOW CONTRAST LA,5C1,RH
HEAT BLUE CONTRAST LAYERI,8X1,RH
SPARKLING METEOR ME.,8X9,RH
WHITE PEARL CS.,077,LH
WHITE NOVA GF.,083,LH
SONIC QUARTZ,085,LH
MERCURY GRAY MC.,1H9,LH
PLATINUM SILVER ME.,1J4,LH
SONIC TITANIUM,1J7,LH
BLACK,212,LH
STARLIGHT BLACK GF.,217,LH
GRAPHITE BLACK GF.,223,LH
RED,3T5,LH
ORANGE,4W7,LH
NAPLES YELLOW,5C1,LH
BLUE,8X1,LH
WHITE NOVA GF.,083,LH
SONIC QUARTZ,085,LH
MERCURY GRAY MC.,1H9,LH
SONIC TITANIUM,1J7,LH
BLACK,212,LH
GRAPHITE BLACK GF.,223,LH
RADIANT RED CONTRAST LAYE,3T5,LH
LAVA ORANGE CS.,4W7,LH
NAPLES YELLOW CONTRAST LA,5C1,LH
HEAT BLUE CONTRAST LAYERI,8X1,LH
SPARKLING METEOR ME.,8X9,LH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=80
85371CHOSE, HEADLAMP CLEANER, NO.1
L=200
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16820
9007591002
main90075-91002
22 parts on this diagram · 2 diagrams in section
