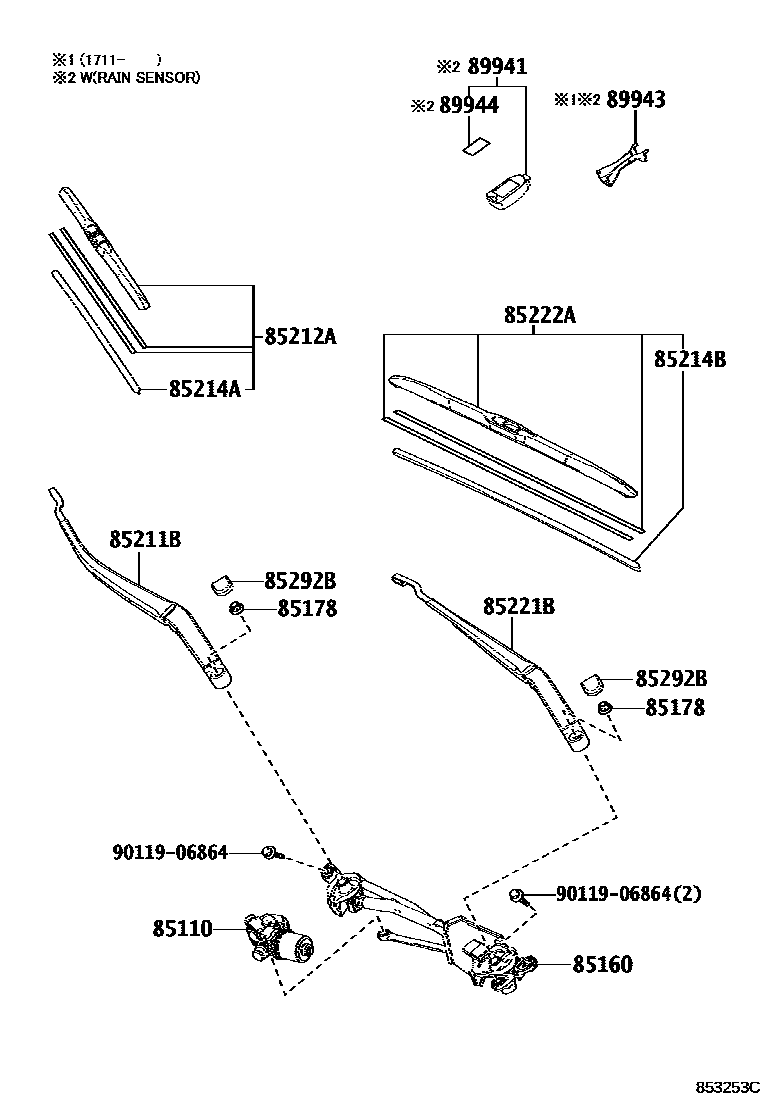

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-53050iASC10,AVC10..LHD201810-202008

main85110-53070iASC10..RHD201510-201804

85160LINK ASSY, WINDSHIELD WIPER

main85150-24130iASC10..RHD201510-201804

main85150-24140iASC10,AVC10..LHD201810-202008

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iGSC10201510-201711

85211BARM, FRONT WIPER, RH

main85211-24140iASC10..RHD201510-201804

main85211-24150iASC10,AVC10..LHD201810-202008

85212ABLADE, FR WIPER, RH

main85212-24150iASC10..RHD201510-201804

main85212-53100iGSC10201510-201711

85214ARUBBER, WIPER, RH

main85214-30380iAVC10..RHD201510-201810

main85214-33180iGSC10201510-201711

85214BRUBBER, WIPER, LH

main85214-30380iASC10,AVC10..LHD201510-201810

main85214-33180iAVC10..RHD201510-201810

85221BARM, FRONT WIPER, LH

main85221-24140iAVC10..RHD201510-201810

main85221-24150iGSC10201409-201510

85222ABLADE, FR WIPER, LH

main85222-24150iGSC10201510-201711

main85222-53080iAVC10..RHD201810-202008

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iGSC10201510-201711

89941SENSOR, RAIN

main89941-52010iGSC10201409-201510

"VERSION L"&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)

89943COVER, RAIN SENSOR

main89943-24010iASC10..RHD201711-201804

INTERMITTENT WIPER-WITH(AUTO)

89944TAPE, RAIN SENSOR

main89944-42010iGSC10201409-201510

"VERSION L"&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)

9011906864

main90119-06864

14 parts on this diagram · 1 diagram in section
