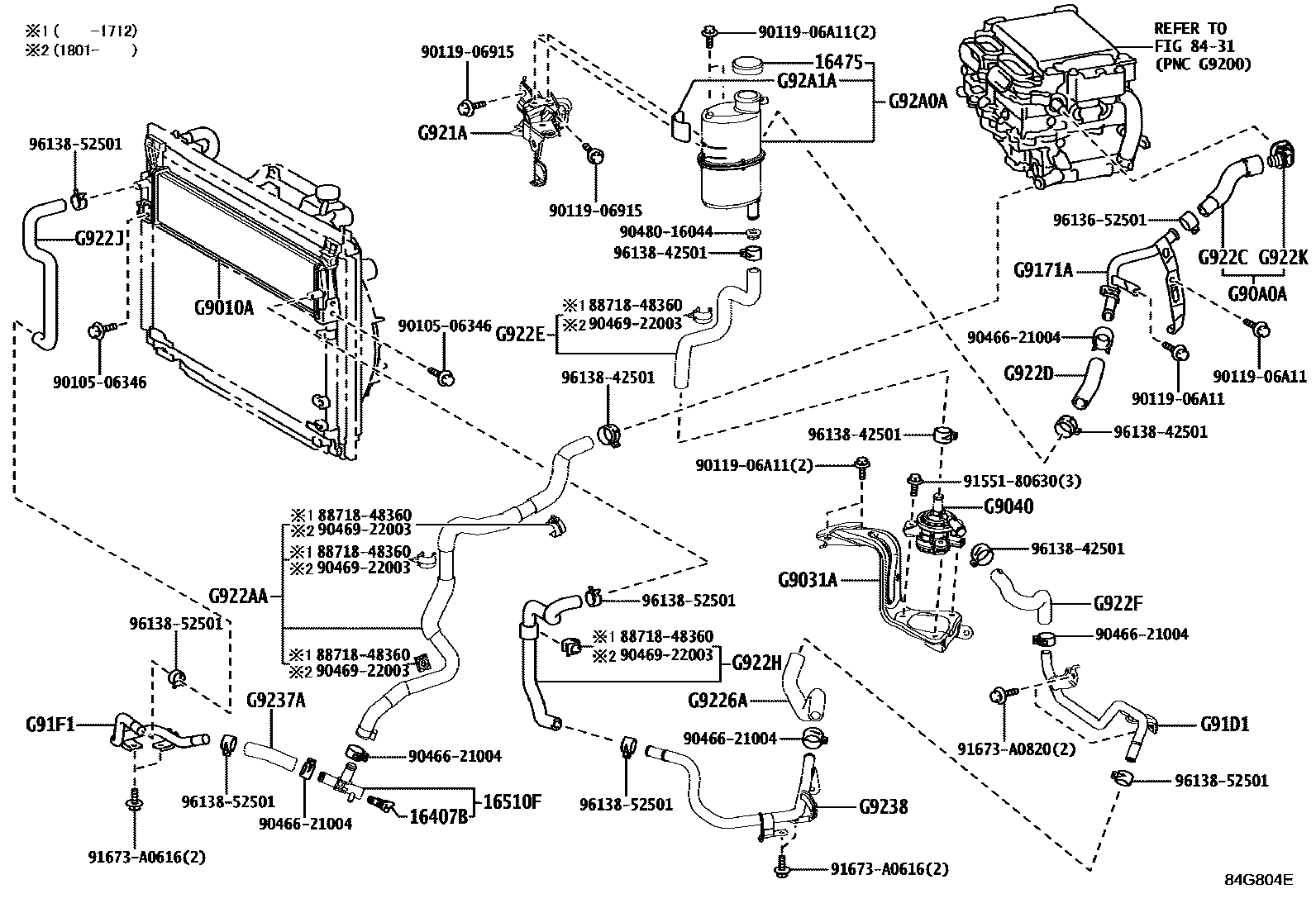

INVERTER COOLING
16407BCOCK SUB-ASSY, RADIATOR DRAIN
16510FCOCK ASSY, DRAIN
8431
G9010ARADIATOR ASSY
G9031ABRACKET SUB-ASSY, HV WATER PUMP
G9040INVERTER WATER PUMP ASSY(W/MOTOR)
G90A0AHOSE ASSY, INVERTER COOLING, NO.1
G9171APIPE, INVERTER COOLING, NO.1
G91D1PIPE, HV WATER PUMP OUTLET, NO.1
G91F1PIPE, HV RADIATOR OUTLET
G921ABRACKET, INVERTER RESERVE TANK, NO.1
G9226AHOSE, INVERTER COOLING, NO.2
G922AAHOSE, INVERTER COOLING INLET, NO.1
G922CHOSE, INVERTER COOLING OUTLET, NO.1
G922DHOSE, INVERTER COOLING OUTLET, NO.2
G922EHOSE, HYBRID WATER PUMP INLET
G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1
G922HHOSE, HYBRID RADIATOR INLET
G922JHOSE, HYBRID RADIATOR OUTLET
G922KCONNECTOR, HYBRID WATER HOSE
G9237AHOSE, INVERTER DRAIN
G9238PIPE, INVERTER COOLING
G92A1ALABEL, HYBRID COOLANT SYSTEM INFORMATION
8871848360PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-48360
9010506346
main90105-06346
9011906915
main90119-06915
9011906A11
main90119-06A11
9046621004
main90466-21004
9046922003
main90469-22003
9048016044
main90480-16044
9155180630
main91551-80630
91673A0616
main91673-A0616
91673A0820
main91673-A0820
9613652501
main96136-52501
9613842501
main96138-42501
9613852501
main96138-52501
38 parts on this diagram · 2 diagrams in section
