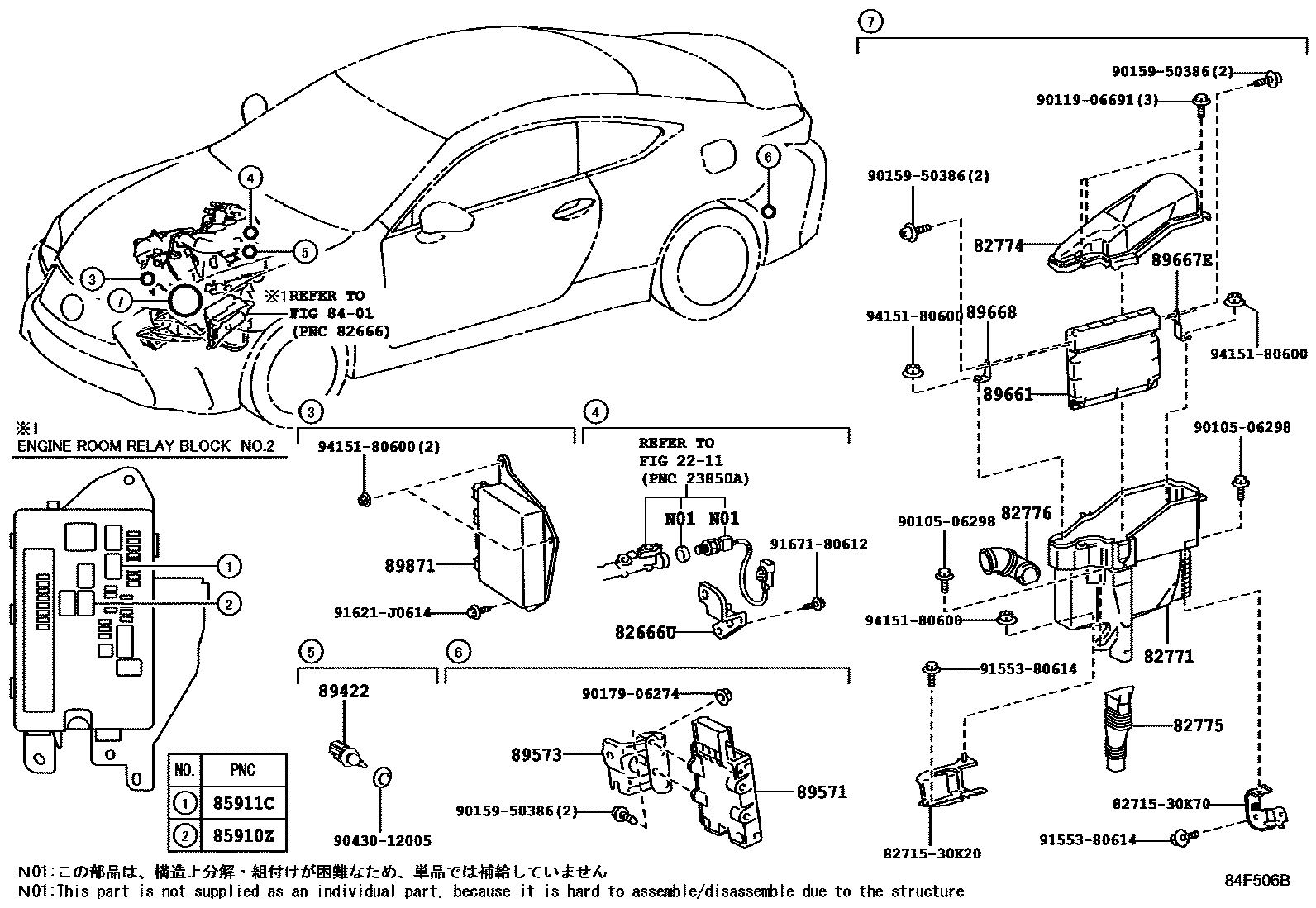

ELECTRONIC FUEL INJECTION SYSTEM
2211
82666UHOLDER, CONNECTOR
82771BOX, ENGINE ROOM ECU
82774COVER, ENGINE ROOM ECU
82775DUCT, ENGINE ROOM ECU INLET
82776DUCT, ENGINE ROOM ECU OUTLET
8401
85910ZRELAY, INJECTION (FOR EFI)
85911CRELAY, EFI 2
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89571COMPUTER, FUEL PUMP CONTROL
89573BRACKET, FUEL PUMP CONTROL COMPUTER
89661COMPUTER, ENGINE CONTROL
DENSO
DENSO
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
8271530K20BRACKET,WIRING HARNESS CLAMP
main82715-30K20
8271530K70BRACKET,WIRING HARNESS CLAMP
main82715-30K70
9010506298
main90105-06298
9011906691
main90119-06691
9015950386
main90159-50386
9017906274
main90179-06274
9043012005
main90430-12005
9155380614
main91553-80614
91621J0614
main91621-J0614
9167180612
main91671-80612
9415180600
main94151-80600
27 parts on this diagram · 4 diagrams in section
